Additional Information for Using Sony Wall-Mount Bracket (SU-WL500)
Step 1: Checking the parts required for the installation
Open the Wall-Mount Bracket package and check the contents for all required parts along with the
Instructions.
Step 2: Deciding on the installation location
Decide where you want to install your TV. Refer to the TV installation dimensions table.
Refer to the Instructions for SU-WL500.

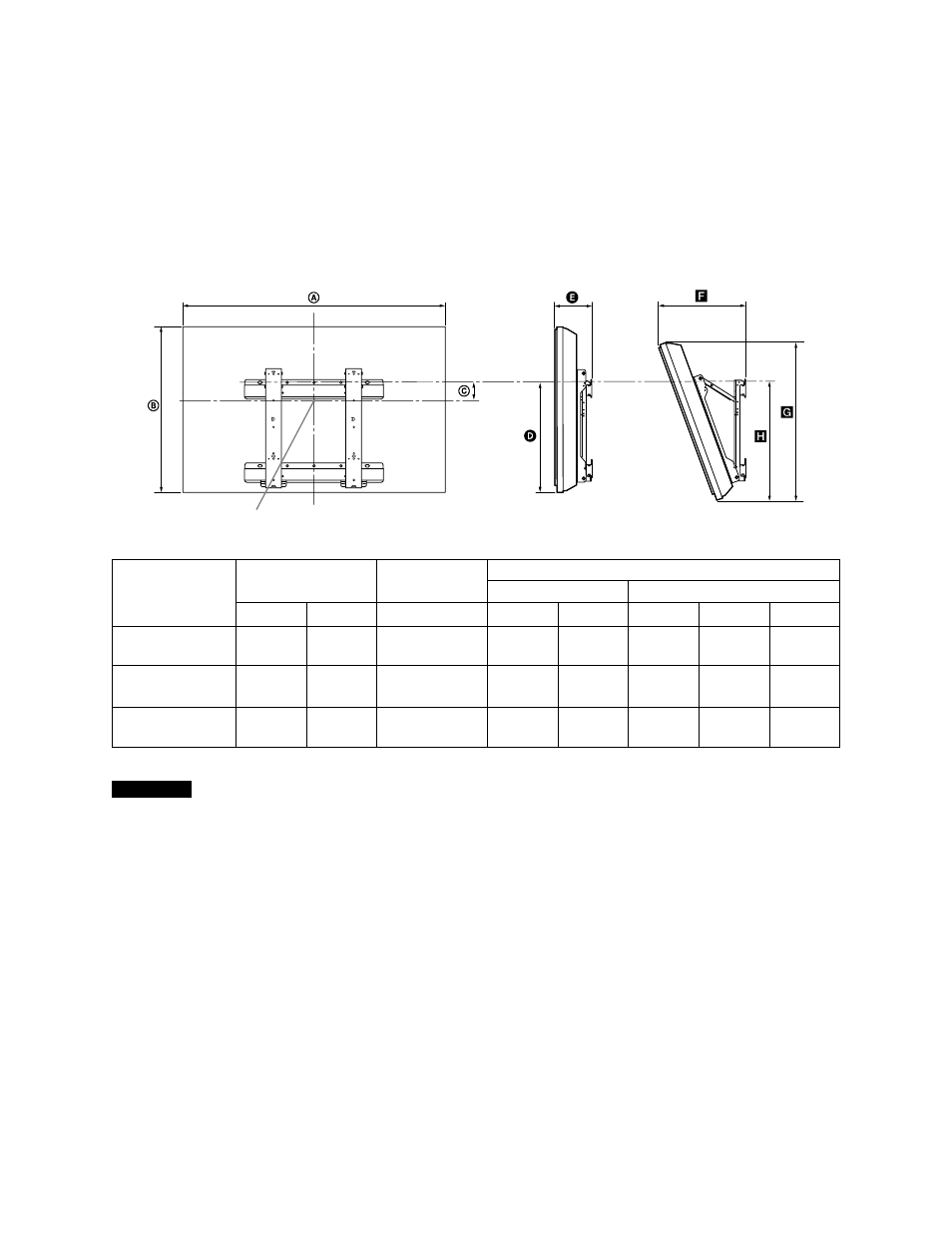

Dimension Table
Screen center point
Unit: inches (mm)
Model Name Display
dimensions
Screen center
dimensions
Length for each mounting angle
Angle (0°) Angle (20°)
       
KDL-32LL150
31 5 /
8
(801)
19 7 /
8
(505)
6 7 /
8
(172)
17
(429)
6 1 /
8
(154)
12
(303)
19 1 /
4
(487)
18 1 /
2
(468)
KDL-32L5000/
KDL-32L504
31 7 /
8
(807)
20
(508)
6 7 /
8
(172)
17
(430)
6 1 /
8
(154)
11 7 /
8
(300)
19 1 /
8
(485)
18 3 /
8
(466)
KDL-37L5000
36 1 /
2
(927)
22 5 /
8
(574)
5 5 /
8
(140)
17 1 /
8
(432)
6 1 /
4
(156)
12 7 /
8
(324)
21 3 /
8
(542)
18 1 /
2
(468)
Figures in the above table may differ slightly depending on the installation.
CAUTION
The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the TV.
Refer to your TV’s operating instructions for its weight.
Step 3: Installing the Base Bracket on the wall
Refer to the Instructions for SU-WL500.
