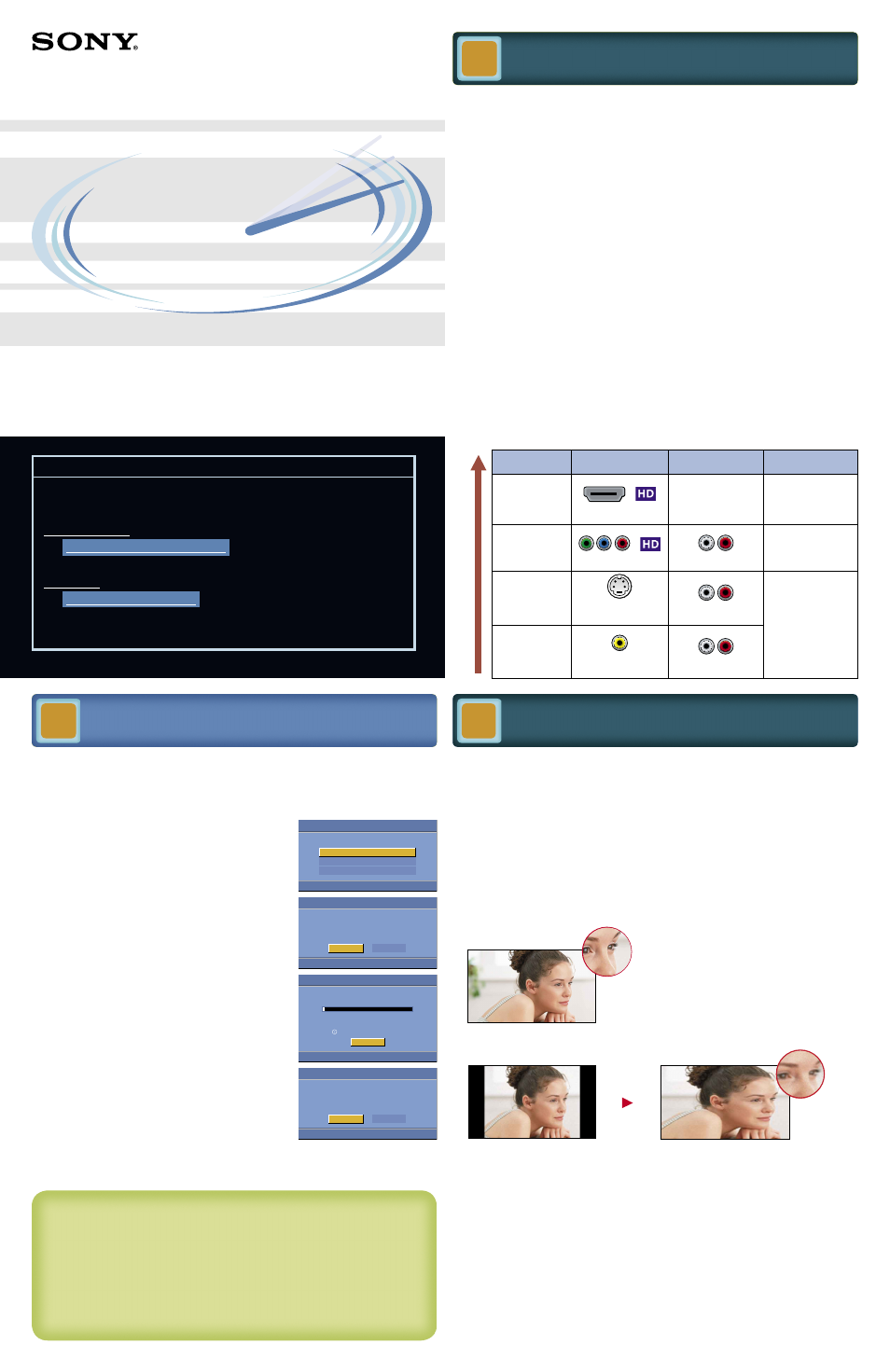

KDL-22L4000

Quick Setup Guide

For further information, see the Operating Instructions Manual supplied with the TV.

Please retain this guide for your future reference.

4-115-439-11(1)

For Your Convenience

Please contact Sony Customer Support directly if you have questions on the

use of your television after reading your Quick Setup Guide and Operating

Instructions Manual.
For United States

http://www.sony.com/tvsupport

or to speak with a support representative: 1-800-222-SONY (7669)

For Canada

http://www.sony.ca/support

or to speak with a support representative: 1-877-899-SONY (7669)

Please Do Not Return the Product to the Store

Initial Setup instructions are displayed on the screen when your BRAVIA® is powered on

for the first time.

Select the language for the OSD (on screen display).

Connect either cable or antenna to your TV (you can

connect both using an A-B RF switch). If you connect

cable, the TV will scan cable channels. After this

scanning, you can search antenna channels as well.

If you have cable and antenna connection available,

please connect cable first.
If you are not using the CABLE/ANTENNA connection

to TV, you can cancel the Auto Program by selecting

Cancel.

If the Initial Setup programming found cable

channels, you will be able to scan antenna channels as

well. Connect the antenna (using an A-B RF switch,

not supplied) and change the switch to antenna, then

start Auto Program to search antenna channels.

If you did not follow the Initial Setup screen the first time you turned on your TV, refer

to your Operating Instructions Manual.

Select Your Content Source

Whether you are watching cable, satellite or broadcast TV; playing a VCR, DVD or Blu-ray

Disc™; or connecting to your PC, you need to choose the correct input using your remote

control:

Press the INPUT button repeatedly until your selection is highlighted on-screen.

Adjust Screen Shape and Aspect Ratio

High Definition and Standard Definition signals are transmitted with different aspect

ratios (the width-to-height ratio of the image).

The 16:9 aspect ratio (common to most HD signals) looks perfect on your BRAVIA®.

The boxy 4:3 aspect ratio (common to most SD signals) must be adjusted to look right.

Press the WIDE button on your remote control to display the Wide Mode setting of

your preference.

Customize Sound and Picture Quality

You can choose optimum sound and picture settings to match the content you are

displaying on your TV:

Press the remote control’s MENU button, highlight and select the Picture or Sound

settings to adjust the picture and sound quality of your content.

Refer to your Operating Instructions Manual for more information on adjusting or

customizing your settings.

■

Watching Your TV

Running Initial Setup

Your New

BRAVIA®

LCD HDTV

Congratulations! Your new BRAVIA® TV opens the door to the “Stunning HD Experience”.

This guide will explain how to get the most from your new High Definition TV.
Please take these steps before you power up your BRAVIA®:

http://www.sonystyle.ca/registration (from Canada)

Make sure you’ve removed all accessory contents from packaging.

Install 2 AA batteries (supplied separately) in your remote control.

Determine whether you will hang your TV on a wall or place it on the Table-Top Stand.

Sony wall-mounting brackets are designed to provide the best fit.

Give your TV 2

inches (6 cm) of space behind it to properly ventilate.

You must get HD programming to experience the

stunning detail of HDTV.

The quality of the image you see on your BRAVIA® can only be as high as the quality of

the signal it is displaying.

Contact your cable or satellite provider to upgrade your service to HD. Receive over-

the-air HD broadcasts with an HD-quality antenna (www.antennaweb.org) and

discover the wealth of entertainment now available on super-high-resolution Blu-ray

Disc™.

To learn more about HDTV, visit:

U.S.A.: http://www.sony.com/HDTV

Canada: http://www.sonystyle.ca/hd

Connecting to Your TV

Your BRAVIA® TV must be properly connected to components such as sound system and

cable or satellite box.

Turn off and unplug all components before making connections.

Do not turn on the TV until connection setup is completed.

See reverse side of this poster for sample connection diagrams.

Input

Connector

Video Connection

Audio Connection

High or Standard

Definition Quality

HDMI

HDMI connection*

HDMI cable carries both

video and audio signals.

(*When HDMI is connected to

DVI with an adapter, a separate

audio L/R is necessary.)

1080p, 1080i, 720p,

480p, 480i, PC

(Compatible with HD or

SD content)

Component

Component connection

Audio L/R

1080i, 720p, 480p, 480i

(Compatible with HD or

SD content)

Video 2

S VIDEO connection

(Use this connector in place of

composite video connector)

Audio L/R

480i
(SD content)

Video 1
Video 2

Composite video

connection

Audio L/R

■
■

■

■
■

■

Audio/V

ideo P

for

manc

Please select your language:

Initial Setup

English

Español

Français

Initial Setup

First please connect cable or antenna.
Allow 50+ minutes for completion.
Start auto program now?

Cancel

Initial Setup

Analog Channels Found: 0
Digital Channels Found: 0

Please wait. Allow 50+ minutes for completion.
Press to cancel.

Cancel

Searching...

Initial Setup

If you want to use air signals,
please connect antenna.
Allow 50+ minutes for completion.

Cancel

To Do List

When the Initial Setup is completed, consider carrying out these items:

Set Closed Captions (CC)

Label Video Inputs

Set Parental Lock

Set Speaker

Show/Hide Channels

For details, refer to your BRAVIA® Operating Instructions Manual.
