Page 14
14

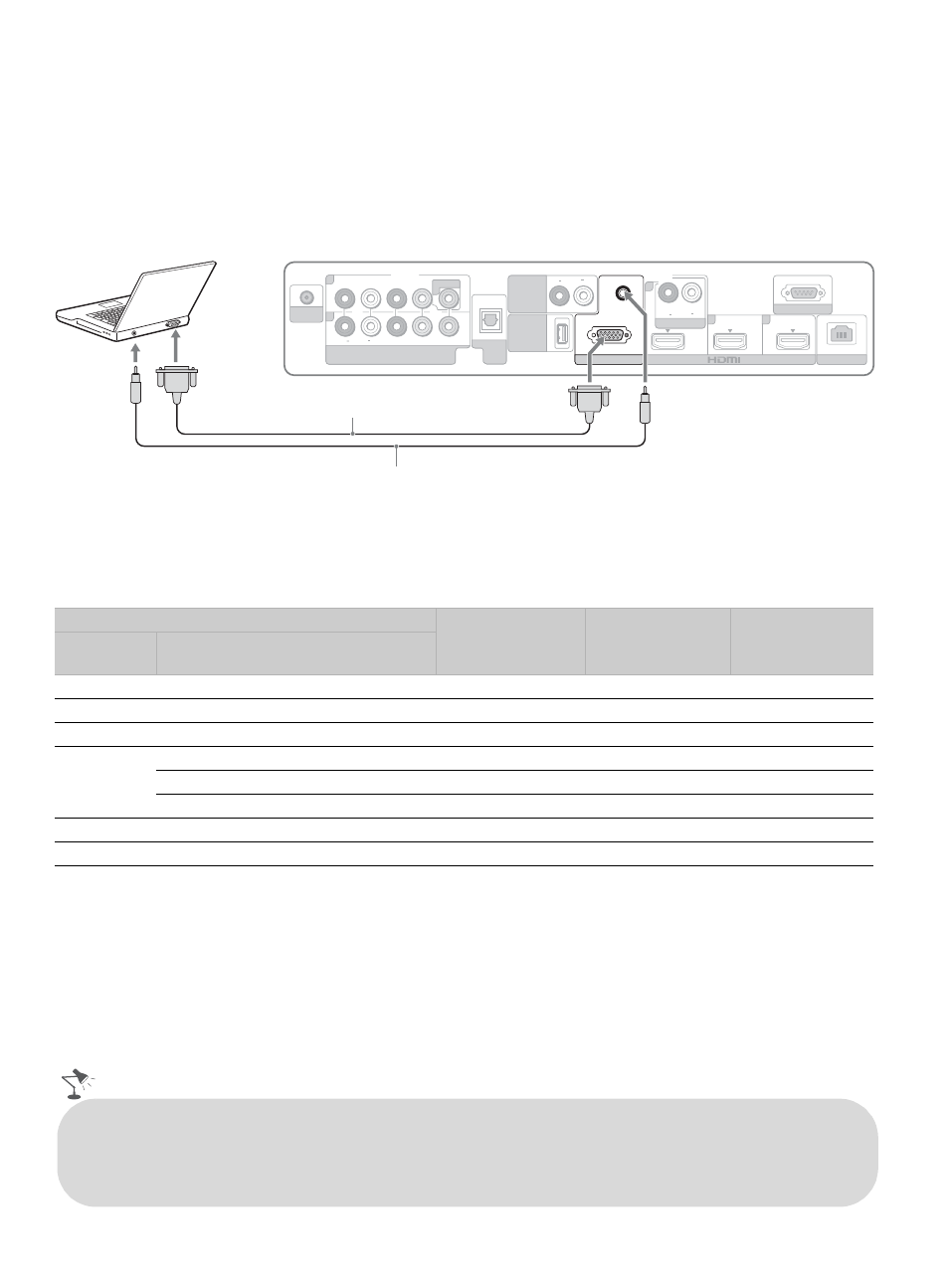

Shown with PC connection
Use this unit as a monitor for your PC by connecting an HD15-HD15 cable connection as shown
below.
This unit can also be connected to a PC with a DVI or HDMI output. (Refer to the supplied Quick
Setup Guide.)
PC Input Signal Reference Chart
After connecting the PC to the unit, set the output signal from your PC according to the supported
resolutions and timings indicated below.
~
• This unit’s PC input does not support Sync on Green or Composite Sync.
• This unit’s PC VGA input does not support interlaced signals.
• For the best picture quality, it is recommended to use the signals in the above chart. In plug and play, signals
with a 60 Hz vertical frequency will be detected automatically. (PC reboot may be necessary.)
* The 1080p timing when applied to the HDMI input will be treated as a video timing and not PC timing. This
affects Picture settings and Wide Mode settings. To view PC content set Scene Select to Graphics,
Wide Mode to Full, and Display Area to Full Pixel.
Supported resolutions
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
Standard
Signal
Horizontal
(Pixel)
×
Vertical
(Line)
VGA
640
×
480
31.5
60
VGA
SVGA
800
×
600
37.9
60
VESA Guidelines
XGA
1,024
×
768
48.4
60
VESA Guidelines
WXGA
1,280
×
768
47.4
60
VESA
1,280
×
768
47.8
60
VESA
1,360
×
768
47.7
60
VESA
SXGA
1,280
×
1,024
64.0
60
VESA
HDTV*
1,920
×
1,080
67.5
60
CEA-861*
AUDIO OUT
(VAR/FIX)
DMe
x
/
SERVICE
P
R
P
B
Y
AUDIO
R
L
VIDEO IN
1
RGB
AUDIO
CABLE/
ANTENNA
COMPONENT IN
(1080p/1080i/720p/480p/480i)
(OPTICAL)
DIGITAL
AUDIO
OUT
1
3
4
2
PC IN
IN
LAN
REMOTE
1
AUDIO IN
AUDIO
R
L
AUDIO
R
L
Rear of media receiver
HD15-HD15 cable (analog RGB)
Audio cable (stereo mini plugs)
• Connect the PC IN jack to the PC using an HD15-HD15 cable with ferrite core (analog RGB) and
audio cable (see page 11).
• The unit enters the standby mode automatically when the PC is connected to the unit and no signal
has been output from the PC for more than 30 seconds, see the online Reference Book for details.
