Nstallation – Antec CP-1000 User Manual
Page 5
+12
V
OLT
R
AIL
D
ISTRIBUTION

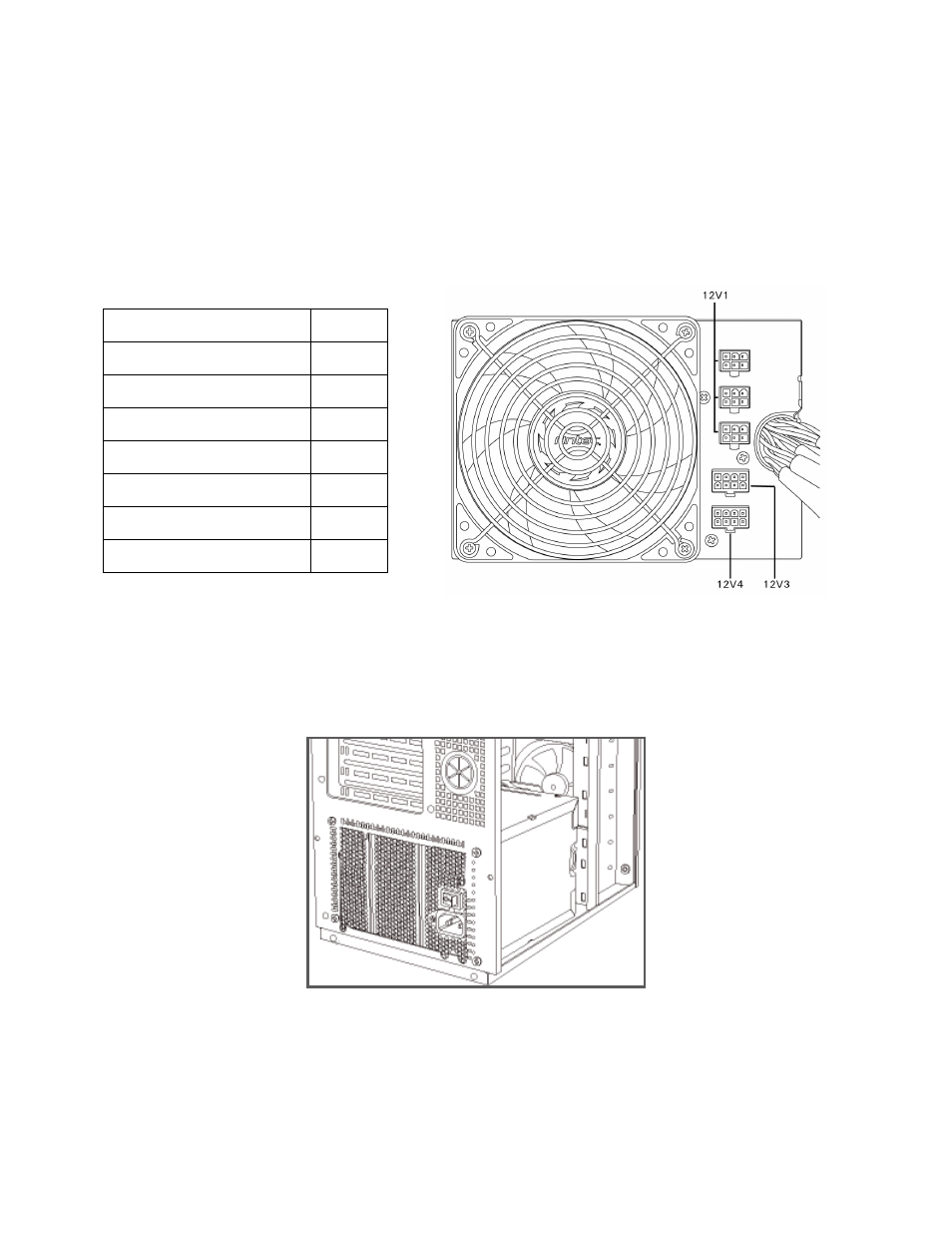

The CP-1000 uses four separate +12
volt power rails. Different connectors are hooked up to separate circuits to aid
in the balanced distribution of power between devices in your computer. The engineers have allocated the rails to
different connectors, as shown in Table 3, to prevent voltage sags in one device due to sudden demands for power
by another device.
T
ABLE
3
I
NSTALLATION
:
1.
Remove the standard PSU adapter from the Antec case to allow the larger PSU to fit.
2.
Install the CP-1000 PSU into your case with the four screws provided.
PSU Direct Cabling Connector
+12V Rail
(20+4) Motherboard
1
4+4-pin ATX12V, EPS
2
8-pin EPS12V
2
PCI-E w/ blue stripe
3
PCI-E w/ green stripe
4
Molex cable from PSU
1
SATA cable from PSU
1
