Sony KV-36FS200 User Manual
Front view, Fs100) rm-y, Remote
KV-36FS100/200
MODEL:
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT:
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT:
POWER
REQUIREMENTS:
POWER
CONSUMPTION:
36" Wega
®
Monitor/Receiver
38 3/4 "x 30 1/2" x 25"
220 lbs 7 oz
120VAC
60Hz
230w
1w(stby)
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .

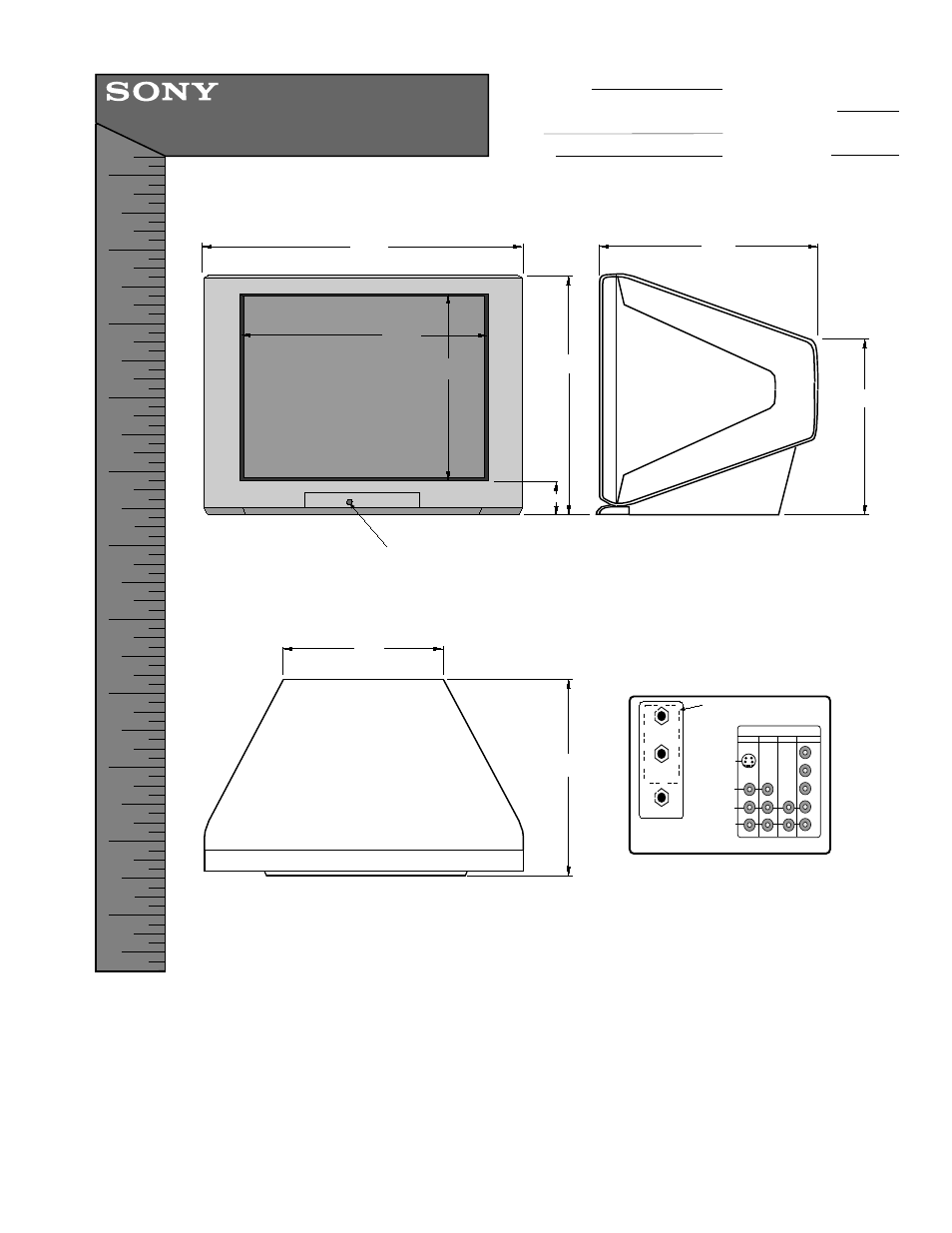

FRONT VIEW
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 930 7891 • b2b.sel.sony.com
(FS100) RM-Y
180
REMOTE
38 3/4"
30 1/2"
SIDE VIEW
TOP VIEW
REMOTE
SENSOR
29 1/2 "
22 1/4"
JACK PACK
5 "
(FS200) RM-Y
181
REMOTE
Video
VIDEO IN
Audio
L
MONO
R
S Video
1
AUDIO
OUT
COMPONENT
IN
Y
Pb
Pr
AUX
3
CONV
OUT
VHF/UHF
FS200 ONLY!
22 1/2"
24 "
15 "
25"
S
P
E
A
K
E
R
S
S
P
E
A
K
E
R
S
OPTIONAL STAND SU-36FS1
