American DJ FSR-800 - Manual

American DJ
®
LOS ANGELES, CA. 90058
Thank you for purchasing this American DJ® product. For your convenience this
product has been tested and is ready to be used, there is no assembly required.
Please read the following instructions before installing or using your new unit.
Product Description:
Hassle free, easy-to-use lighting controller! The FSR-800™, 8 channel foot switch controller is similar to the American
DJ®, SC-8FC™. Foot switch pedals turn lights ON/OFF, FULL ON, CHASE, & BLACK OUT. The FSR-800™ is used in the
FSR-8/System™ with up to two SC-RP8’s™, 8 channel relay pack. The FSR-8/System can also control two PP-15 or
BPP-20™ power packs; and the CC-2016™, chase controller (all sold separately). Great for bands, mobile DJ’s, stage and
theatrical performances, and club systems. Max Load: 15A or 1800W per SC-RP8™,relay pack (using separate circuit for
each).
Operating Instructions:
Follow FSR-8/System™ instructions when using the FSR-800™. Each of the 8 pedal switches on the front of the FSR-800™
control ON and OFF of that particular channel. Red LED indicates which channels are ON. The FSR-800™ will carry 10A per
channel or 15A maximum load with circuit breaker. Red LED power indicator will be on when FSR-800™ is plugged into
power. For service, contact your American DJ® dealer.
Caution! Always disconnect the FSR-800™ from main power before servicing unit, there may be high voltage
inside console. Remember to always replace with same fuses.
American DJ
®
User
Instructions
SPECIFICATIONS:
Voltage: 120V/ 60Hz Weight: 7 lbs. Size: 17.75” x 6.75” x 2.5”
Maximum Load: 15 AMP or 1800W per SC-RP8 (using separate
circuit for each). Output: 10 amps per channel
FSR-800
™
8 way foot control

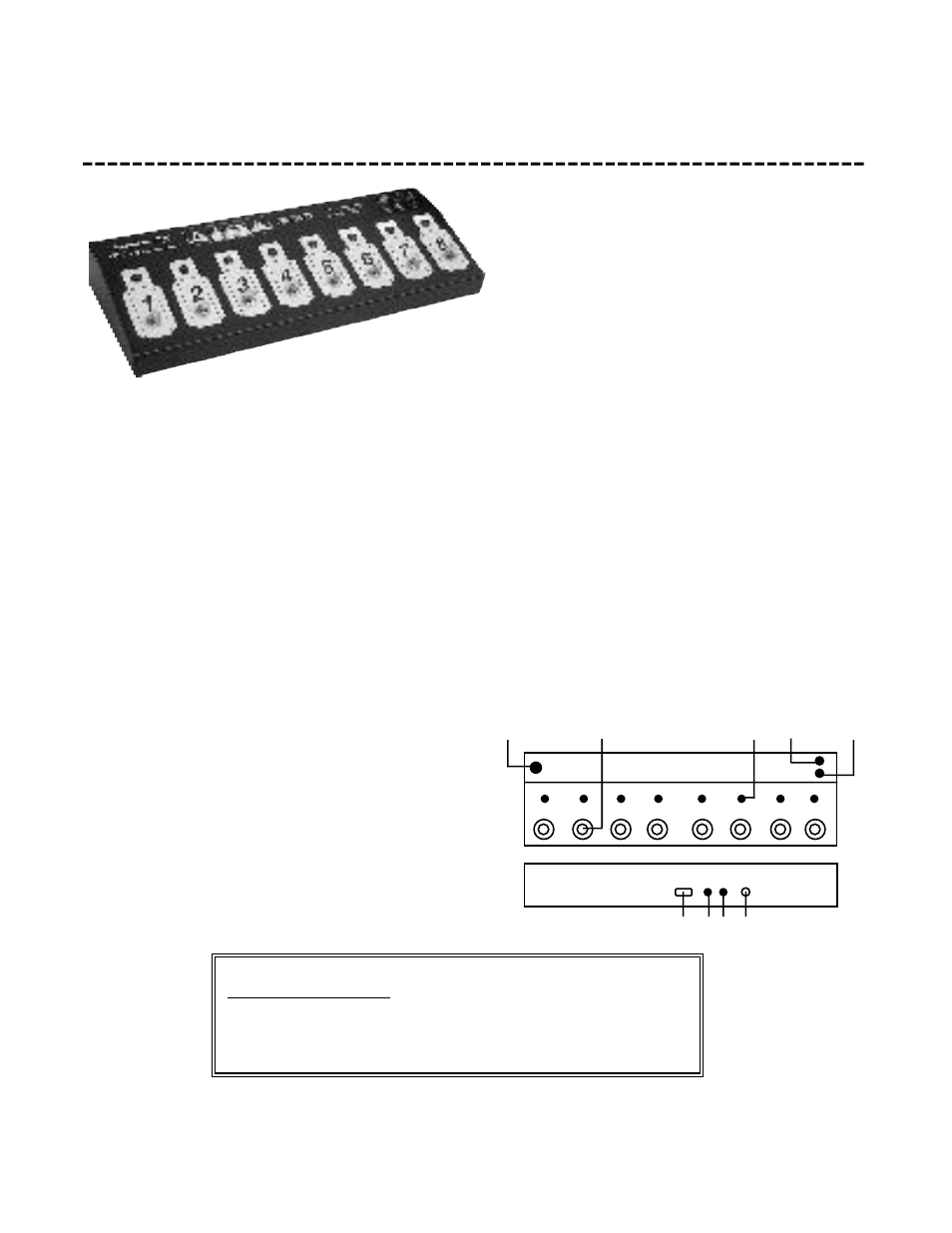

FSR-800™ CONTROLS AND COMPONENTS:
1. INDIVIDUAL CHANNEL SWITCHES.
2. CONTROL SWITCH FOR CC-2016, FEATURES “ALL ON”,
“CHASE”, & “BLACKOUT”.
3. RED LED - INDICATES WHICH CHANNELS ARE “ON”.
4. POWER INDICATOR - RED LED IS “ON” WHEN
CONNECTED TO POWER.
5. FUSE - 5A
6. 1/4” STEREO OUTPUT TO CC-2016.
7. 2 x 8 PIN LINE OUT FOR POWER PACKS (IE ADJ PP-15
OR BPP-20).
8. 9 PIN LINE OUT FOR SC-RP8.
2
1 2 3 4 5 6 7 8
1 3 4 5
6 7 7 8
FSR-800
FSR-800
TOP VIEW
REAR VIEW
