8
C:\Users\norman\Desktop\Group W\4267385141_US\US03STU.fm
KDL-EX523/EX521/EX520
4-267-385-14(1)
B KDL-40/32EX521 (Latin American
countries models)
~

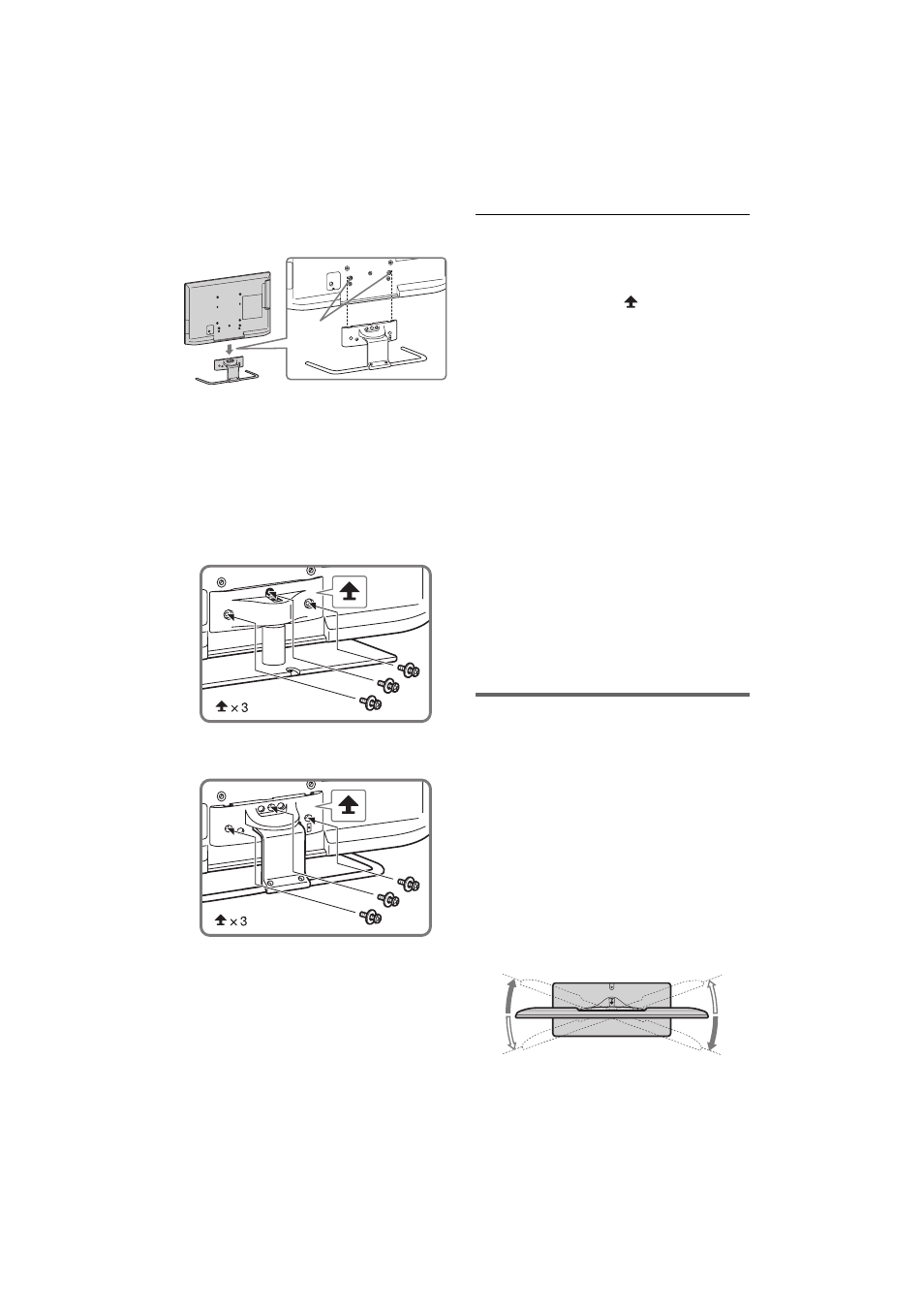

• Align the TV from the top, slide it in until the
guide pins cannot be seen.
2
Use the supplied screws to attach the
TV unit to the Table-Top Stand.
B KDL-46/40/32EX52x (except
KDL-40/32EX521 (Latin American
countries models))
B KDL-40/32EX521 (Latin American
countries models)
~
• If you use an electric screwdriver, set the
torque at approximately 1.5 N·m {15 kgf·cm}.
Detaching the Table-Top
Stand from the TV
To detach the Table-Top Stand from the
TV, remove the screws
fixed in step 2.
~
• Do not remove the Table-Top Stand for any
reason other than to install corresponding
accessories on the TV.
• When removing the Table-Top Stand from the
TV, lay the display face down on a stable work
surface that is larger than the TV.
• To prevent damaging the surface of the LCD
display, make sure to place a soft cloth on the
work surface.
• When installing the TV on a wall, remove the
screws from the rear of the TV. The screws and
number of screws depends on the TV model.
(They are fastened in the screw holes for wall
mounting.) Be sure to store the removed
screws in a safe place, keeping them away
from children.
• When attaching the Table-Top Stand again, be
sure to fasten the screws (previously removed)
to the original holes on the rear of the TV.
2: Adjusting the viewing
angle of the TV
This TV can be adjusted within the angles
as illustrated.
Angle adjustment (Swivel)
~
• When adjusting the angle, hold the stand with
one hand to avoid having the stand slip or TV
tip over.
B KDL-46/40/32EX52x (except
KDL-40/32EX521 (Latin American
countries models))
Guide
pins
20°
20°
20°
20°
