NOTE: Any of the three transmitter buttons can be programmed to

activate the door. In multi-door installations, each button can be

programmed to activate a separate door. Only one button at a time

(per-transmitter) can be programmed to activate a door.
To program the transmitter:
1. Place the emergency disconnect handle in the manual door

operated position. This is for safety reasons.
2. Press program button on Wayne Dalton DoorMaster™ light fixture,

idrive®, prodrive™, Quantum™ or Classicdrive™ operator. LED will light

or idrive® operator will beep once indicating that it is ready to learn a

transmitter.
3. Within 30 seconds, press and hold the desired transmitter button(s);

LED will turn off or idrive® operator will beep once. On the DoorMaster™

only, release the transmitter button and press again. LED will light briefly

then turn off.
4. Return the emergency disconnect handle to motor operated

position.
5. Press same transmitter button(s) again; door should operate.
Transmitter is now programmed to operator.
6. To OPERATE, press the transmitter button.
NOTE: idrive® model only: The first transmitter command after

programming will only open the door through a six inch up/down cycle.

Normal door operation will then occur on all subsequent transmitter

commands.

Glossary

Copy

– See Replicate.

Delete

– Erase transmitter or SCENE information from Controller. Also known as Exclude.

Device

– Any item that is connected to a module (for example, lamps).

Exclude

– Remove a module from the controller.

Include

– Add a module to the controller.

Module

– Any ASPIRE RF or Z-Wave™ product that is controlled with a ASPIRE RF or Z-Wave™ remote

controller. A module can be part of more than one scene.
Network

– A collection of devices controlled by primary or secondary controllers operating on the same

system. A network has its own unique identification code so that no one else can control the system.
Operator

– Garage Door Opener

Primary Controller

– The first controller used to set up your modules and network. NOTE: Only the Primary

Controller can be used to include or delete modules from a network. It is recommended that you mark

the primary controller for ease in modifying your network.
Replicate

– Copy from one controller to another.

Scene

– A scene is a series of Z-Wave™ devices programmed to turn to a specific level (on, off, dim) with

the push of a button on a controller.
Secondary Controller

– A controller containing network information about other modules within the

network, and is created FROM the primary controller. Secondary controllers cannot include or delete

modules to the network.
Transmitter

– Garage Door Opener transmitter.

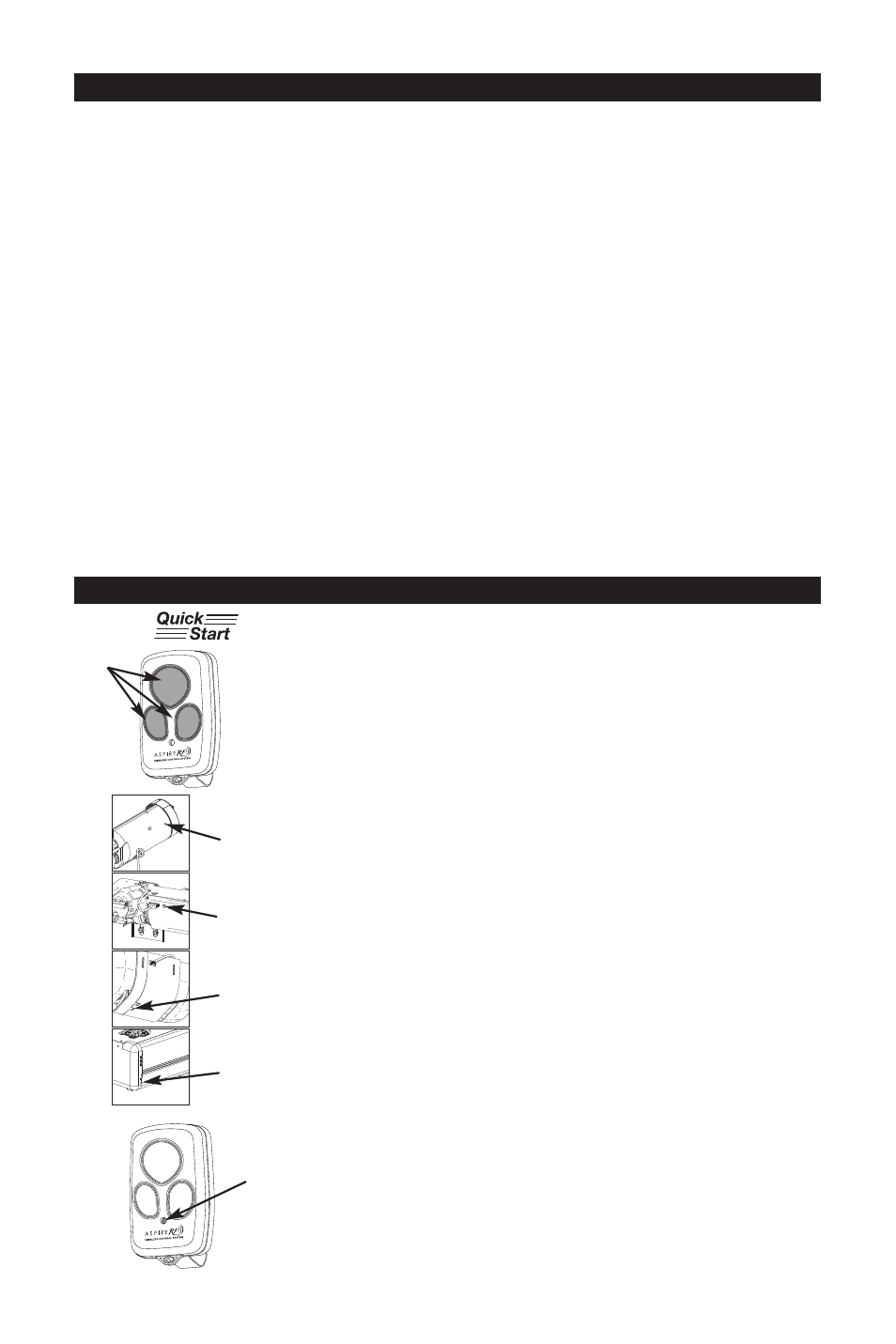

Programming To Operate

3

Transmitter

Buttons

Program

Button

Program

Button

Program

Button

Program

Button

Red

Light
