Installation
Dolby* Pro Logic Surround normally requires 5 speakers.
Centre speaker (incorporated in the TV set) to anchor the stable sound image such as dialogues to the TV screen.
Left and right front speakers (incorporated in the TV set) for the normal two channels or stereo broadcasts.
Surround speakers (supplied) for the special effects created by the surround channel.

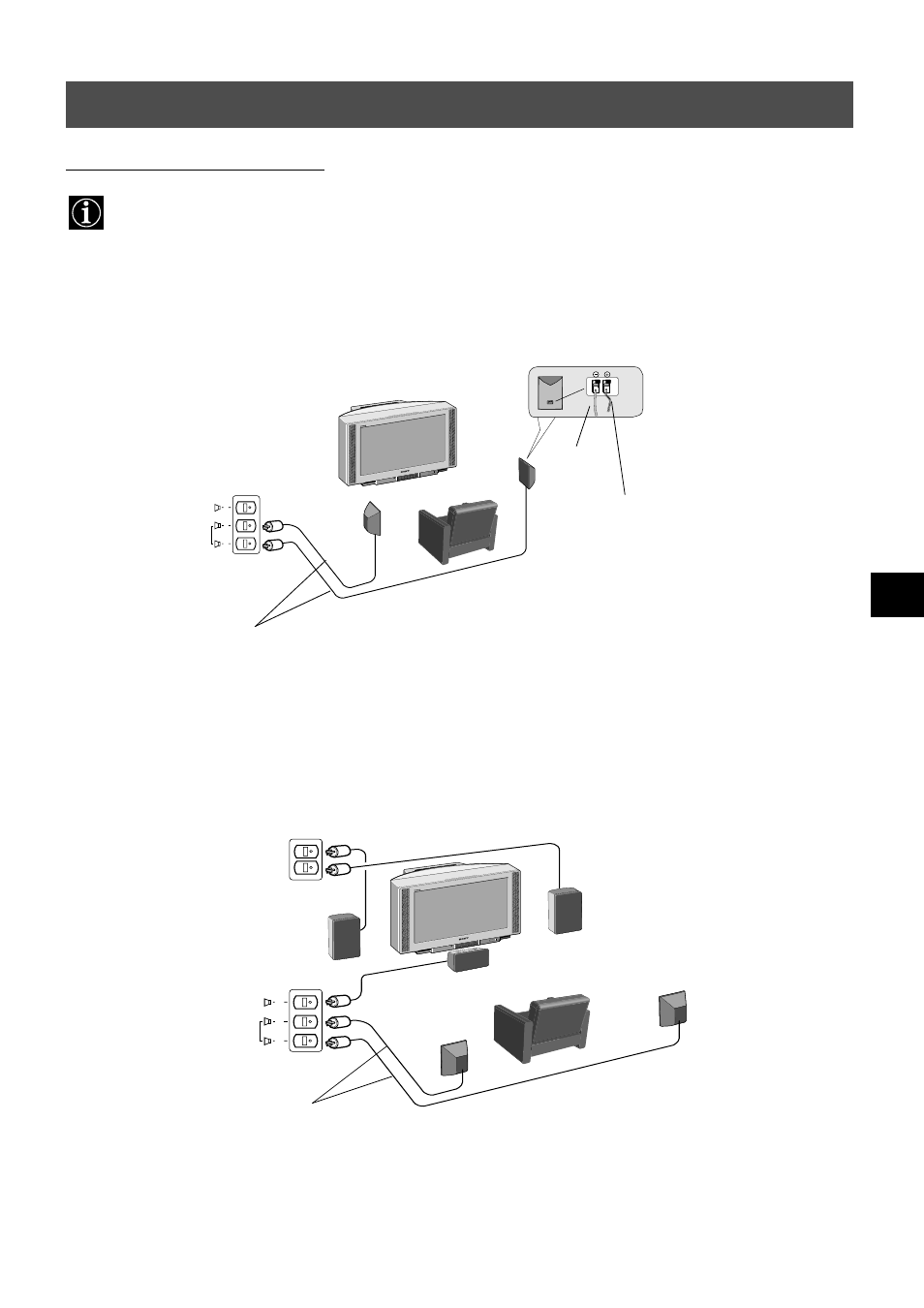

Connecting the supplied speakers
Connecting your own speakers
(Make sure the speakers have at least 8 ohms impedance and are magnetically shielded. Otherwise you may get picture
distortions).
*Manufactured under licence from Dolby Laboratories Licensing Corporation. Dolby, ProLogic and the double-D symbol are
trademarks of Dolby Laboratories Licensing Corporation.
3. Connecting the TV
Connecting the speakers
S
C
S
R/D/D/D
L/G/S/I
right speaker
left speaker
surround speakers
S
C
S
surround speakers
black
lead
black/
white
lead
