Page 11
USE#12GAUGE
WIRE (SEE TEXT)
CAR STEREO

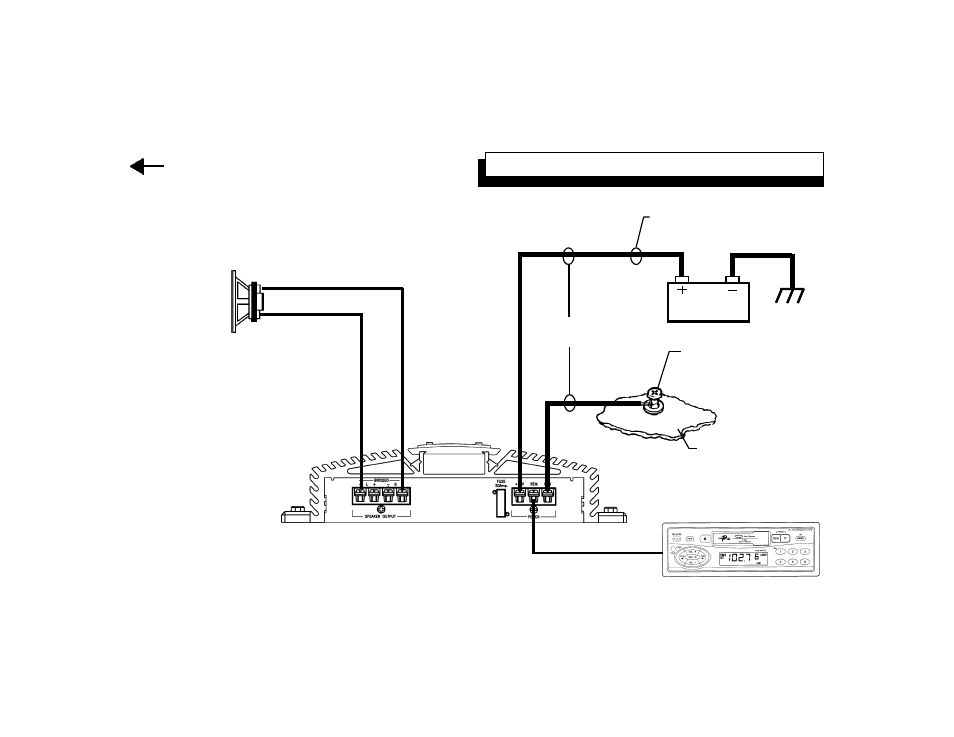

MONO (BRIDGED) OUTPUT WIRING DIAGRAM
+
-
MONOSPEAKER
OR
SUB-WOOFER
4 - 8 OHMS
12 VOLT
VEHICLE
BATTERY
AUTO-ANTENNALEAD
CHASSIS
GROUND
-9-
USE THIS OUTPUT WIRING WITH
INPUT WIRING ON PAGE 8
CONNECTTHIS
WIRE LAST
EXISTINGSCREWORBOLT
CLEAN PAINT, RUST, DIRT
OR GREASE FROM AREA
FORGOODCONNECTION
GROUNDEDMETAL
SECTIONOFVEHICLE
