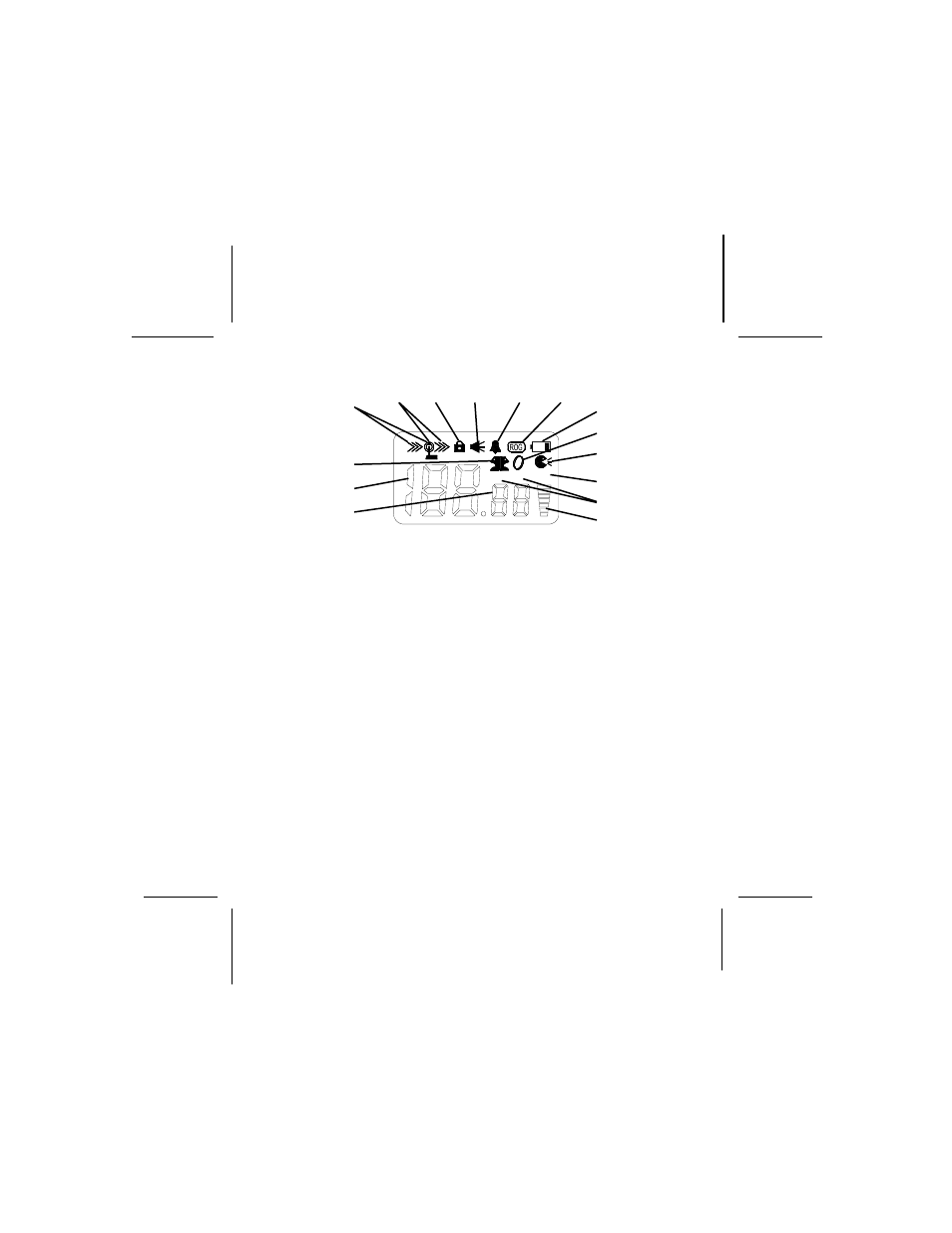

Model GMRS600SCH Display
1.
Small Segment Display: Displays the CTCSS tone option for
each main channel from 01-38.
2.
Large Segment Display: Indicates the channel number in use.
3.
Dual Watch Mode Indicator: Indicator appears when dual watch
mode is active.
4.
Signal Receive Indicator: Busy icon appears when a signal is
being received.
5.
Signal Strength Indicator: Icon appears when a signal is being
transmitted.
6.
Key Lock Indicator: Icon appears when the keypad is locked.
This function disables keys such as channel up/down, SCAN and
MODE.
7.
Monitor Indicator: Icon appears when the Monitor (M) button is
pressed and the channel monitor function is activated.
8.
Beep Tone Indicator: Icon appears when beep button confirma-
tion tone is selected; icon disappears when tone is off.
9.
Roger Beep Tone On/Off Indicator: This icon appears when the
Roger Beep tone is on, and disappears when tone is not in use.
10.
Battery Level Indicator: Icon indicates when the battery is in
lower level.
