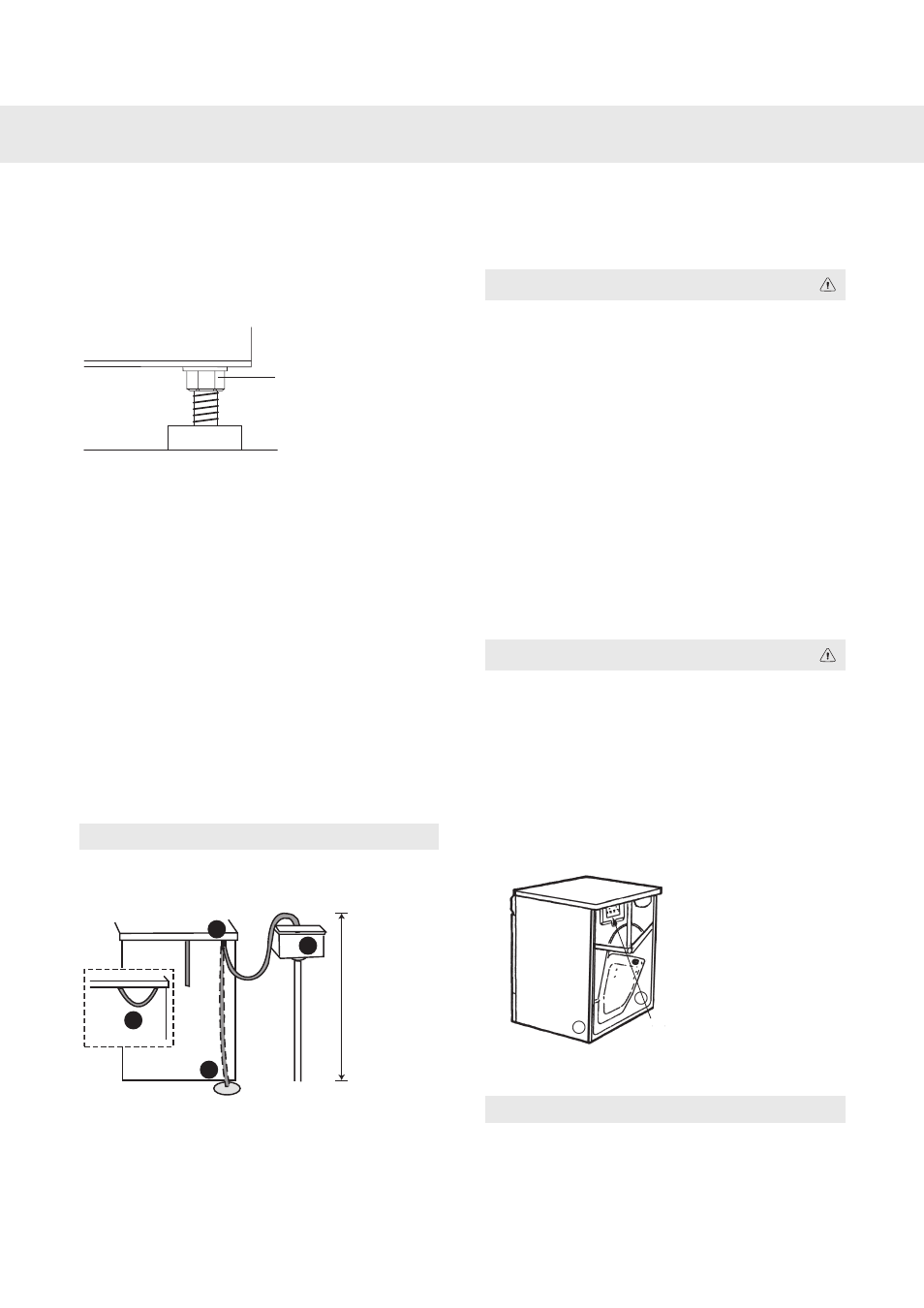

Adjusting the feet
Screw the feet in or out so that the tumble
dryer is steady and balanced on the floor or
on the washing machine. Then tighten the
lock nuts.
Lock nut
Condensed water
Install the dryer so the condensed water will
continuously flow into a drain or sink. To do
this, follow the instructions below:
1. Disconnect the short hose (1) from the blue
connection. (It’s okay to let the hose hang
down.)
2. Connect the rubber hose supplied with the
dryer to the blue nipple (2).
3. Run the hose to a drain or sink, as illustrat-
ed (3).
Note
The drain hose must not be more than 40”
above the floor.
1
3
2
3
Maximum
height 40"
Electrical installation
The machine should only be connected to a
grounded wall socket.
Warning!
This appliance must be properly grounded.
Refer to the “Important Safety Instructions”
for grounding instructions.
The power supply cord must be grounded. If
the machine is to be used in a wet area, the
supply must be protected by a residual current
device.
Connection to a permanently wired supply
point must be made only by a qualified electri-
cian.
As supplied:
Single-phase,
230 V, 60 Hz, 1950W heater rating 30 A circuit
required
Warning!
The receptacle on the rear of the machine is
designed to accommodate ASKO washers
ONLY (rated 208–240 V.) To use this recep-
tacle, you must use the ready-fitted plug
supplied with the washing machine or an
equivalent.
ASKO washers rated 208–240 V have two
internal fuses of 15 A each.
Remove cover to access terminal
box. (Requires a 20-Torx screw-
driver.)
Note
In Canada, the dryer is delivered ready-fitted
with a four-prong plug intended for connection
to a single-phase supply.
