ASUS MEW-AM User’s Manual
23

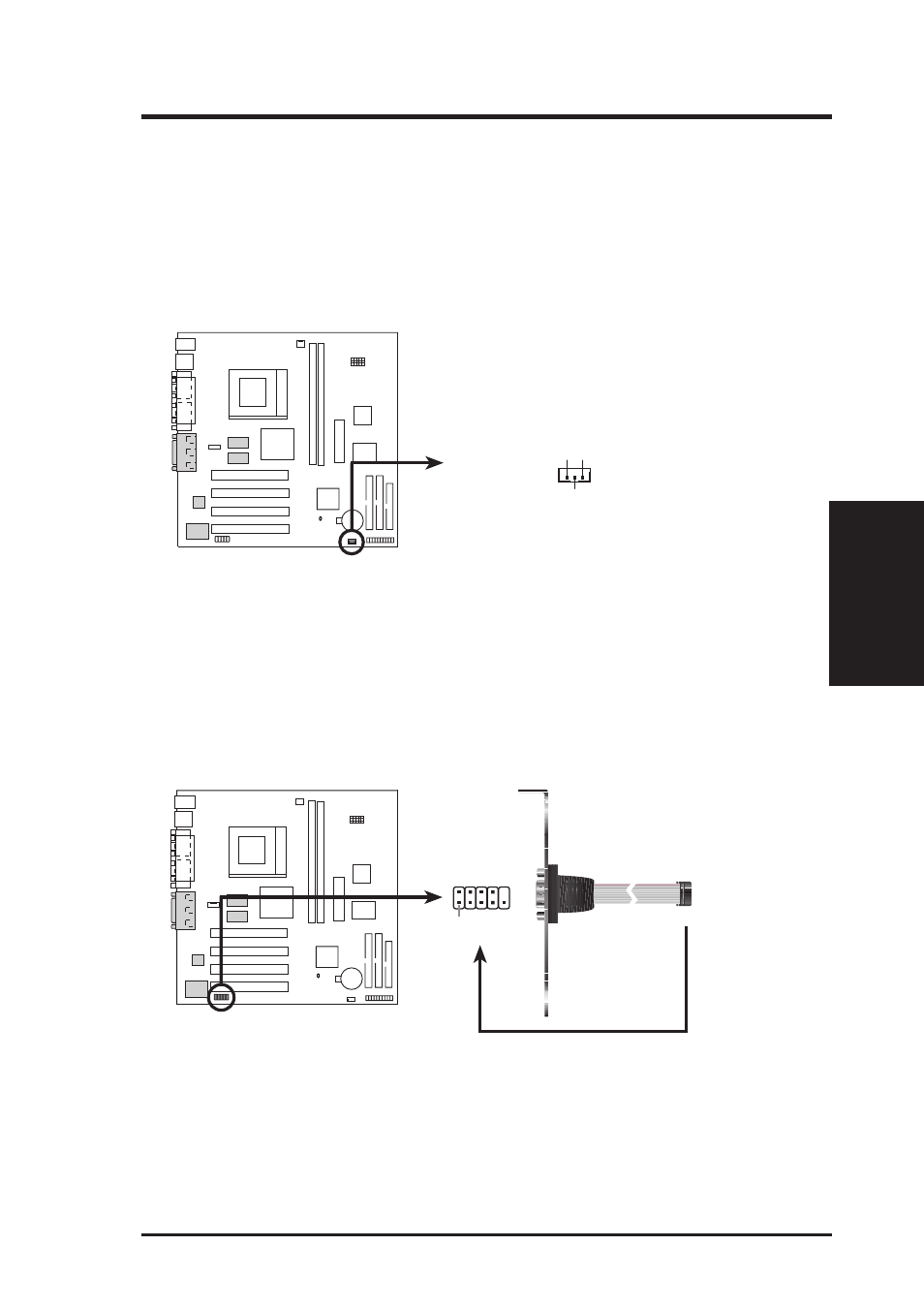

11) Wake-On-LAN Connector (3-pin WOL_CON)
This connector connects to a LAN card with a Wake-On-LAN output, such as
the ASUS PCI-L101 Ethernet card. The connector powers up the system when a
wakeup packet or signal is received through the LAN card.
IMPORTANT: This feature requires that your system has an ATX power sup-
ply with at least 720mA +5V standby power.
1
MEW-AM
MEW-AM Wake-On-LAN Connector
IMPORTANT: Requires an ATX power
supply with at least 720mA +5 volt
standby power
+5 Volt Standby
PME
Ground
12) Serial Port COM 2 Header (10-1 pin COM2)
The optional serial port bracket can be used to add an additional serial port for
additional serial devices.
to COM2 Header
MEW-AM Serial COM2 Bracket
Pin 1
1
MEW-AM
3. HARDWARE SETUP
Connectors
3. H/W SETUP
