The boundary layer microphone shall have a cardioid pattern
and shall fit within a rectangular envelope given by:
3.8 x 2.6 x 0.8 in. (97 x 67 x 20 mm). The sensitivity of the
microphone shall be no lower than 30 mV/Pa, and total harmonic
distortion (THD) at an operating level of 115 dB shall be no greater
than 1%. The equivalent noise level of the microphone shall be no
greater than 27 dB-A. The microphone’s frequency response shall
be flat from 200 Hz to 20 kHz, with a broad 5 dB peak in the 3 to 4
kHz range. Response below 200 Hz shall roll-off at a rate of 12 dB
per octave. The microphone shall operate on phantom power over
the range from 9 to 52 volts dc. The microphone shall be the AKG
Acoustics Model C 680 BL.

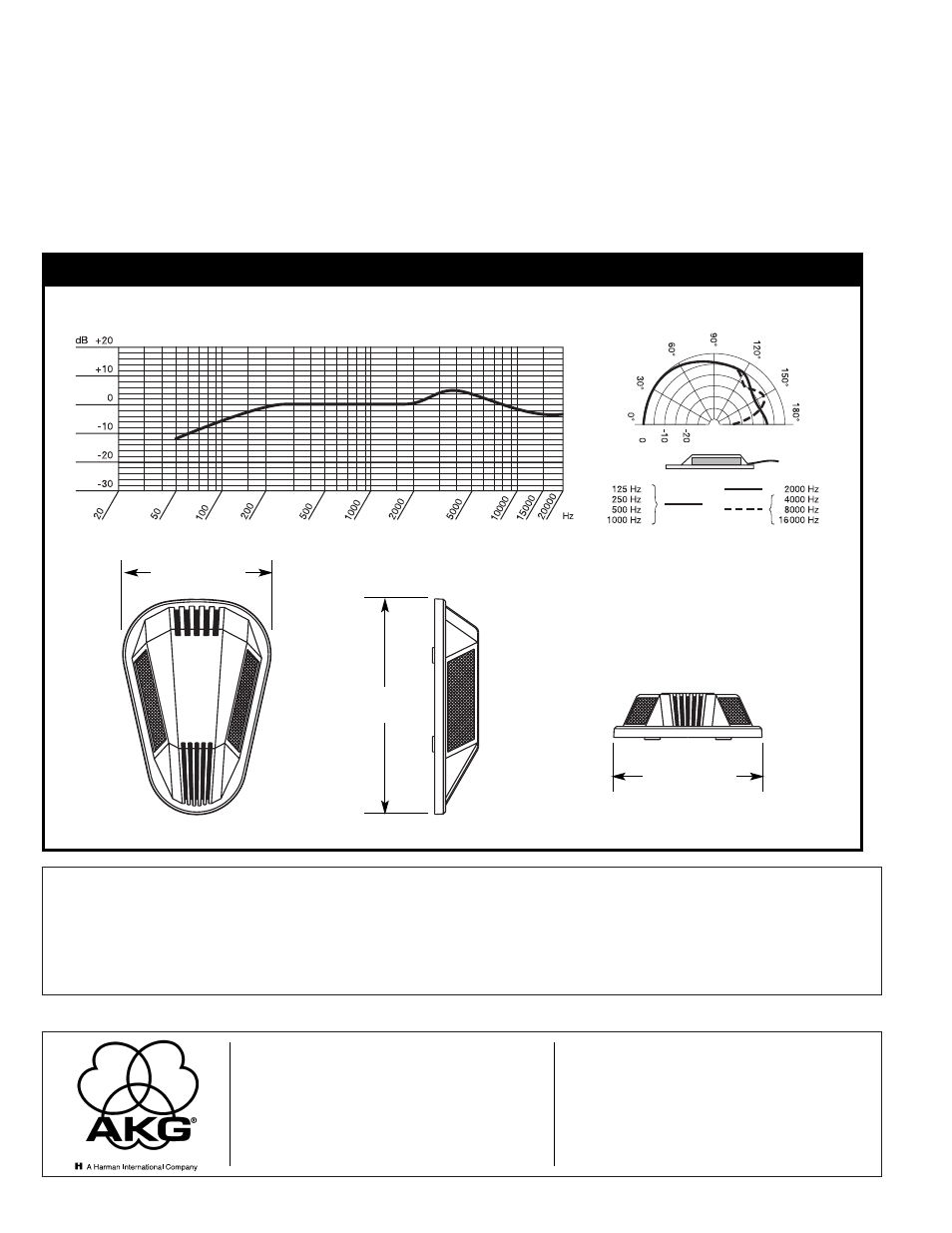

Graphical Data
Architects and Engineers Specifications
DS-C 680 BL
3.8 in.
(97 mm)
2.6 in. (66 mm)
2.6 in. (66 mm)
