Page 4: Dimensions

PROGRAMMING:
See programming instructions included with the required XP-KIT Programming Starter Kit (sold separately).
Note: Do not attempt to program or use the JF-DVF-XP door station without first reading the
initialization instructions included with the XP-KIT Programming Starter Kit!
CARD READER:
Power Source:
12V DC
Current Requirements:
40mA (Avg)
Terminations:
Color-coded pre-wired pigtail
Operating Temperature:
-10°~60°C / 14°~140°F
Operating Humidity:
0-95% relative humidity
non-condensing
SPECIFICATIONS:
DOOR STATION:
Power Source:
JF-2MED master
Camera unit:
CCD Camera
Scanning line:
525 lines
Min. illumination:
5 Lux at 1' or less
Terminations:
Screw terminals
Operating Temperature:
-10°~60°C / 14°~140°F
Wiring Distance:
330ft w/ 87180250C wire
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
Pg. 4
JF-DVF-XP Instr.
0609JD
FCC WARNING:
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference that may cause undesired operation.
·
For proper regulatory compliance, the drain wire should be disconnected at the
power supply end of the cable.
·
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
·
The Reader is intended to be powered from a limited power source output of a
previously certified power supply.
TOLL FREE TECHNICAL SUPPORT:
(800) 692-0200
E-MAIL: [email protected]
4
SPECIFICATIONS

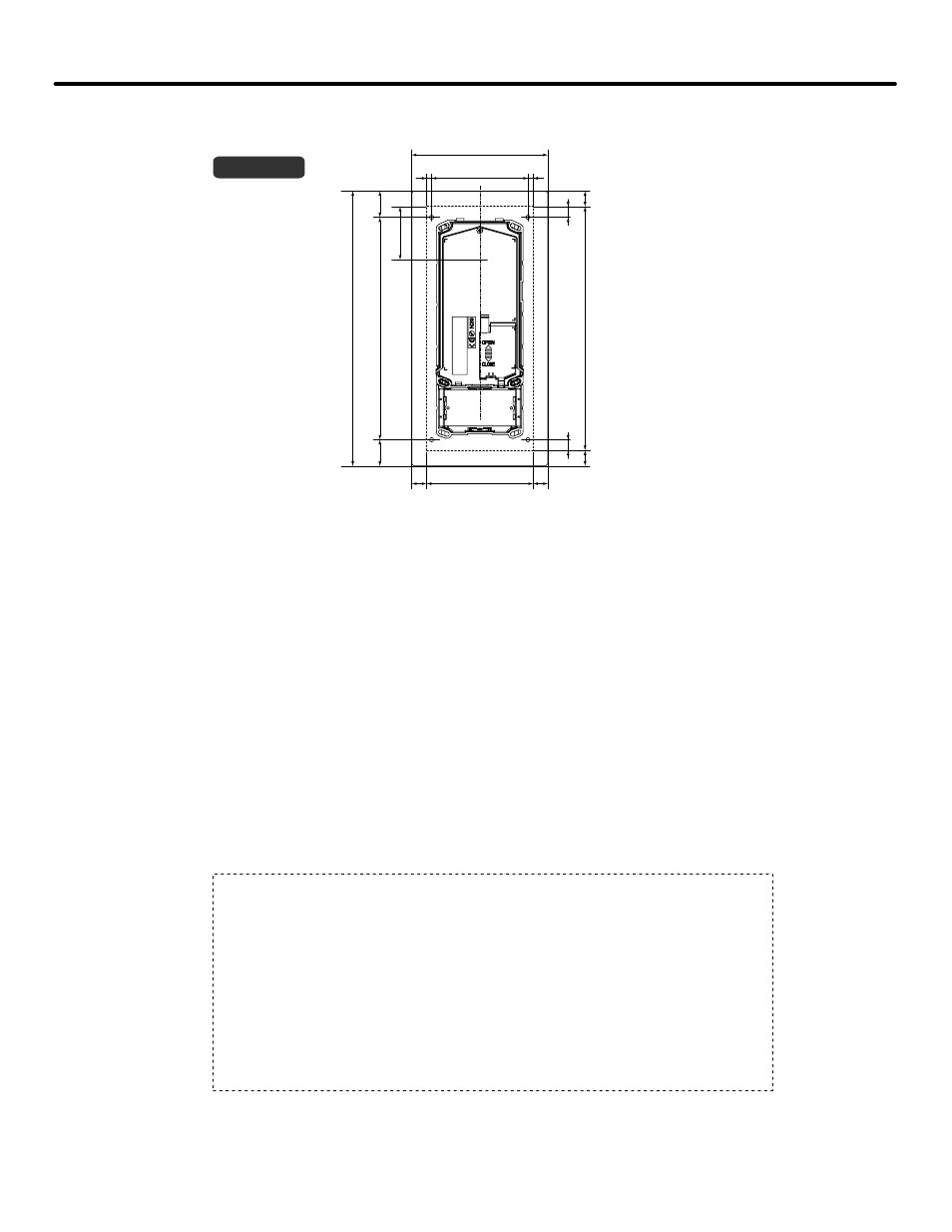

DIMENSIONS:
4-1/2"
(BOX)
5/8"
5/8"
5/
8"
5/
8"
3/
8"
3/
8"
JF-DVF-XP
4-1/8"
3/16"
3/16"
5-3/4"
1-
7/
8"
1"
1"
11
-5
/8
"
9-
9/
16
"
10
-3
/8
"
(B
O
X
)
