– 9

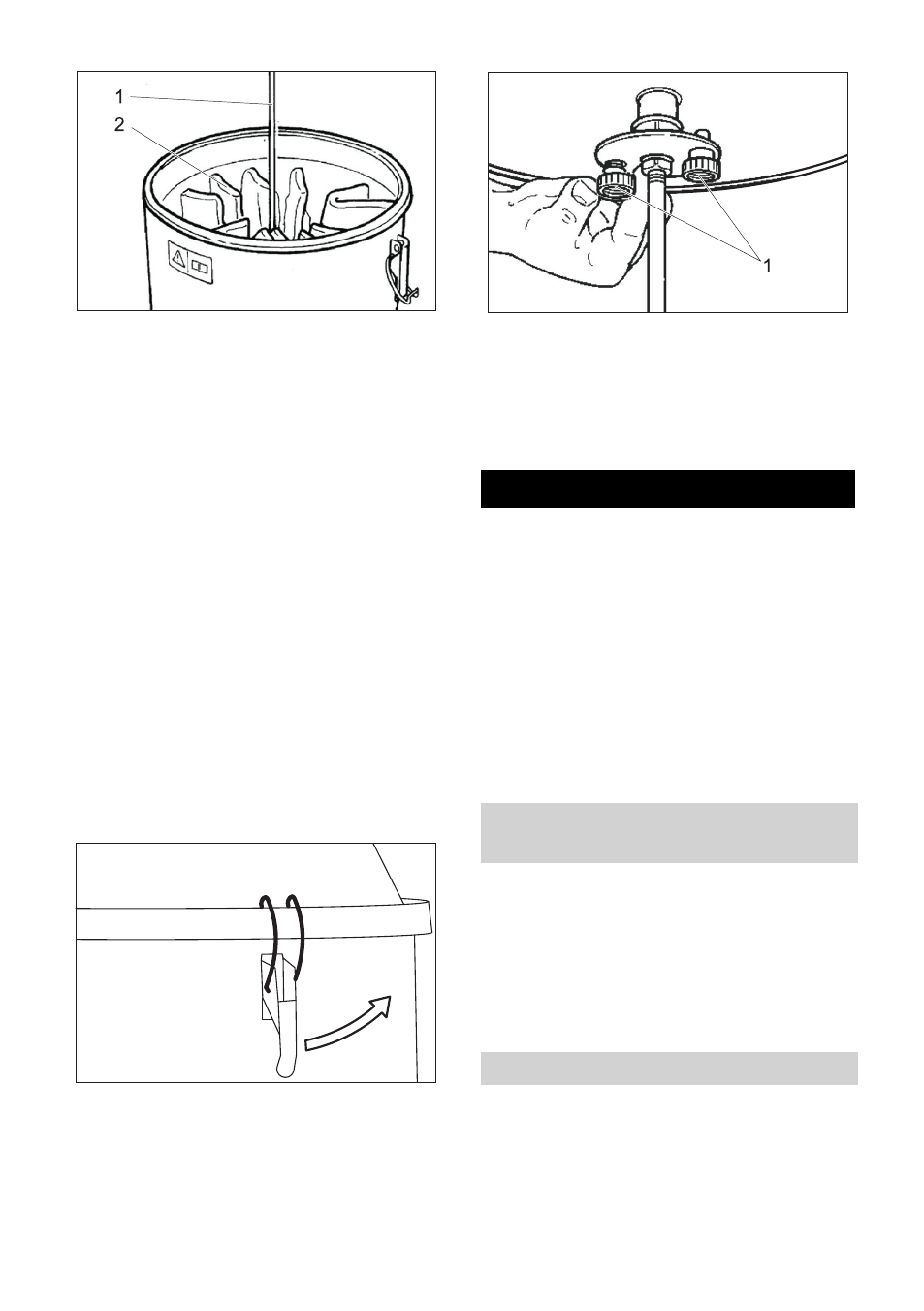

1 Frame
2 Filter

Open the knot of the tapes on the filter
and remove the frame.
 Take out the filter.
 Envelope the filter with the provided
bag immediately after removal and
close the bag.
 Dispose of the used filter in the closed,
dust-proof bag in accordance with legal
requirements.
 Insert and secure the new filter in the re-
verse sequence of steps.
 Press the "Switch off appliance" switch.
 Switch off the appliance using the ON/
OFF switch and separate it from the
mains.
 At the lower end, loosen and pull out the
hose to the suction turbine.
 Open locks.
 Remove the lid of the filter chamber.
1 Knurled-head screw

Loosen both the knurled-head scerws
and remove the filter out of the appli-
ance.
 Insert and secure the new filter in the re-
verse sequence of steps.
ƽ
Danger
First pull out the plug from the mains before
carrying out any tasks on the machine.
ƽ
Danger
Have all checks and works on electrical
parts parts performed by an expert.
Note: In case of a failure (e.g. filter break-
age) the appliance must be turned off im-
mediately. The failure must be remedied
before the appliance is put into operation
again.
No electrical voltage.

Check the receptacle and the fuse of
the power supply.
 Check the power cable and the power
plug of the device.
Protective motor switch was triggered.

Reset switch.
Filter, nozzle, suction hose or suction pipe
may be blocked.

Check, clean accessories. Clean filter.
IV 100/75 M B1
Troubleshooting
Motor (suction turbine) does not
start
Suction capacity decreases slowly
24 EN
