Wall Installation
1 Position the wall mount
adapter on the base.
2 Connect the telephone line cord.
3 Connect the power cord.
4 Mount the base on the wall.
5 Follow Steps 3 and 4 in
Table/Desk Installation.
INSTALLATION

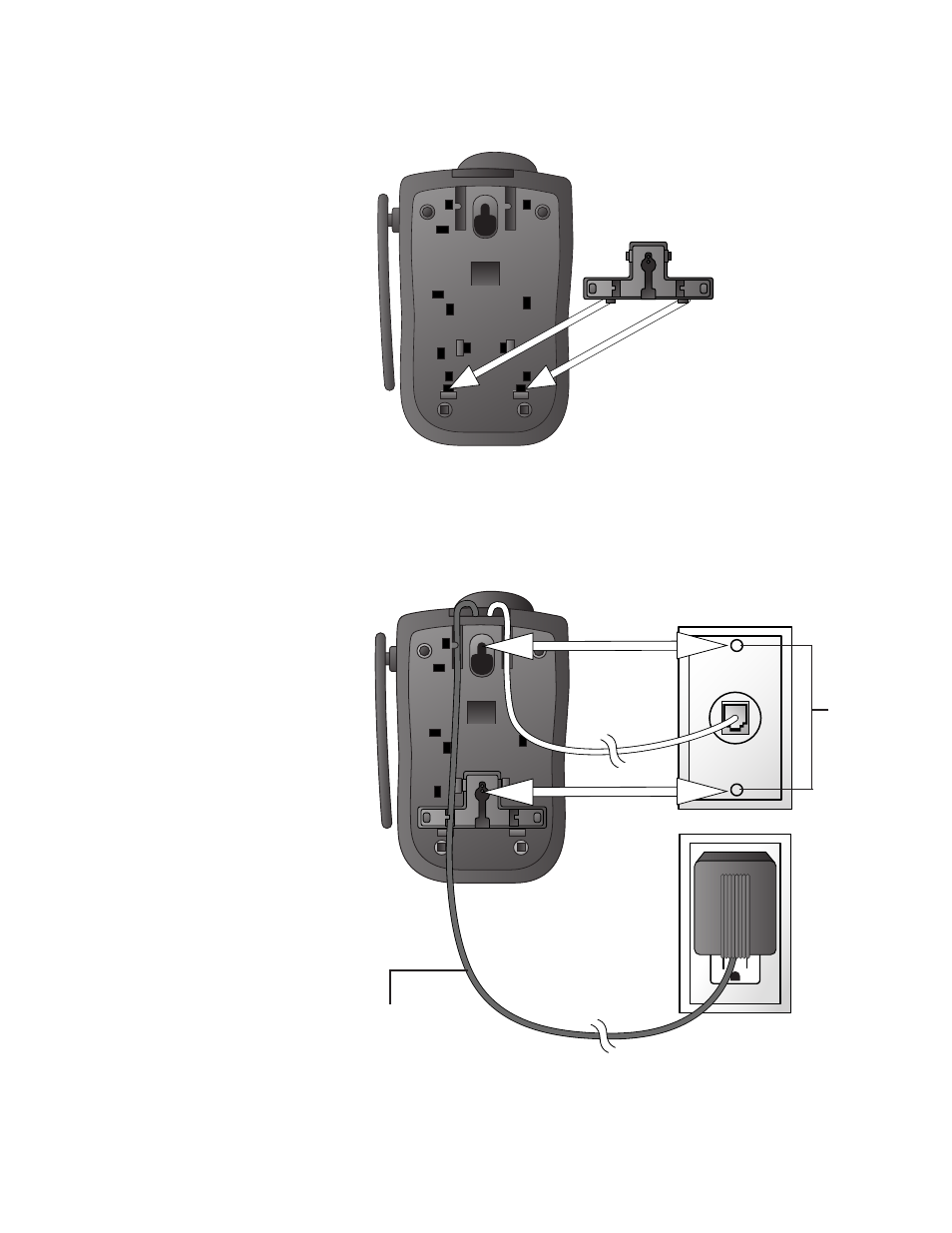

Align tabs on wall
mount adapter with
holes on bottom of
base. Snap wall
mount adapter firmly
into place.
a) Align holes on base
with mounting studs
on wall jack.
Power Cord
b) Place power cord as
shown, so it hangs
straight down between
base and wall.
c) Pull base down on
mounting studs until
it locks into place.
3
Mounting
Studs
