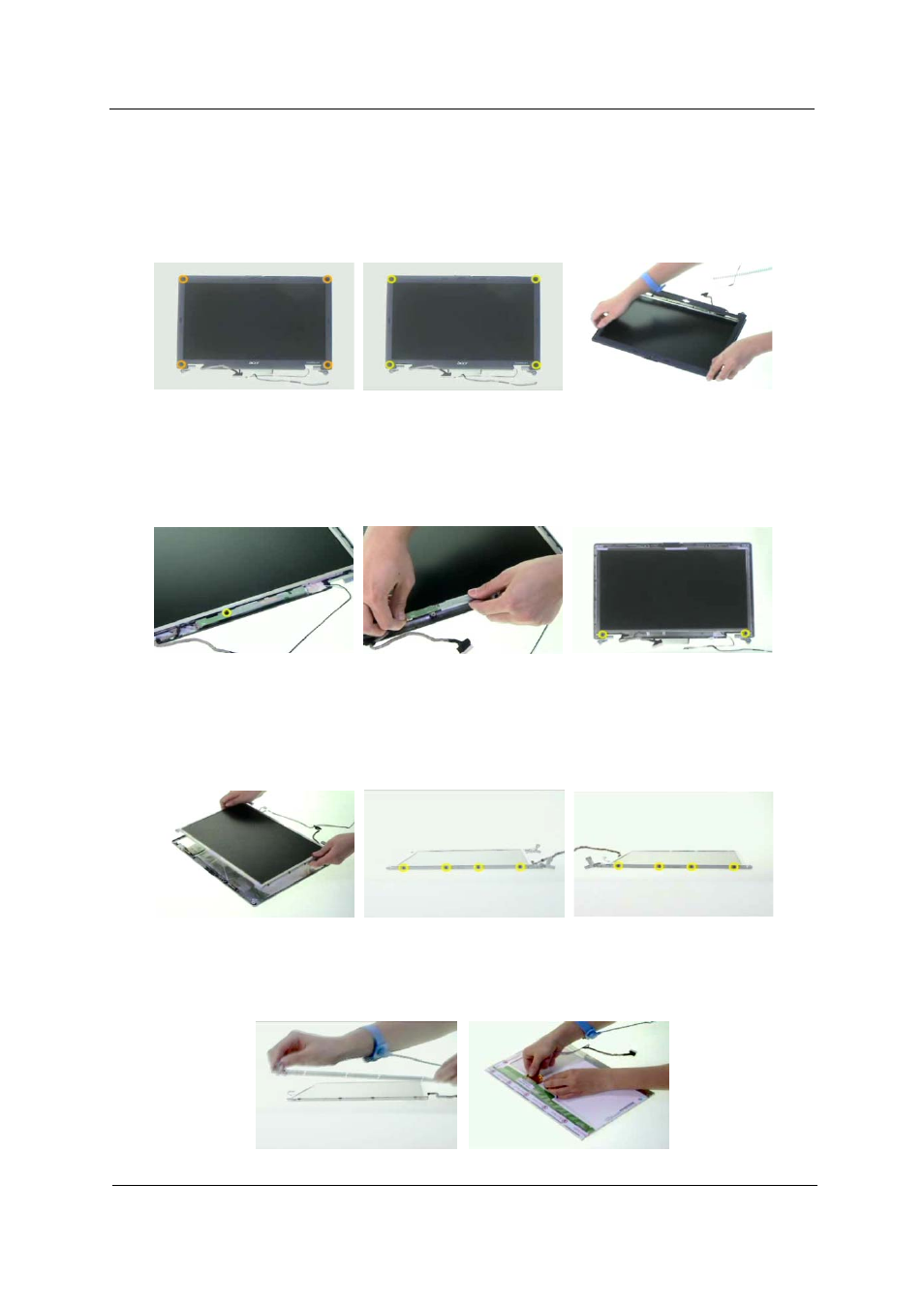

Disassembling the LCD Module
1.
Remove the four screw caps as shown.
2.
Remove the four screws holding the LCD bezel.
3.
Then detach the LCD bezel from the LCD module.
4.
Remove the screw fastening the LCD inverter.
5.
Disconnect the LCD cable and disconnect the inverter cable, then remove the inverter.
6.
Remove the two screws fastening the LCD assembly to the LCD panel.
7.
Take out the LCD assembly from the LCD panel.
8.
Remove the four screws fastening the LCD left bracket then remove it.
9.
Remove the four screws fastening the LCD right bracket.
.
10. Then remove the LCD right bracket.
11. Tear off the mylar and disconnect the LCD cable from the LCD then remove the cable.
