Dual CAN Hub Configurations
When configuring for dual hubs, the second hub is populated in reverse order, from
position 6, down to position 1. The last device on the second hub must be terminated
using a black cable.

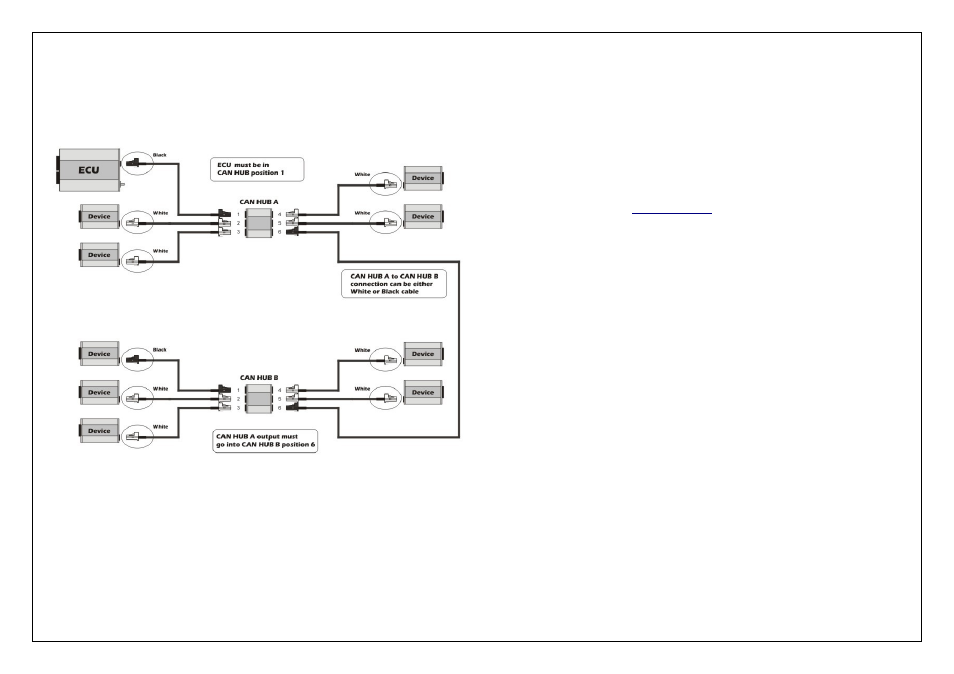

Dual CAN Hub configuration without Racepak IQ-3
Haltech CAN Hub
Quick Start Guide
Congratulations on purchasing a Haltech Engine Management CAN Hub.
This Plug and Play product allows you to expand the functionality of your ECU by
allowing the connection of other Haltech CAN based expansion devices.
This quick start guide will walk you through installation of the Haltech CAN Hub into a
vehicle. This guide is accompanied by the full service manual located on the software
CD provided with the ECU that you or your tuner will need to refer to before completing
your installation and configuration. The manual can also be downloaded
from the Haltech website
www.haltech.com
Included in Haltech CAN Hub Kit
• Haltech CAN Hub
• Haltech CAN Cables White (4 x 300mm)
• Quick start guide
• Haltech Sticker
Optional Accessories ( Sold Separately )
• CAN Cable Direct Connection Black / Black 75mm ( HT040050 )
• CAN Cable Hub Connection White / White 75mm ( HT040051 )
• CAN Cable Direct Connection Black / Black 150mm ( HT040052 )
• CAN Cable Hub Connection White / White 150mm ( HT040053 )
• CAN Cable Direct Connection Black / Black 300mm ( HT040054 )
• CAN Cable Hub Connection White / White 300mm ( HT040055 )
• CAN Cable Direct Connection Black / Black 600mm ( HT040056 )
• CAN Cable Hub Connection White / White 600mm ( HT040057 )
• CAN Cable Direct Connection Black / Black 900mm ( HT040058 )
• CAN Cable Hub Connection White / White 900mm ( HT040059 )
• CAN Cable Direct Connection Black / Black 1200mm ( HT040060 )
• CAN Cable Hub Connection White / White 1200mm ( HT040061 )
• CAN Cable Direct Connection Black / Black 1800mm ( HT040062 )
• CAN Cable Hub Connection White / White 1800mm ( HT040063 )
• CAN Cable Direct Connection Black / Black 2400mm ( HT040064 )
• CAN Cable Hub Connection White / White 2400mm ( HT040065 )
• CAN Cable Hub Connection White / White 3000mm ( HT040066 )
• CAN Cable Direct Connection Black / Black 3000mm ( HT040067 )
• CAN Cable Hub Connection White / White 3600mm ( HT040068 )
• CAN Cable Direct Connection Black / Black 3600mm ( HT040069 )
