AirLink+ 13
24-Port 10/100Mbps Ethernet Switch User Guide
Then, use screws provided with the equipment rack to
mount each switch in the rack (see Figure 2).

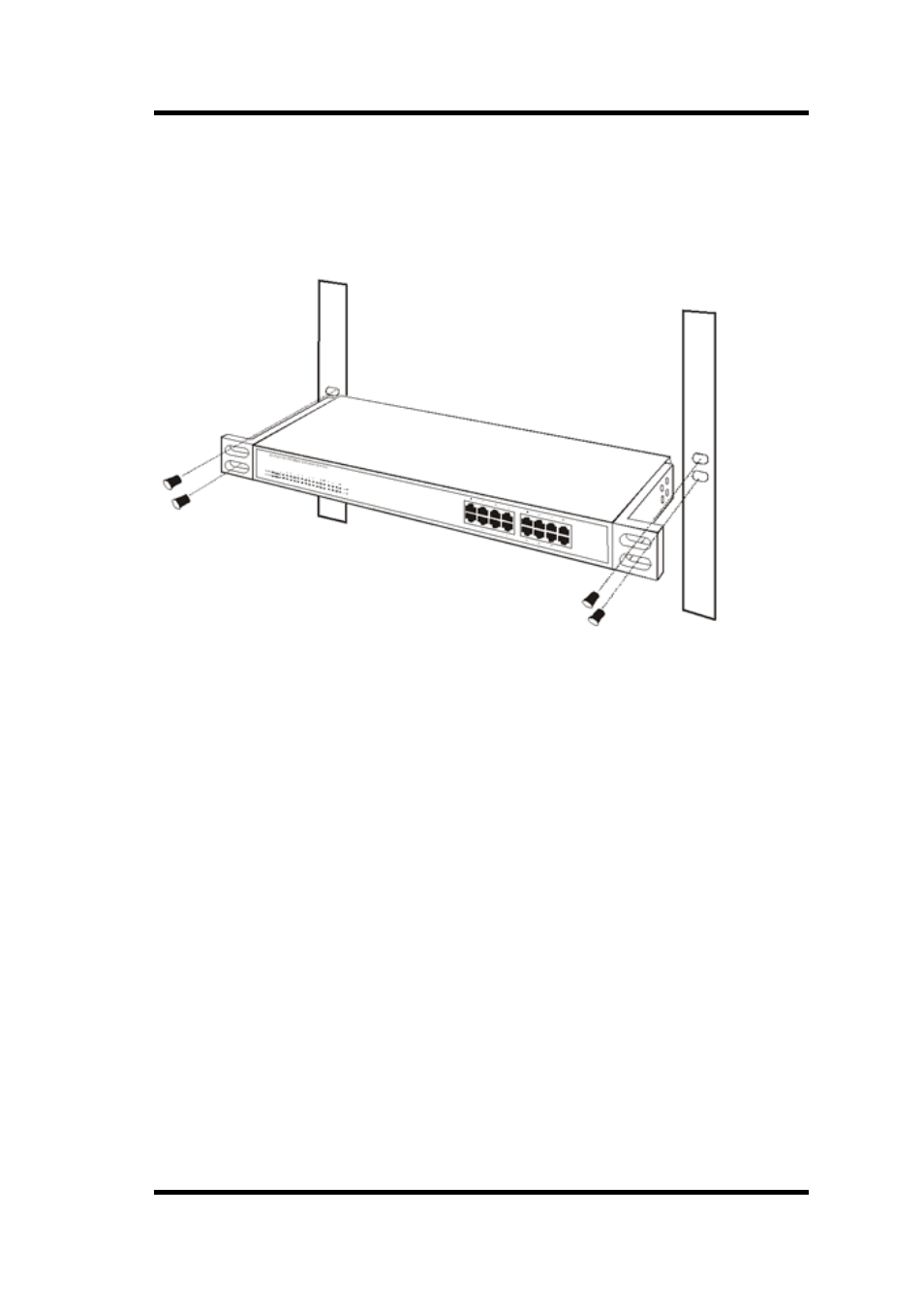

Figure 2. Attach Switch to Rack
External Components
This section identifies all the major external components of
the switch.
Front Panel
Figure 3 shows the front panels of the switch.
