HFW-1, HFW-1D
INDICATOR
LIGHT
HEATING
ELEMENT
ROBERT SHAW
THERMOSTAT
H1
H2
L1
L2
INDICATOR
LIGHT
HEATING
ELEMENT
RANCO
THERMOSTAT
H1 H2
L1 L2
HFW-12, HFW-12D, HFW-23, HFW-23D
THERMOSTAT CONFIGURATION
HFW-23D
INFINITE CONTROL
HEATING
ELEMENT
INDICATOR
LIGHT
THERMOSTAT
HEATING
ELEMENT
INDICATOR
LIGHT
LIMITING
THERMOSTAT
INFINITE
CONTROL
P L1 L2
H1 H2

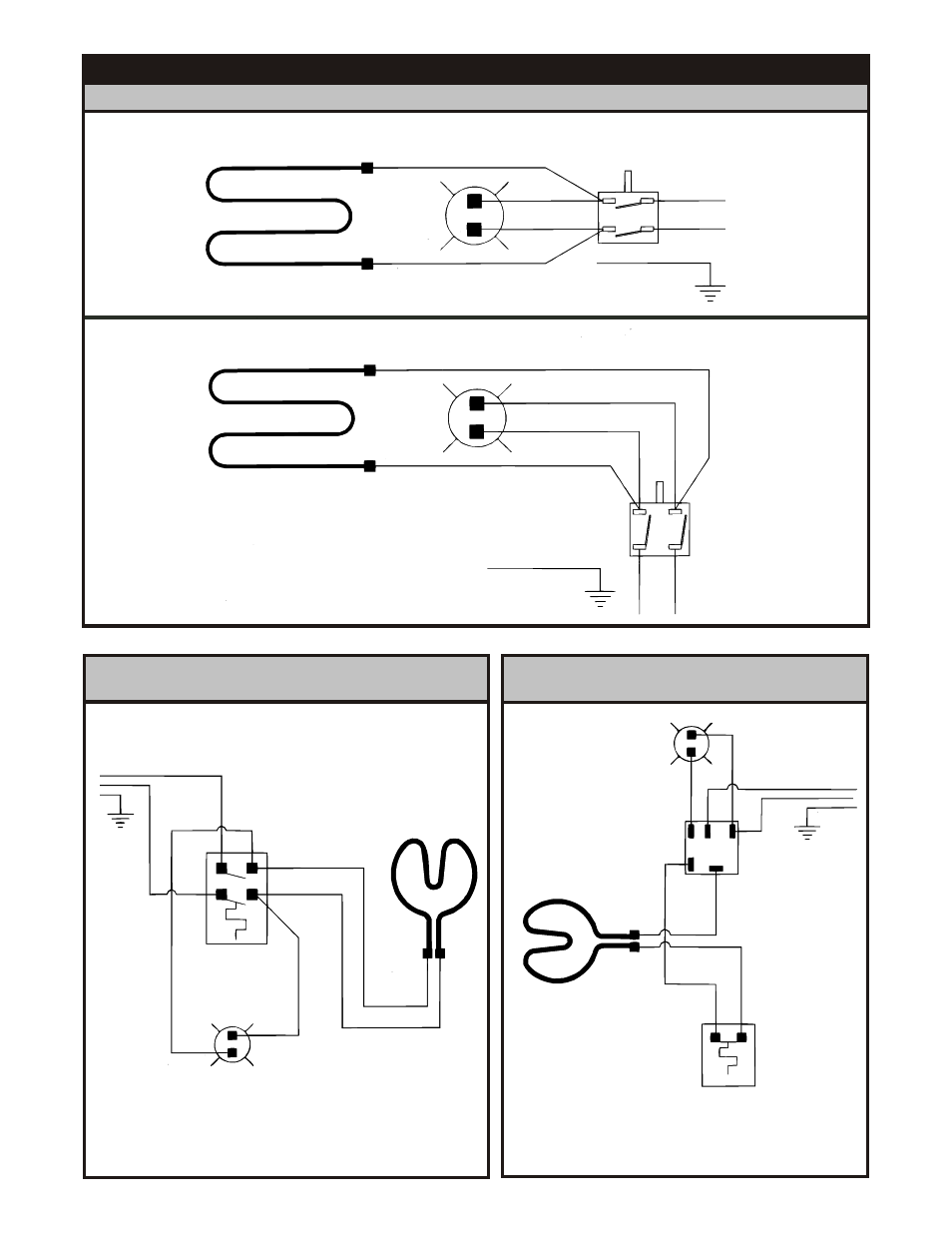

WIRING DIAGRAMS
8
