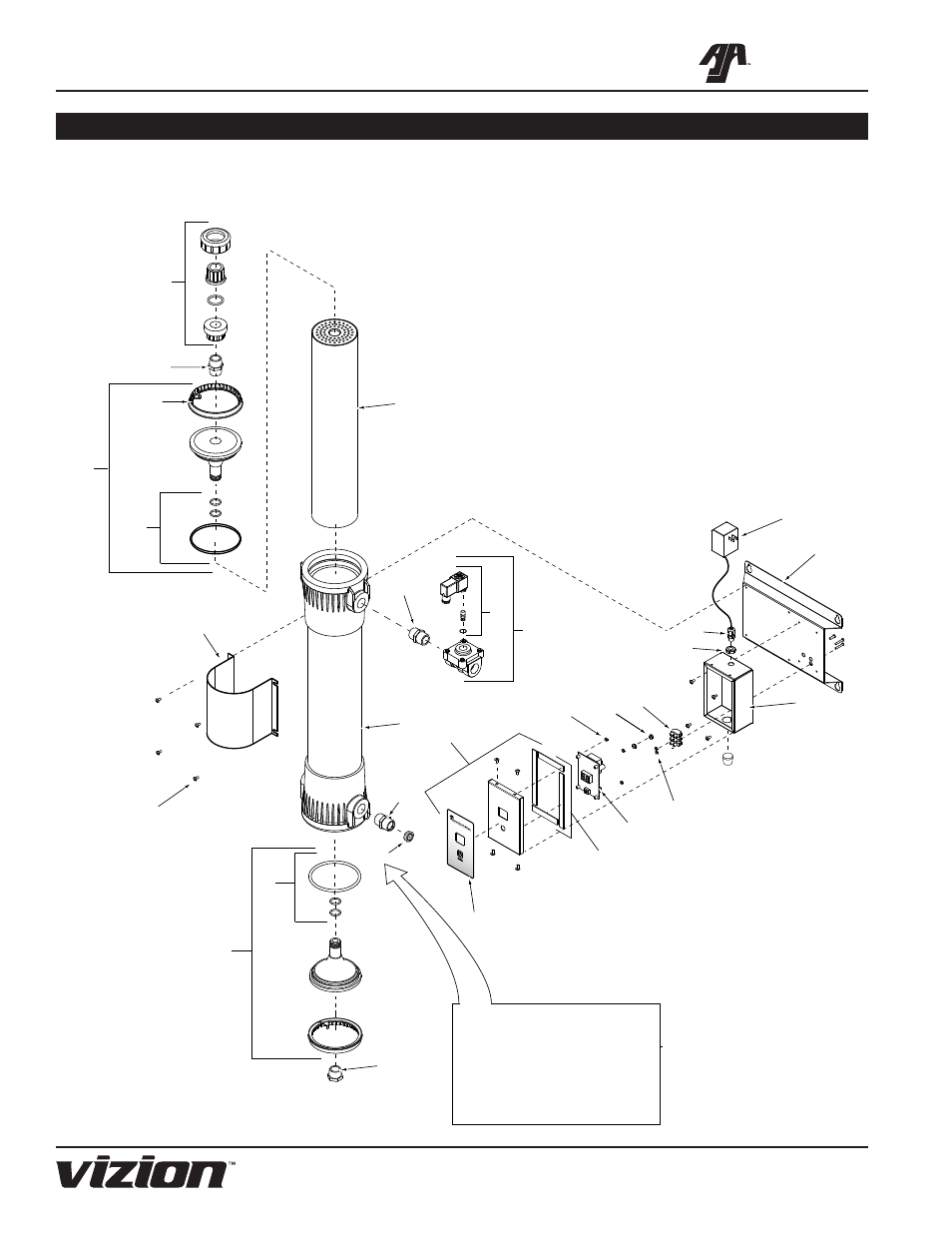

UFL-420/440 water FiLtration system
18
P/N 1010864 Rev. C 03/12
A.J. Antunes & Co.
replacement parts Ufl-420/440 (continued)
Item
Number
Document
Number
Title
Quantity
1
0504033
BRACKET, MOUNTING
1
2
0503983
CONTROL HOUSING
1
3
0504065
CLAMP, 4" FILTER
1
4
3080157
SCREW, TAP #8-32 X
3/8"
12
5
3080124
SCREW, MACH
ONE-WAY #8-32
1
6
3080143
NUT, HEX 'KEPS' #8-32
2
7
4060355
TERMINAL BLOCK,
3-POLE
1
8
3060123
SCREW, MACH #6-32 X
7/8" SLRNDHD
2
9
3060101
NUT, HEX #6-32
2
10
0400334
STRAIN RELIEF-SMALL
1
11
0400333
NUT, LOCK
1
12
0503982
COVER, CONTROL
HOUSING
1
13
3010150
STUD, WELD #4-40 X
5/8"
4
14
4070058
TIMER, 115V
1
15
3040105
NUT, HEX 'KEPS' #4-40
4
16
1001116
LABEL, TIMER
1
17
0200231
GSKT, CONTROL HSG
COVER
2
18
0200232
GSKT, CONTROL HSG
COVER
2
19
2180188
HOUSING, FILTER 420
1
20
2180182
CAP, END
2
21
0200235
O-RING, END CAP
2
22
2180181
RING, LOCK
2
23
0200236
O-RING, CARTRIDGE
4
24*
2140153
LUBRICANT,
HIGH-VACUUM
GREASE
1
25
2190135
PLUG, PIPE 3/4" NPT
1
26
2190144
NIPPLE, HEX 3/4" NPT
X 1 1/2" LG
2
27
1
28
1
29
1
30
1
Item
Number
Document
Number
Title
Quantity
31
4040171
N.C. SOLENOID
VALVE-3/4" NPT
1
32
4040176-1
SOLENOID COIL
1
33
4040176-4.par
1
34
NUT, SOLENOID
VALVE #4040169
1
35
3100178
Screw, Hex Bolt #10-32
x 3/8
4
36
1
37
4040176-7
GASKET
1
38
4040176-2
DIN SWITCH
1
39
4040176-3.par
1
40
MOUNTING
SCREW
MOUNTING SCREW
1
41*
2140102
SEALANT, PIPE
1
42*
2140144
TAPE, PIPE THRD,
TEFLON
1
43
2190145
NIPPLE, MACHINED
1
44
2170120
REGULATOR, FLOW
5GPM
1
45*
0700636
WIRE SET
1
46*
0700637
WIRE HARNESS
1
47
1001101
LABEL-WIRING
DIAGRAM
1
48
1001133
LABEL, INLET
1
49
1001135
LABEL, DRAIN
1
50
1001134
LABEL, PERMEATE
1
51
1001136
LABEL, AGENCY
1
52
0400251
STRAIN RELIEF-CORD
CONNECTOR
1
53
0400138
LOCK-NUT,
CONDUIT-1/2" NPT
1
54
0700463
POWER CORD 14/3
(5-15P) 120V
1
55*
5126003
POLYBAG, 33 GAL
1
56*
5126009
POLYBAG, 9 X 12
1
57*
2180186
HOUSING, MEMBRANE
ELEMENT 420
1
58*
2180187
TUBE, DIRLLED CORE
420
1
59*
----------
EPOXY
2
Item
Number
Document
Number
Title
Quantity
60*
----------
CAPILLARY
1
61*
----------
GLYCERIN
(SHIPPING/STORAGE
SOLUTION)
1
62*
----------
PLASTIC BAG
1
63*
1250433
CARTON BOX
1
64*
1260195
FOAM INSERT-SYSTEM
2
65*
1260197
FOAM INSERT-CTR
SUPPORT
1
66*
1260196
FOAM
INSERT-CARTRIDGE
2
67*
1010864
OWNER'S MANUAL,
UFL-420/440
1
68
1030756
SPEC LABEL
1
28
3
4
1
6
7
8
9
27
26
23
20
18
15
16
13
14
19
21
22
2
11
10
12
NOTE: Item 12 is GREEN and rated
at 5 GPM for UFL-420 units. For UFL-440
units, it is BLACK and rated at 10 GPM.
WARNING: Use only a 5 GPM Flow
Regulator with UFL-420 units and a
10 GPM Flow Regulator for UFL-440 units.
Use of the wrong Flow Regulator will void
the system warranty.
5
5
25
24
4
28
17
