VERTICAL CONTACT TOASTER
P/N 1010875 Rev. C 02/13

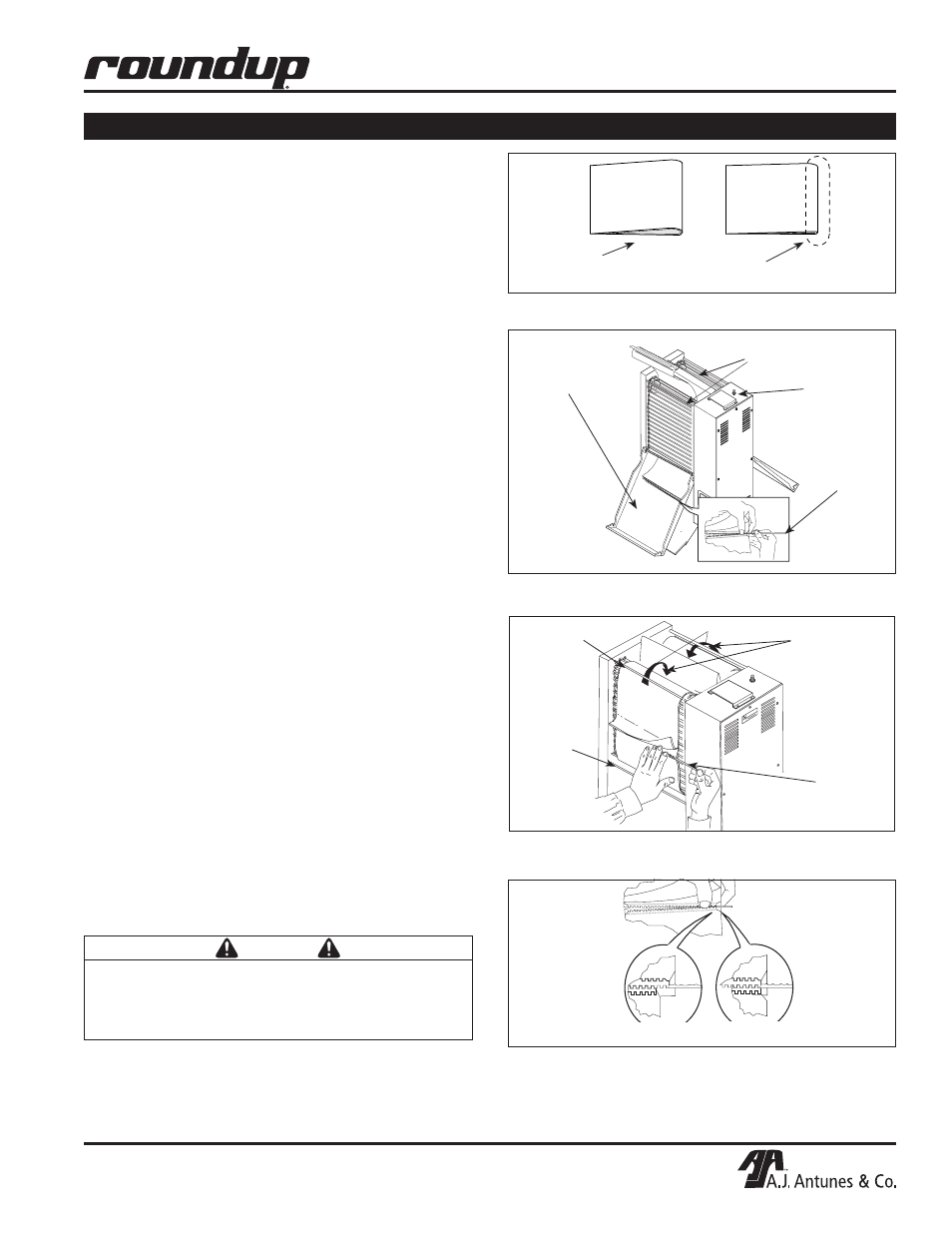

Replacing Belt Wraps (Every 3 to 6 months)
NOTE: Depending on toaster usage and how well
they are cleaned daily, the Belt Wraps should last
between 3‒6 months. Additional Belt Wraps may be
purchased from your Authorized Service Agency.
1. Turn the Rocker Switch off, unplug the power
cord, and allow the unit to cool.
2. Remove the Bun Feeder and Heat Shield and set
the Compression Control Knobs to 6 and F.
3. Open both Conveyor Covers and pull the Belt
Wrap Pin out of the “zipper” (Figure 8).
4. Remove and discard the old Belt Wrap(s).
5. Clean both Conveyor Belt Chains just as you
would clean the Belt Wraps during daily cleaning.
6. Install the new Belt Wrap(s) around the Conveyor
Belt Chains inside the rods with the “zipper” flap
exposed and hanging down (Figures 9 & 10).
7. Close the Conveyor Cover(s), set the
Compression Control Knobs back to their normal
settings and reinstall the Heat Shield and Bun
Feeder.
CAU TIO N
INCORRECT CORRECT
Figure 9. Installing Belt Wrap
Figure 10. Aligning Belt Teeth
Belt Wrap
Pin
Belt Rotation
Upper Support Rod
Lower
Support Rod
CAUTION
Align the ends of the Belt Wrap properly (Figure
14) or the Belt Wrap may be damaged. Position
the Belt Wrap between the upper and lower
Support Rods or damage to the unit may occur.
Figure 8. Removing Belt Wrap
Figure 7. Folding Release Sheet
Conveyor
Interlock
Safety
Switch
Conveyor
Cover Assy.
Belt Wrap
Pin
Replacing Black and Silver Release Sheet
(Every 4 to 6 weeks)
NOTE: Depending on toaster usage and on how
well it is cleaned daily, the black and silver Release
Sheet should last between 45‒60 days.
1. Remove and discard the Release Sheet.
2. Lay a new Release Sheet on a clean, dry surface
and fold it in half lengthwise and gently crease it
at the fold using only your fingers (Figure 7).
3. Install the Release Sheet.
Fold over so
ends meet.
Press Lightly
with finger to
form crease.
Conveyor Belt
Chains
