13
GB

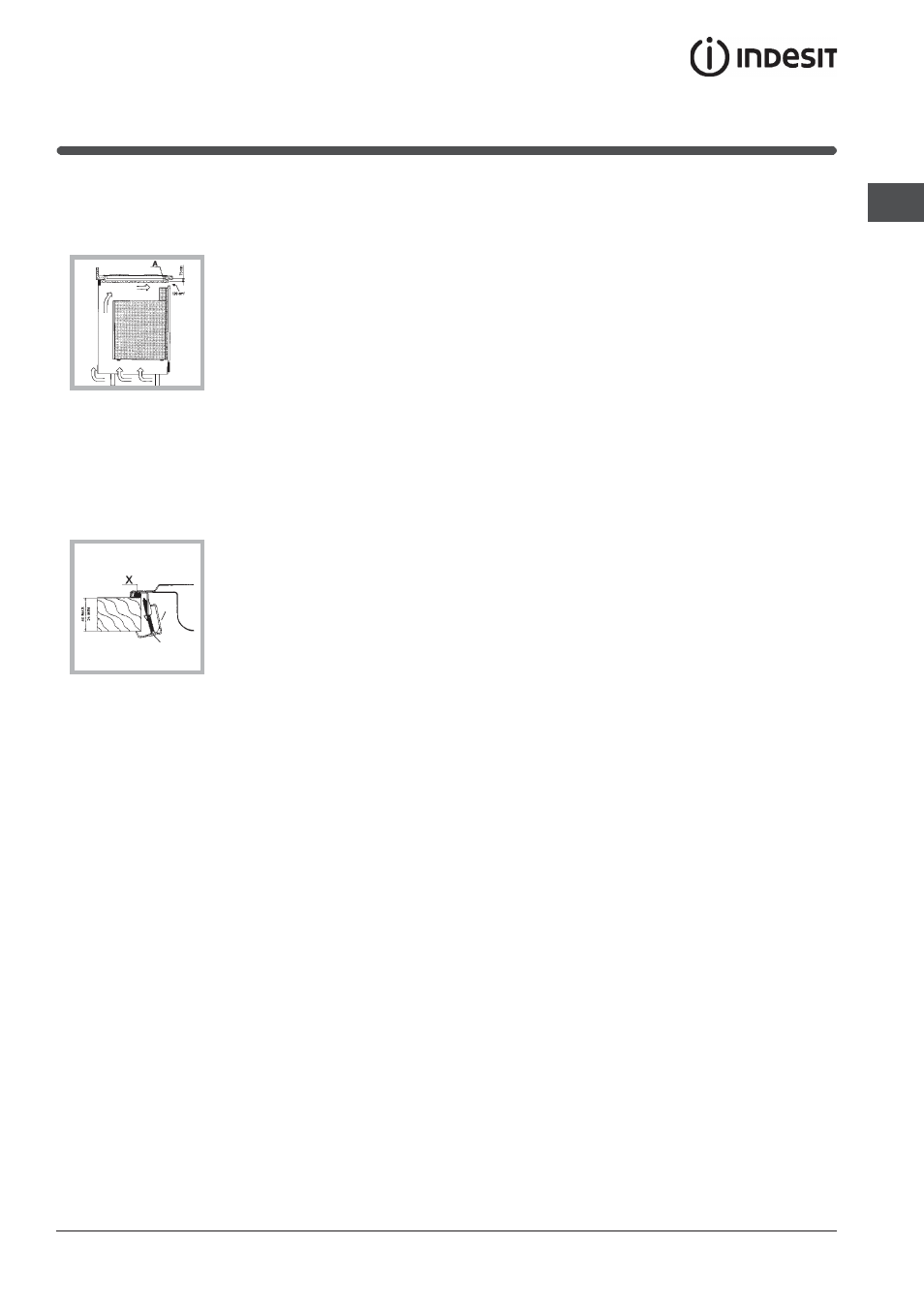

If the hob is fitted above a built-in oven without a
forced ventilation cooling system, suitable air vents
must be placed as shown in Fig. 8 (lower input vent
of at least 200 cm², upper output vent of at least 120
cm²) so the inside of the
furniture unit is adequately
aerated (see picture).
Furthermore, a wooden board
“A” must be placed beneath
the hob for heat insulation. It
must be at least 15 mm from
the hob casing (see picture).
Fitting the hob to the worktop
The hob must be fitted to the worktop in the
following manner:
• Mount the provided clamps “B” and partially
tighten the screws “A” in the relative holes.
• Place the provided sealing gasket “X” 5-6 mm
from the cut-out edge,
ensuring the ends of the seal
meet without overlapping.
• Fit the hob into the cut-out,
centre it and ensure the hob
edge adheres to the seal.
• Place the clamps “B”
correctly and then tightly
fasten the screws “A”.
Electrical connections
Hobs equipped with a three-pole power supply
cable are designed to operate with alternating
current at the voltage and frequency indicated on
the data plate (located on the underside of the hob).
The earth wire in the cable has a green and yellow
covering. If the hob is to be fitted above a built-in
electric oven, the hob and oven electrical
connections must be carried out separately, both for
electrical safety purposes and to facilitate oven
extraction.
Replacing the cable
Use a rubber cable of the type H05RR-F. The yellow-
green earth wire must be 2-3 cm longer than the
other wires.
Connecting the electricity supply cable to the
mains
Mount a normalised plug corresponding to the load
indicated on the data plate.
When connecting the appliance directly to the
mains, an omnipolar switch with a minimum contact
opening of 3 mm must be installed between the
appliance and the mains. The switch should be
sized for the required load and must comply with
current electrical regulations (the earth wire must not
be interrupted by the switch). The supply cable
must be properly positioned to avoid reaching more
than 50°C above room temperature, at any point
along its length.
The installer is held responsible for the correct
electrical connection and for the observance of
safety regulations.
Before connecting the appliance to the power
supply, ensure that
• The appliance is earthed and the plug complies with
regulations.
• The socket can withstand the maximum power of
the appliance, which is indicated on the data
plate.
• The voltage falls between the values indicated on
the data plate.
• The socket is compatible with the appliance plug.
If not, the socket or plug must be replaced; do
not use extension cords or multiple sockets.
Once the appliance has been installed, the power
supply cable and the electrical socket must be
easily accessible.
The cable must not be subject to bending or
compression.
The cable must be checked regularly and replaced
by authorised technicians only (see Assistance).
The manufacturer declines any liability should
these safety measures not be observed.
Gas connections
The appliance must be connected to the main gas
supply or to a gas cylinder in compliance with
current national regulations. Before carrying out the
connection, make sure the hob is compatible with
the gas supply you wish to use. If this is not the
case, follow the instructions indicated in the
paragraph “Adapting to different types of gas.”
When using liquid gas from a cylinder, install a
pressure regulator that complies with current national
regulations.
