AF-S NIKKOR 500mm f/4G ED VR

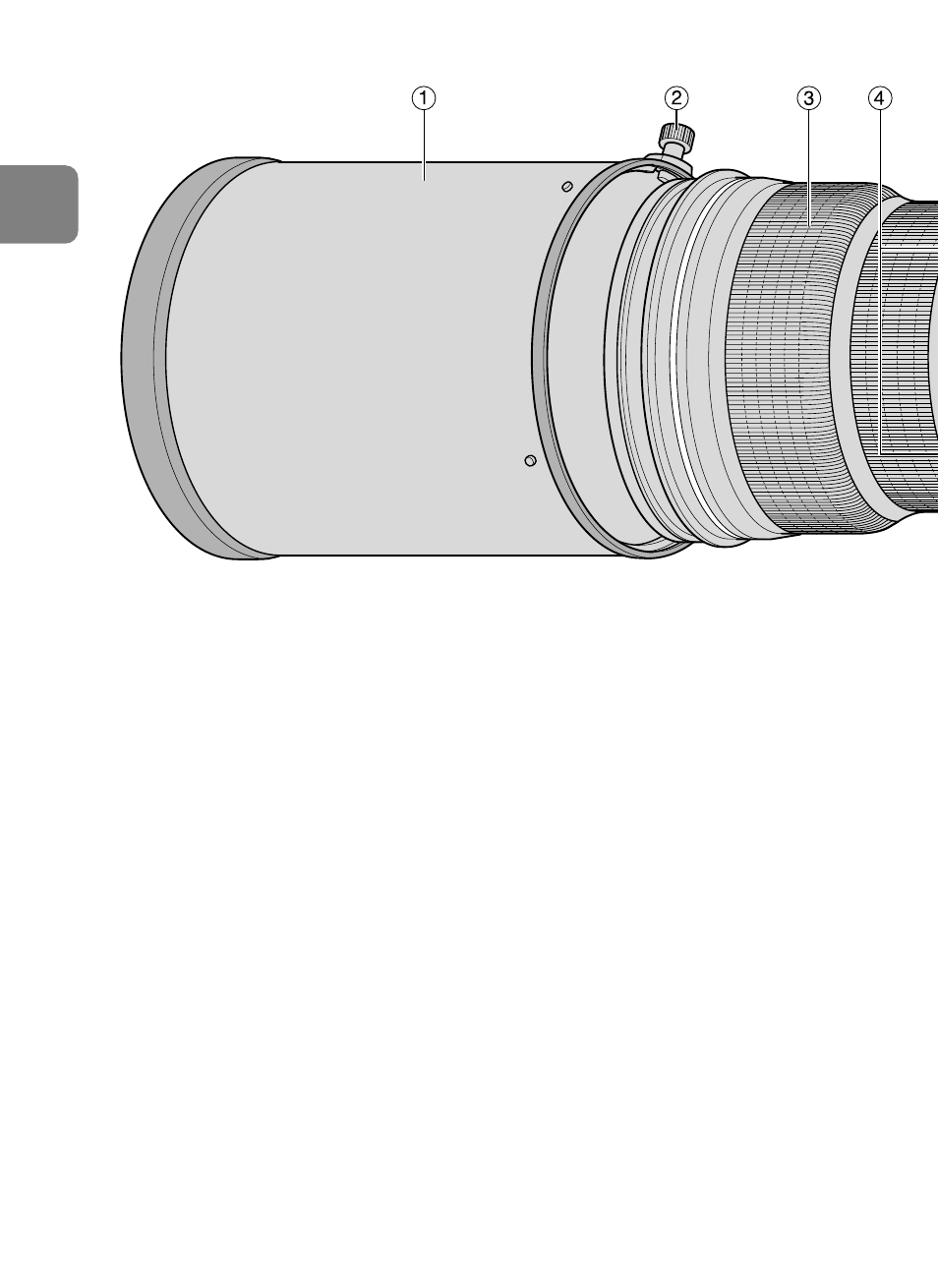

1 Lens hood HK-34 (p. 31)
2 Lens hood screw (p. 31)
3 Rubber grip
4 Focus operation button (Focus
Lock/MEMORY RECALL/AF Start)
(p. 28)
5 Focus ring (p. 28)
6 Depth-of-field scale (p. 30)
7 Distance index line (p. 30)
8 Distance scale
9 Vibration reduction ON/OFF ring
switch (p. 29)
! Tripod collar lock screw (p. 31)
" Lens rotating position index
# Strap eyelet
$ Slip-in filter holder knob (p. 31)
% Slip-in filter holder (p. 31)
& Mounting index
( Lens mount rubber gasket (p. 27)
) CPU contacts (p. 26)
~ Built-in rotating tripod collar (p. 31)
+ Monopod collar (replaceable)
(p. 31)
, Focus mode switch (p. 27)
- Focusing limit switch (p. 28)
. Vibration reduction mode switch
(p. 29)
/ Focus operation selection switch
(AF-L/MEMORY RECALL/AF-ON)
(p. 28)
: Sound monitor switch (p. 28)
; Memory Set button (p. 29)
1. Nomenclature ( ): Reference page
