Aquatic HOTSOAK 54 AI7240RHS - Manual

100
SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
August 2008

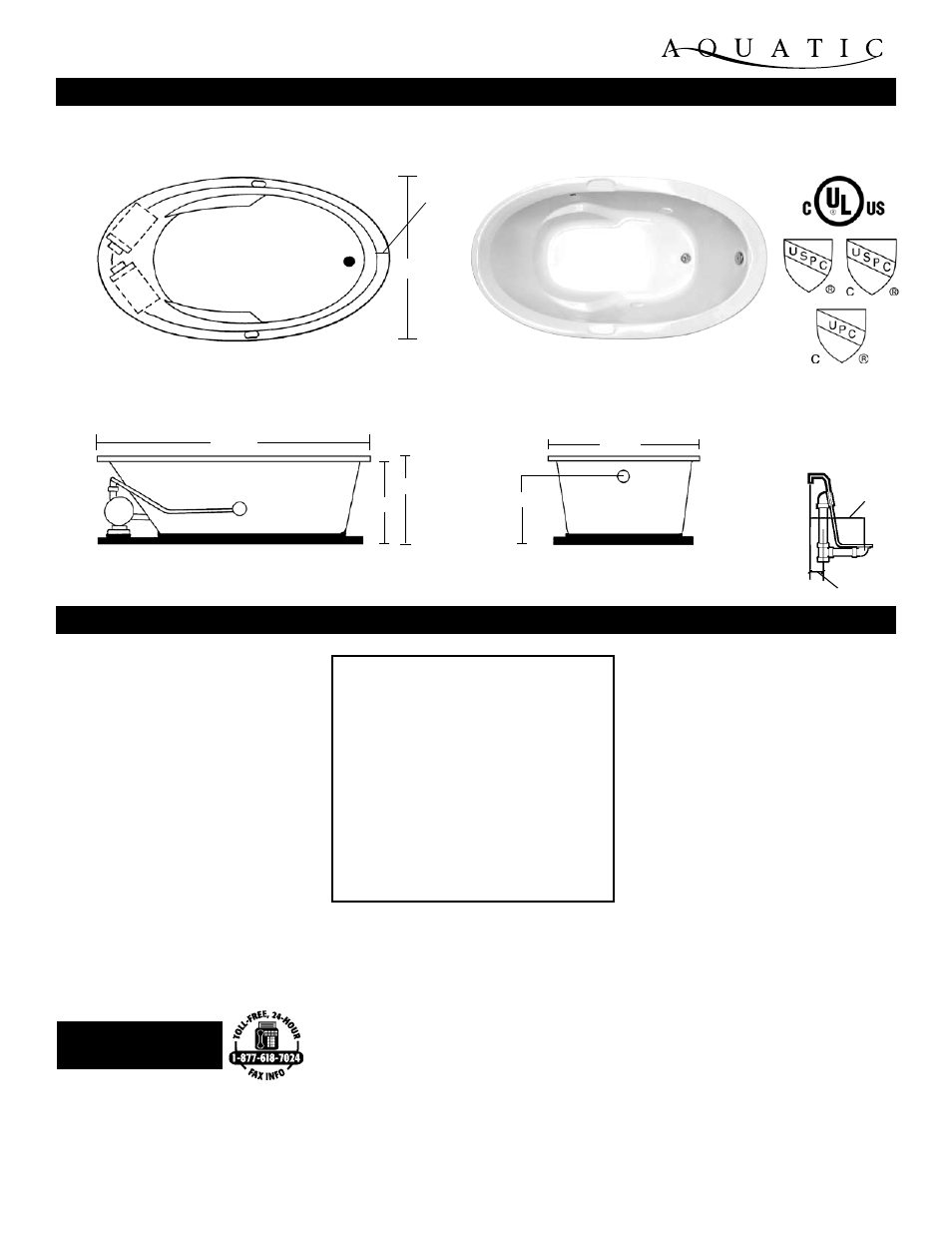

Rough-In Plumbing
Measurements
HOTSOAK SERIES
Model # ai7240RHS
HOTSOAK 54
GeneRal SPecIfIcatIonS:
Tub Size 71 3/8” x 39 1/4” x 22”
181 cm x 100 cm x 56 cm
Bathing Well 44” long
25” wide
21 1/4” interior depth
Shipping Weight 194 lbs. / 88 kg
Tub Weight Filled 854 lbs. / 387 kg
Tub Only Weight 106 lbs. / 40 kg
Gallons to Overflow 86 gal. / 326 L
electRIcal SPecIfIcatIonS:
Pump 1/15 HP; 1.3 AMP; 110V
Heater 1.5 kW; 12.5 AMP; 110V
Requirements 20 AMP; 110V, separate circuit
required protected w/ Class A GFCI
• Chromatherapy LED Lighting*
•
Comfort Pillow - Oval or Rectangle
•
Bolt-On Grab Bar
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•
Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or Color
Matched (Bone, White and Biscuit Only)
•
Optional Pump Location
•
Premium Colors
All acrylic colors featured by Aquatic match the industry’s
leading fixture manufacturers.
*This whirlpool will need to be hard wired to the breaker box.
Three outlets will be supplied on the whirlpool.
oPtIonal equIPMent:
aquatic quality features:
- 1.5 kW Inline Maintenance Heater
- Run-Dry Pump with 20-Minute Timer
- 2 Circulation Portal Covers
- Bath-Side On/Off Electronic Button
- ”Quiet Pad”
Anti-Vibration Pump Mount for Quiet Operation
- 2 Arm Rests
- Slip Resistant Floor
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited lifetime Warranty
StandaRd equIPMent:
fax-on-demand
document #1229
22”
39 1/4”
18 3/4”
20 5/8”
71 3/8”
39 1/4”
Deck Width
3 1/2”
5 1/4”
16 1/4”
2
1
