Left Panel
(1)
(2) (3)
SD
CF
Name Function
(1) CF card slot : Insert the CF card with the label facing up. This supports
16~512MB card capacity.
(2) SD card slot : Insert the SD card with the label facing up. This supports
16~512MB card capacity.
(3) MIC port : Connect a Ф6.3mm microphone.

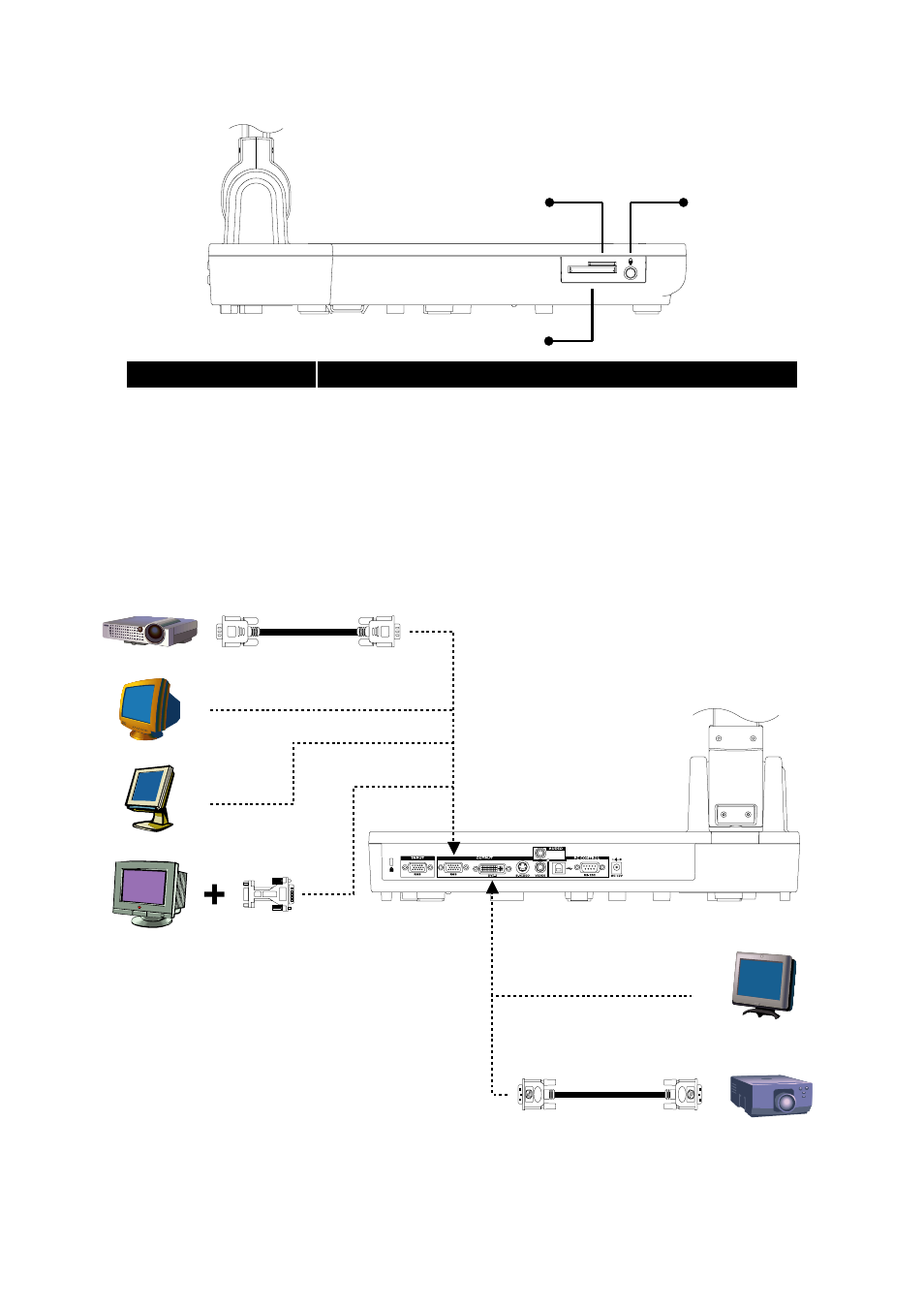

Connecting a VGA, Mac Display Monitor or LCD/DLP Projector
Locate the RGB (VGA) or DVI-I input port of the display device. If you are not sure, please refer to the user
manual of the device.
RGB (VGA) cable
(not supplied)
MA
C
LCD/DLP projector
LCD monitor
MAC monitor
Monitor Adapter
(not supplied)
CRT monitor
LCD/DLP projector
with DVI interface
LCD Monitor
with DVI interface
DVI cable
(not supplied)
