48
-EN

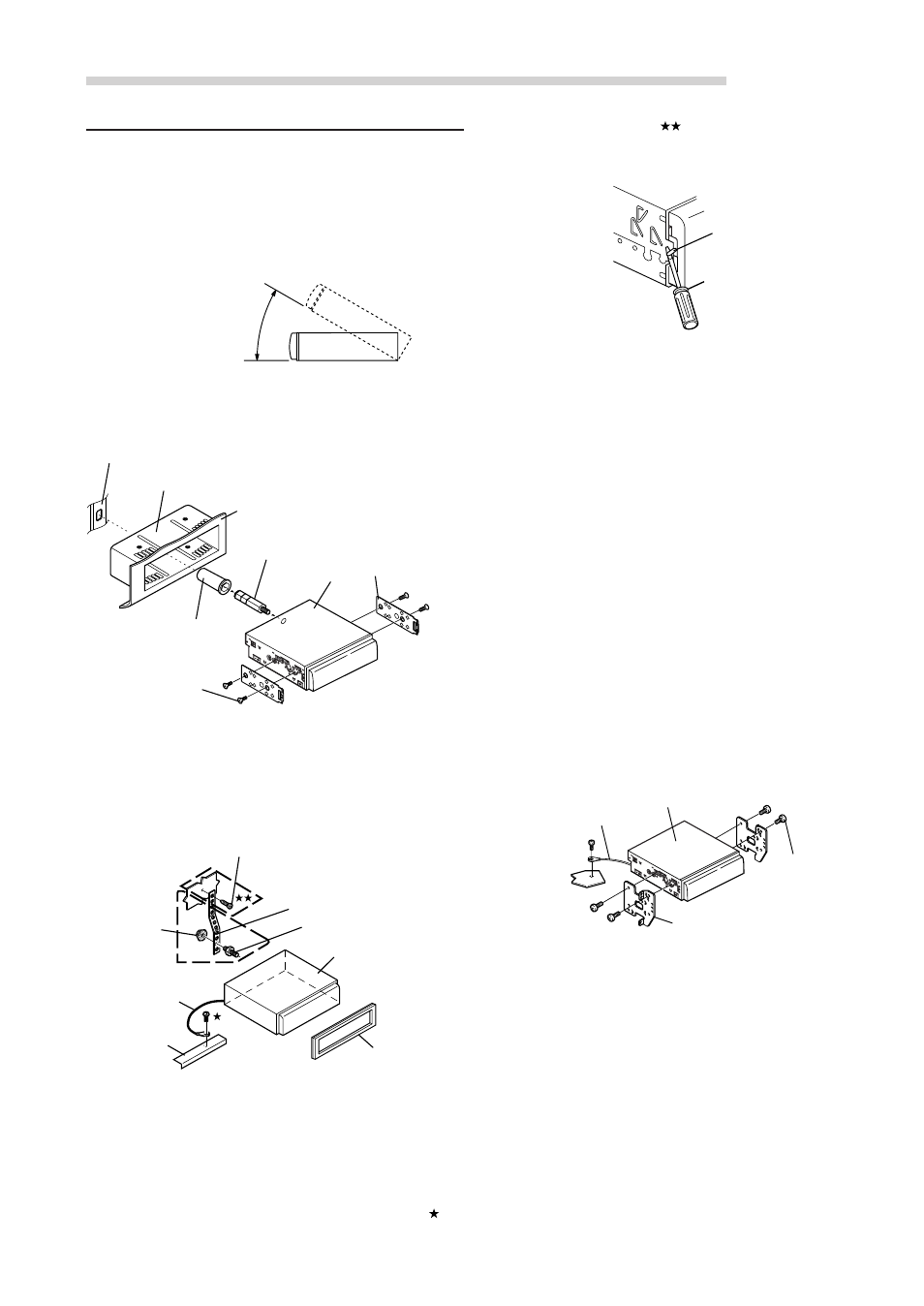

Installation
Installing the Monitor
• Location
Before final installation, make sure the display
will not hamper gear shifting when it is opened
and closed in the chosen location.
NOTE
Install at an angle within 30 degrees from horizontal.
1
Slide mounting sleeve from main unit (see
Removal Procedure below). Slide the mounting
sleeve into the dashboard. Install the supplied
bracket to the monitor.
2
When your vehicle has the Bracket, mount the
long hex bolt onto the rear panel of the CVA-
1003R and put the Rubber Cap on the hex bolt. If
your vehicle does not have the Mounting Support,
reinforce the monitor unit with the metal mounting
strap (not supplied). Secure the ground lead of
the unit to a clean metal spot using a screw ( )
already attached to the vehicle's chassis.
Installation and Connections
3
Slide the CVA-1003R into the dashboard. When
the unit is in place, make sure the locking pins
are fully seated in the down position. This can be
done by pressing firmly in on the unit while
pushing the locking pin down with a small
screwdriver. This ensures that the unit is properly
locked and will not accidentally come out from
the dashboard. Install the Supplied Front Frame.
Removal
1 Use a small screwdriver (or similar tool) to
push the locking pins to the "up" position (see
above drawing). As each pin is unlocked,
gently pull out on the unit to make sure it does
not re-lock before unlocking the second pin.
2 Pull the unit out, keeping it unlocked as you do
so.
Installation using the vehicle's Factory brackets.
NOTE
For the screw marked , use an appropriate screw for
the chosen mounting location.
Screws(M4x5)
(Included)
Mounting Bracket
(Included)
Dashboard
Mounting Sleeve
(Included)
CVA-1003R
Bracket
Rubber Cap
(Included)
Hex Bolt
(Included)
CVA-1003R
Screws
(M4x5)
Mounting Bracket
Ground Lead
Lock Pin
Screw
Hex Nut
(M5)
Chassis
Ground Lead
CVA-1003R
Front Frame
(Included)
Metal Mounting Strap
Bolt Stud
