1 Description
AC/DC switching mode power supplies provide 90 Watts of Max output power
Operation at input AC 100V to 240V 47-63Hz,, with protection: Overload protection,
Short Circuit Protection, power supply by mains supply. With 10PCS tip connecter to suit to
almost Laptops, Select output voltage to suit to Laptop and make sure the polarity of tips
connect correct before use
2 Specification
1.Input:100-240V
2.Output Voltage: 15V/16V/18V/19V/20V DC at 4.5 A max or 22V/24V DC at 3.75 A max
3.With 10 output pin can use for mostly netbook/Laptop models.
3 Test Circuit

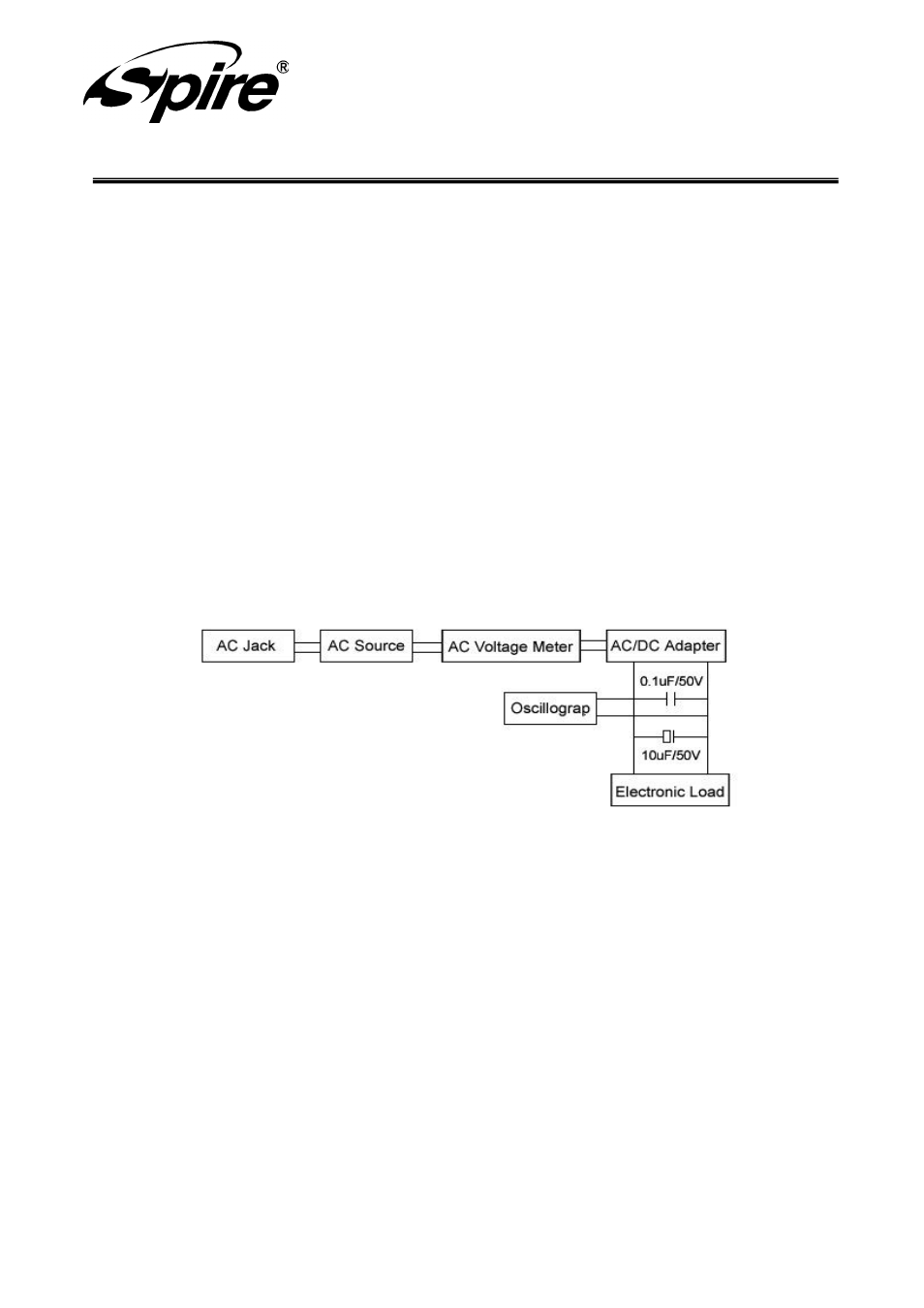

If the test is to be made on a specified circuit, be sure to use the following circuit.
4 Input Characteristics
4.1 Input Voltage:
Nominal Voltage:100-240Vac
Variation Range :90-264Vac
4.2 Input Frequency:
Nominal Frequency:50/60Hz
Variation Frequency:47-63Hz
