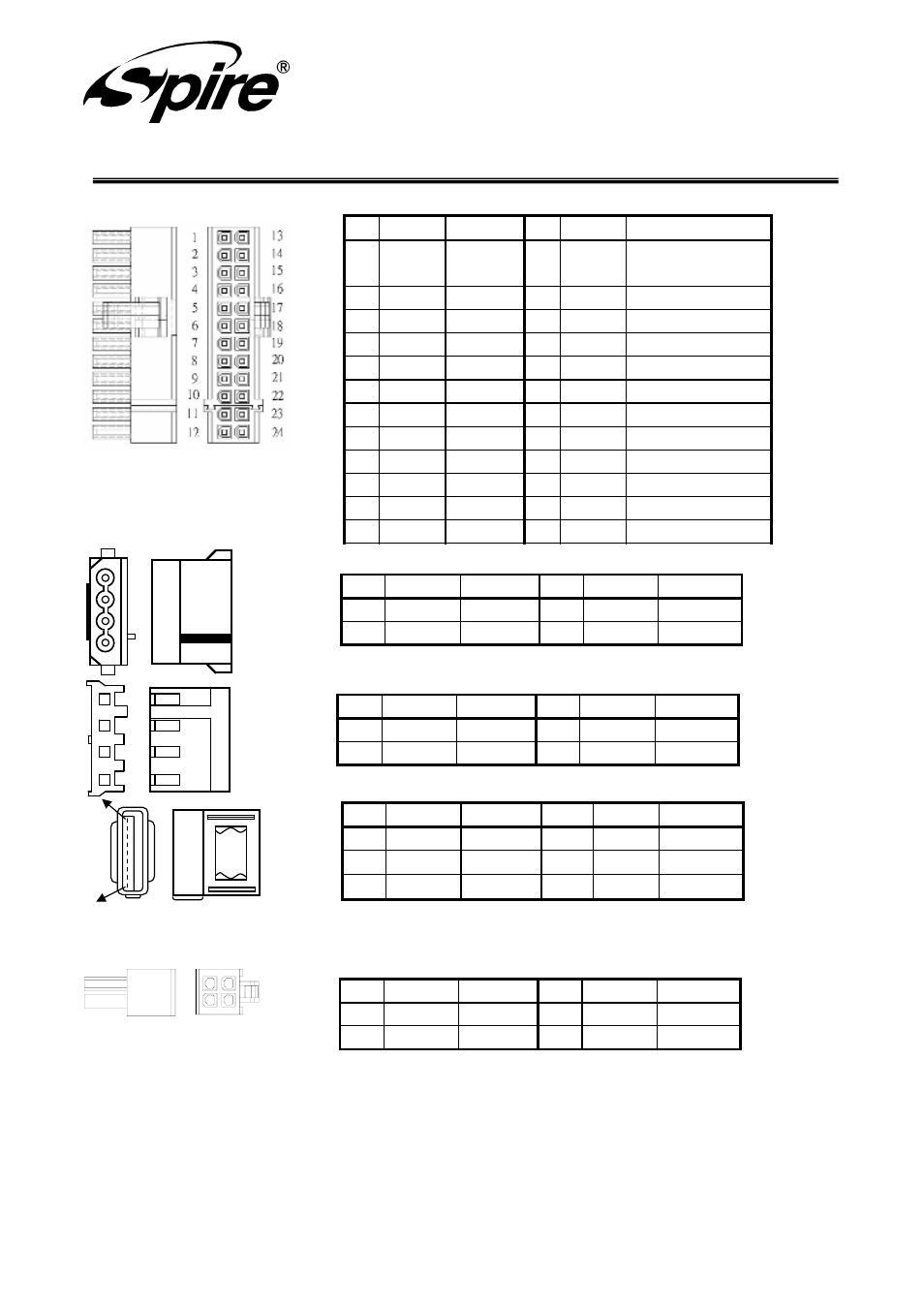

3.2 DC Connector Pin Description
1
2
4
3
Pin Color Signal Pin Color Signal
1 Red +5VDC 3 Black COM
2 Black COM 4 Yellow +12VDC
Pin Color Signal Pin Color Signal
1 Red +5VDC 3 Black COM
2 Black COM 4 Yellow +12VDC
Pin Color Signal Pin Color Signal
1 Black COM 3 Yellow +12VDC
2 Black
COM 4 Yellow +12VDC
1
2
3
4
1
2
3
4
Pin Color Signal Pin Color Signal
1
Orange
Orange
+3.3VDC
+3.3VDC
13 Orange +3.3VDC
2 Orange +3.3VDC 14 Blue -12VDC
3 Black COM 15 Black COM
4 Red +5VDC 16 Green PS_ ON/OFF
5 Black COM 17 Black COM
6 Red +5VDC 18 Black COM
7 Black COM 19 Black COM
8 Gray PWR_ OK 20 NG NG
9 Purple +5VSB 21 Red +5VDC
10 Yellow +12VDC 22 Red +5VDC
11 Yellow +12VDC 23 Red +5VDC
12 Orange +3.3VDC 24 Black COM
1
15P
15
Pin Color Signal Pin Color Signal
1-3 Orange +3.3VCD 10-12 Black GND
4-6 Black GND 13-15 Yellow +12VCD
7-9 Red +5VCD
