Blodgett KTC-G Series - Manual (Page 30)

28 OM-KTT/KTC-G

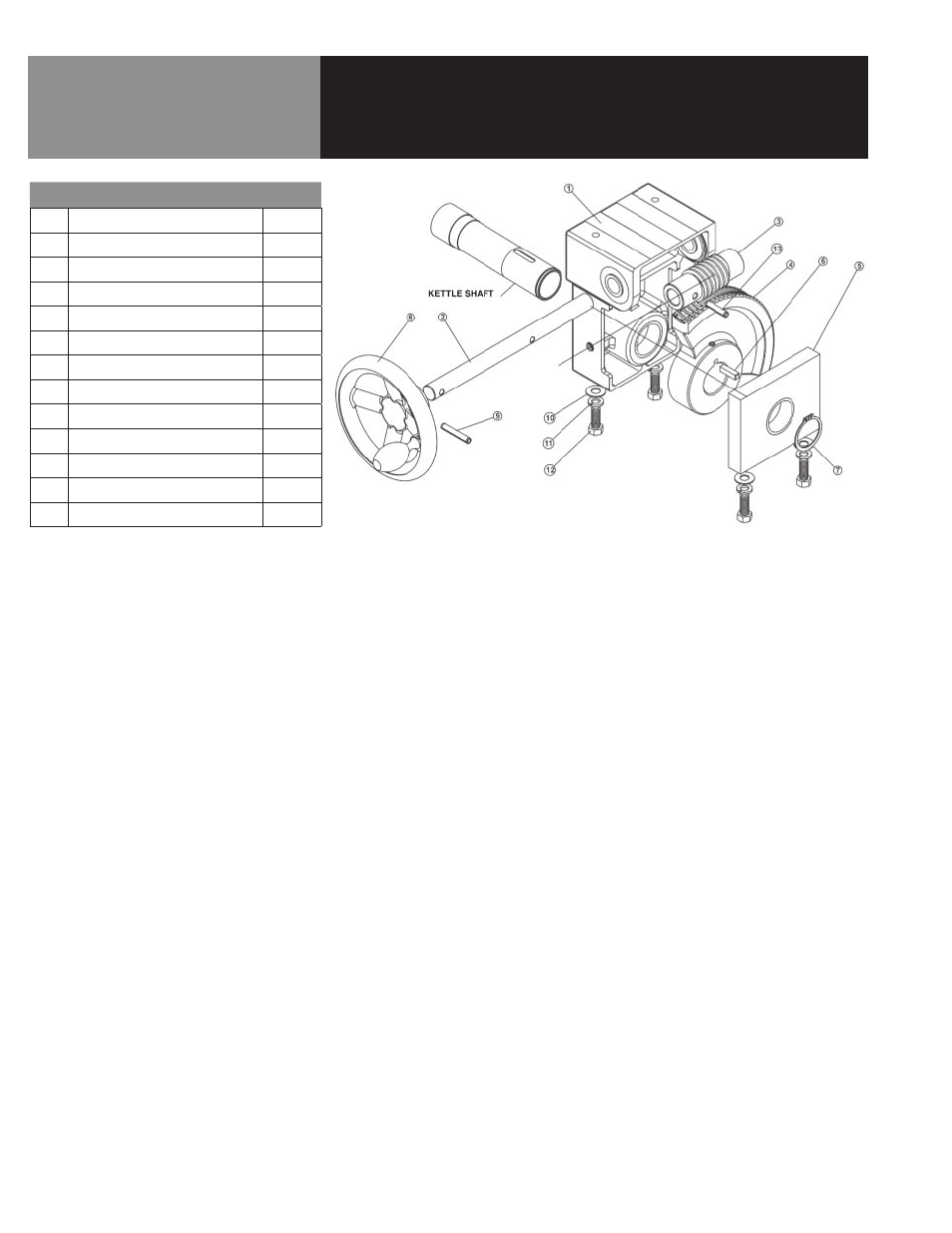

Parts List
Crank Tilt Units Only
Key Description Part No.
1 ASSEMBLY, GEAR CARRIER 124741
2 SHAFT, WORM 122374
3 GEAR, WORM 128001
4 ASSEMBLY, GEAR SECTOR 128028
5 ASSEMBLY, BEARING BLOCK 128021
6 KEY, 1/4 SQ X 1” LG. 122371
7 RETAINING RING 1.500 124764
8 ASSEMBLY, HANDWHEEL 124719
9 PIN, ROLL 1/4” X 1.63 LG. 128036
10 WASHER, FLAT 3/8” 005830
11 WASHER, LOCK 3/8” 005618
12 SCREW, 3/8-16 X 1” HEX HD 005612
13 PIN, ROLL 1/4” X 1.25” LG. 012614
