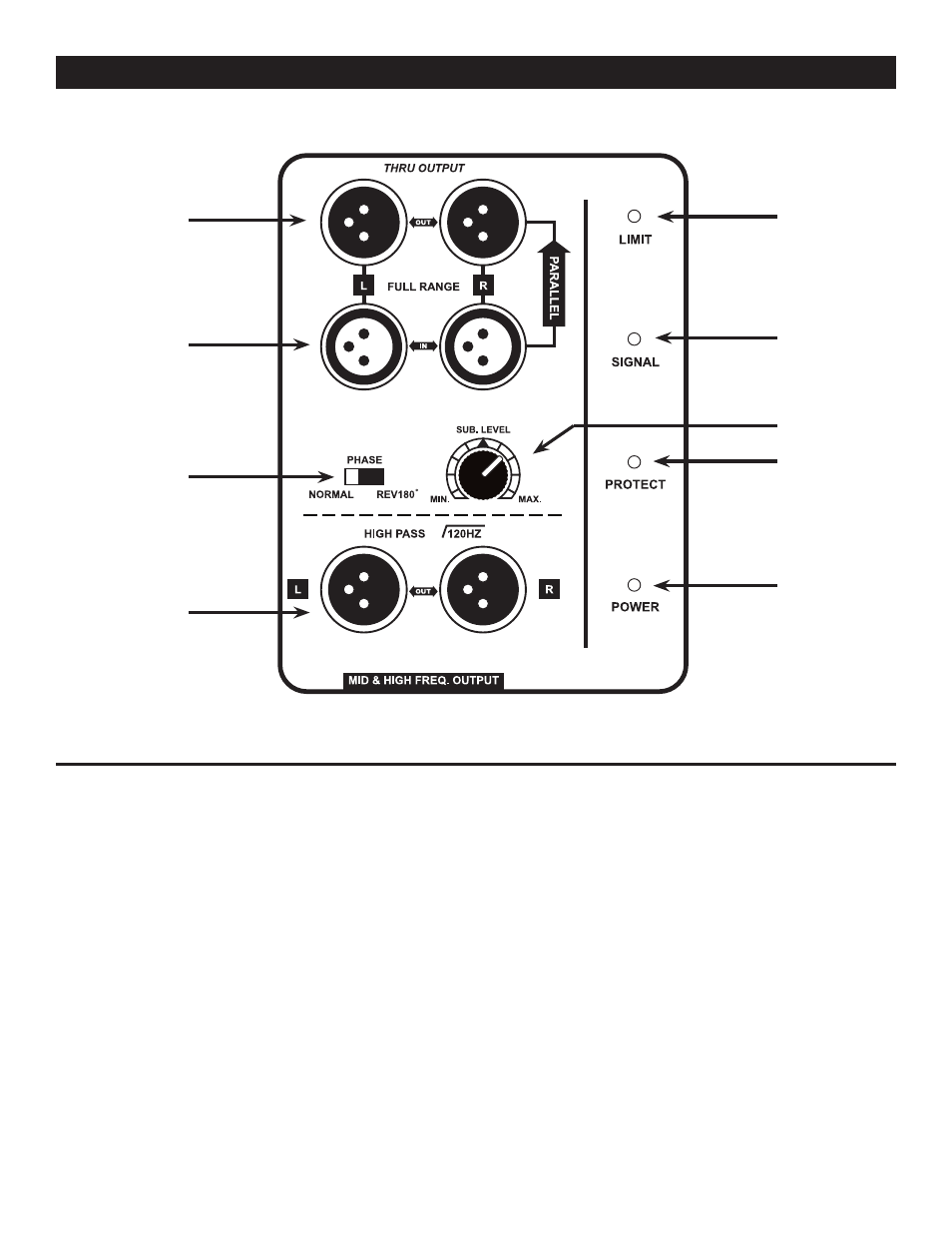

Subwoofer Rear Panel:
1. LIMIT INDICATOR – The LIMIT INDICATOR will blink on occasion when built-in limiter is
active. NOTE: If the indicator glows or starts to blink frequently, you should turn down
the SUBWOOFER LEVEL.
2. SIGNAL INDICATOR – The SIGNAL INDICATOR will glow when when there is a signal received
to the FULL RANGE input.
3. SUBWOOFER GAIN CONTROL – This knob is used to regulate the output level of the sub-
woofer. Use this to set the balance between the speakers and subwoofers.
4. PROTECT INDICATOR – The PROTECT INDICATOR will begin to glow when the subwoofer goes
into protect mode. Protect mode prevents the subwoofer amplifiers from getting to hot. When the sub-
woofer goes into protect mode all output will stop. This is to protect the subwoofer and any speakers
connected to the subwoofer
.
5. POWER LED - This L.E.D. will be lit when you switch on the power.
6. HIGH PASS XLR OUTPUT – These outputs are used to send the incoming signal to a full range
PXW 18P Controls and Features
