4 5 6

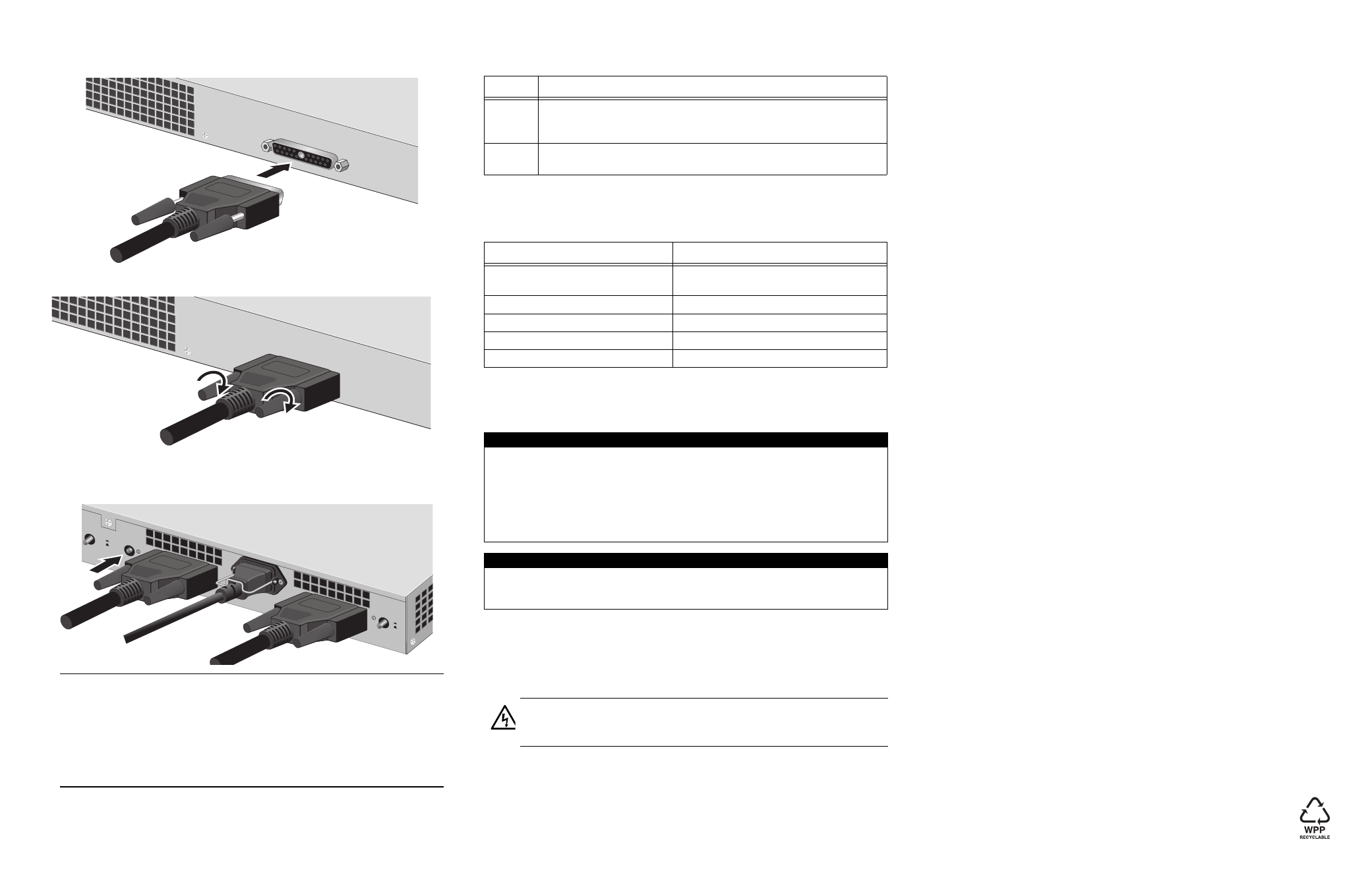

8. Plug the other end of the cable into the connector labeled “RPS INPUT” on
the back of an Allied Telesis switch.
9. Tighten the captive screws.
10. Press the On/Off switch for that power supply to move it to the On (in)
position.
Note
An AT-PWR3202 Power Supply is NOT hot-swappable into and out of the
AT-RPS3204 Redundant Power Supply. To replace an AT-PWR3202 unit,
first turn the power off using the appropriate On/Off switch and then remove
and replace the power supply.
To remove the connector cable, turn the power off first using the
appropriate On/Off switch.
LEDs
The power supply has one LED, labeled Status .
The RPS LED on the front of the Allied Telesis switch should be green. For more
information about the RPS LED, refer to the installation guide that is shipped with your
Allied Telesis switch.
Specifications
Electrical, Safety, and Emissions Statements
This product meets the following standards.
RFI Emissions EN 55022 Class A, EN61000-3-2, EN61000-3-3,
VCCI Class A
RFI Emissions EN 55022 Class A
IImmunity EN 55024
Electrical Safety UL 60950 (
C
UL
US
), EN 60950 (TUV)
Copyright © 2008 Allied Telesis, Inc. All rights reserved. No part of this publication may be reproduced
without prior written permission from Allied Telesis, Inc. www.alliedtelesis.com
RPS INPU
T
400
RPS INPUT
401
402
RPS OUTPU
T A2 12VDC
RPS OUTPU
T A1 12VDC
AC INPUT A2/A
1
100 - 240
VAC ~
ON
OFF
ON
OFF
A1
A2
Color Description
Amber Indicates a fault. The power supply may be faulty, or the power
supply is functioning properly but is not correctly connected to an
Allied Telesis switch.
Green The power supply is connected to an Allied Telesis switch and is
functioning normally.
Item Specification
Dimensions (H x W x D) 41.1 x 109 x 248.7 mm
(1.62 x 4.29 x 9.79 in.)
Operating Temperature 0° C to 40° C
Storage Temperature -20° C to 80° C
Relative Humidity <85% noncondensing
Supply Voltage 12 V
U.S. Federal Communications Commission
Radiated Energy
Note: This equipment has been tested and found to comply with the limits for a Class A digital device
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with this instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
Note: Modifications or changes not expressly approved of by the manufacturer or the FCC, can void
your right to operate this equipment.
Industry Canada
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Warning: In a domestic environment this product may cause radio
interference in which case the use may be required to take adequate
measures.
