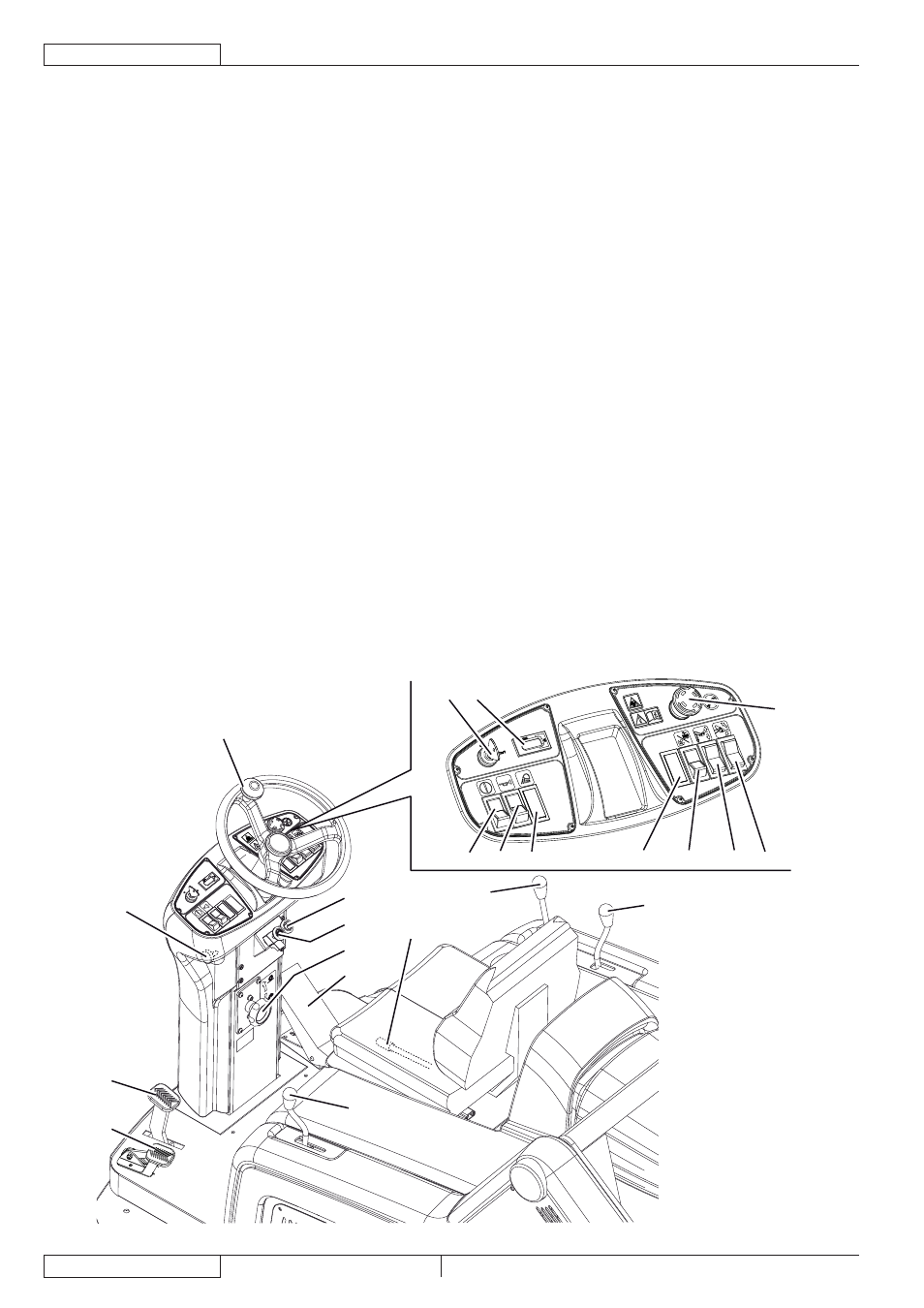

CONTROL PANEL
Hopper lifting/lowering/dumping enabling switch 61.
Horn switch 62.
Position for working light switch (optional) 63.
Main broom print adjusting knob 64.
Turn it counter-clockwise to increase the broom print •
Turn it clockwise to decrease the broom print •
Position for optional switch
65.
Switch 66.
(Lower position) vacuum system activation •
(Upper position) fi lter shaker activation •
Hopper lifting/lowering switch
67.
Hopper dumping switch 68.
Ignition key 69.
When turned to “0”, it turns the engine off and disables •
all functions.
When turned to “I”, it enables all machine functions; it
•
also turns on the fl ashing light.
When completely turned clockwise (“Start” position), it
•
starts the engine; when the engine is running release
the key, which returns to “I”.
Hour counter 70.
Emergency push-button Press it in case of emergency 71.
to stop all the machine functions. To deactivate the
emergency push-button, turn it in the direction shown by
the arrow.
Steering wheel
72.
Steering wheel tilting control knob 73.
Choke lever 74.
Parking brake lock control lever It locks the service brake 75.
(82) thus switching it to parking brake.
Forward/reverse gear pedal
76.
Right side broom lifting/lowering lever 77.
Left side broom lifting/lowering lever (optional) 78.
Seat longitudinal position adjusting lever 79.
Main broom lifting/lowering lever 80.
Front skirt lifting pedal 81.
Service brake pedal 82.
61 62
69
72
73
74
75
64
76
70
63 65 66 67 68
71
77
78
79
80
81
82
