POSITIONING THE SYSTEM

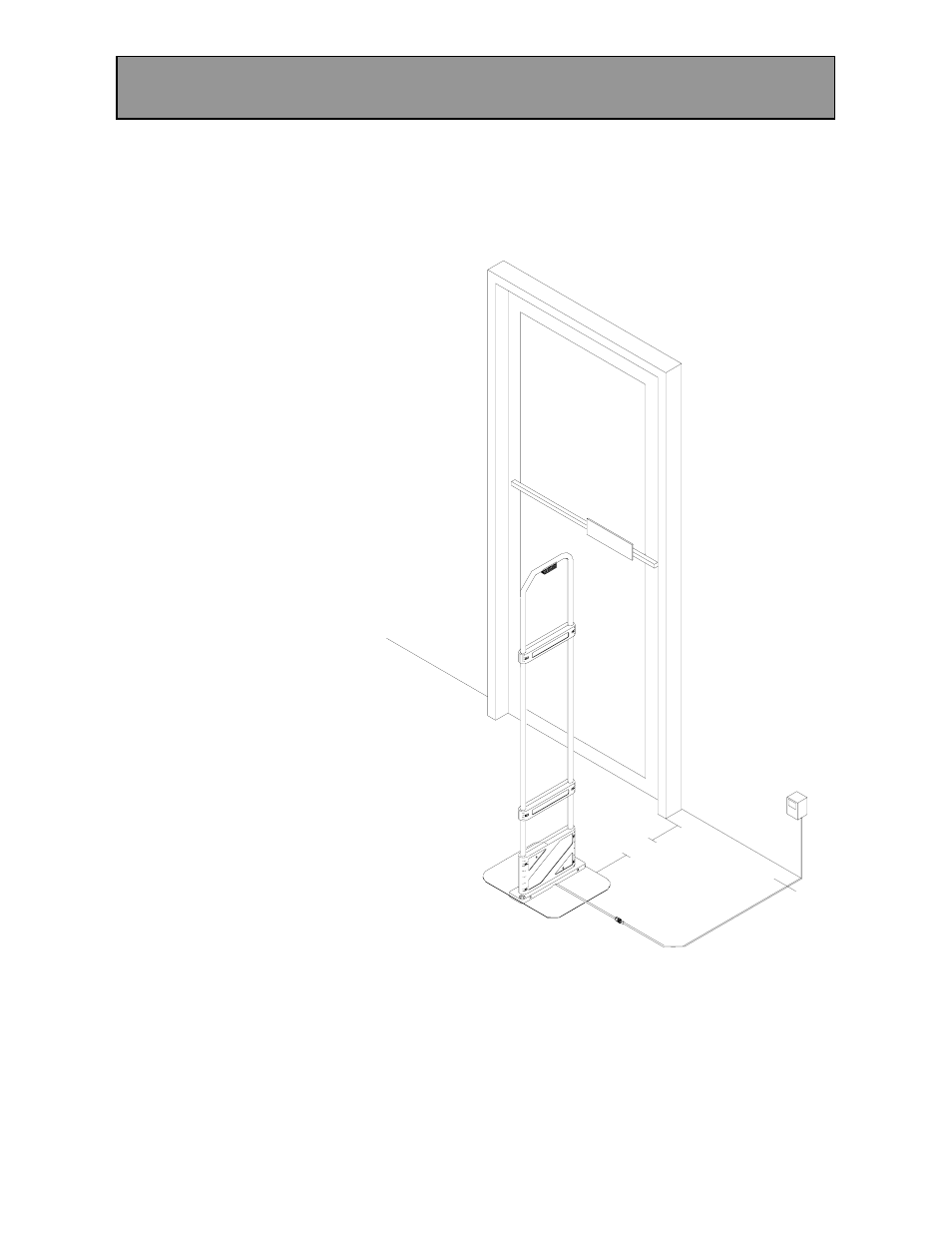

6. Position the system a
minimum of 18” (Inches) from
the doorframe and on the side
closest to the door handle.
7. Cut the rubber molding to the
length that will allow it to cover
the wire from the wall to the
system. You must cover the
wire, using a metal pancake
molding If the wire is in an
area where it will be walked
upon.
8. Insert the system power wire
into the rubber pancake
molding through the slit on the
back. Using double sided tape
fasten the rubber molding to
the floor.
9. Plug the power supply into the
closest outlet. We do not
recommend using an
extension cord for the system.
10. Test the system by placing
one of the hard tags into the
system. The system will beep
approximately 1-1/2 seconds
then reset. If a hard tag is held
in the system it will continue to
alarm.
18 Inches
Minimum
3
