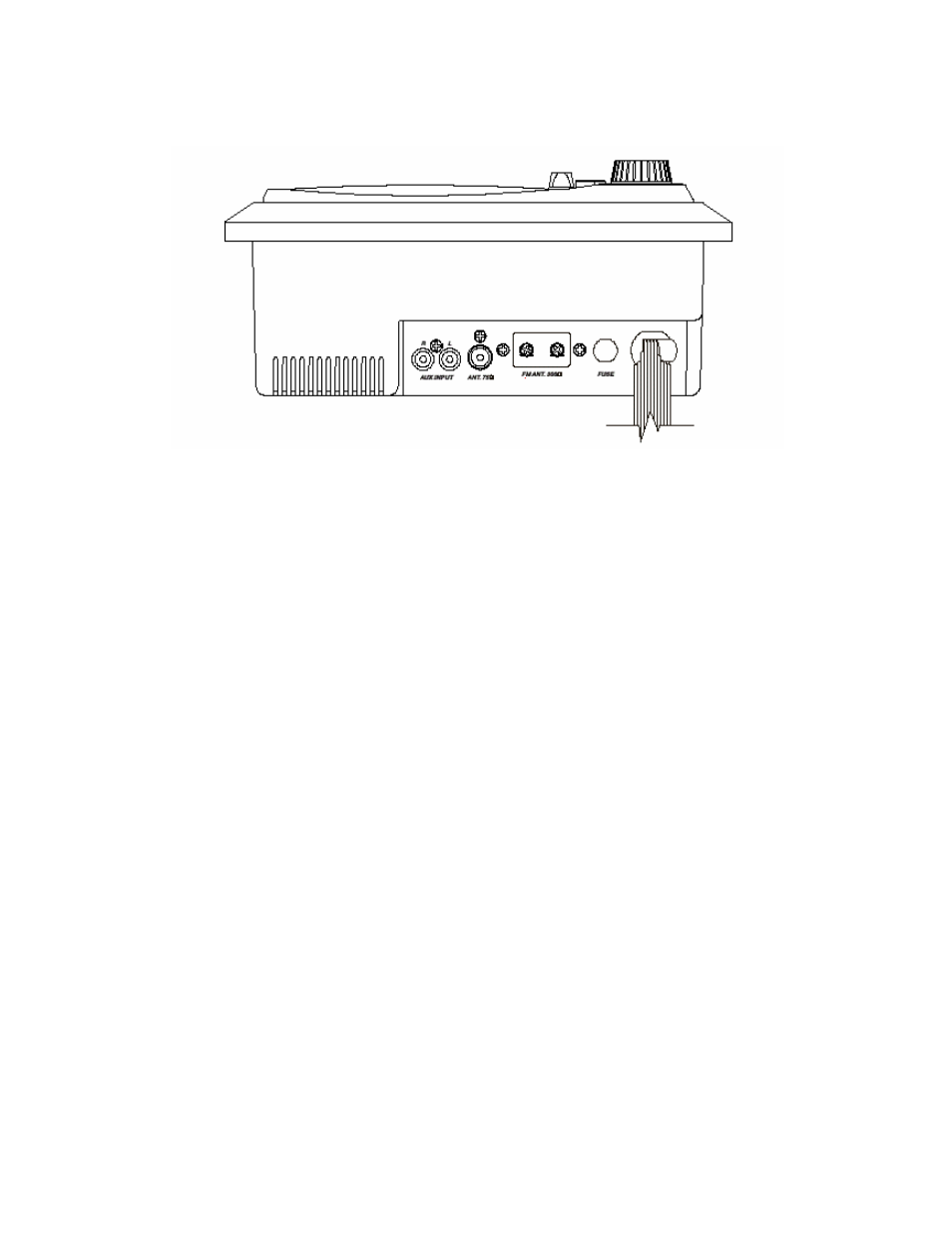

Wiring Color Code:
WIRING COLOR CODE
FOR AWM-900S
COLOR FUNCTION
ORANGE/WHITE STRIPE
+12VDC IGNITION POWER
GREEN/WHITE STRIPE
+12VDC BATTERY POWER
BLACK/WHITE STRIPE
POWER GROUND (-12VDC)
WHITE
LEFT (A) SPEAKER (+)
VIOLET
LEFT (A) SPEAKER (-)
BLUE
RIGHT (A) SPEAKER (+)
LIGHT GREEN
RIGHT (A) SPEAKER (-)
RED
LEFT (B) SPEAKER (+)
VIOLET/BLACK STRIPE
LEFT (B) SPEAKER (-)
YELLOW
RIGHT (B) SPEAKER (+)
LT GREEN/BLACK STRIPE
RIGHT (B) SPEAKER (-)
