Connecting to an Audio Device

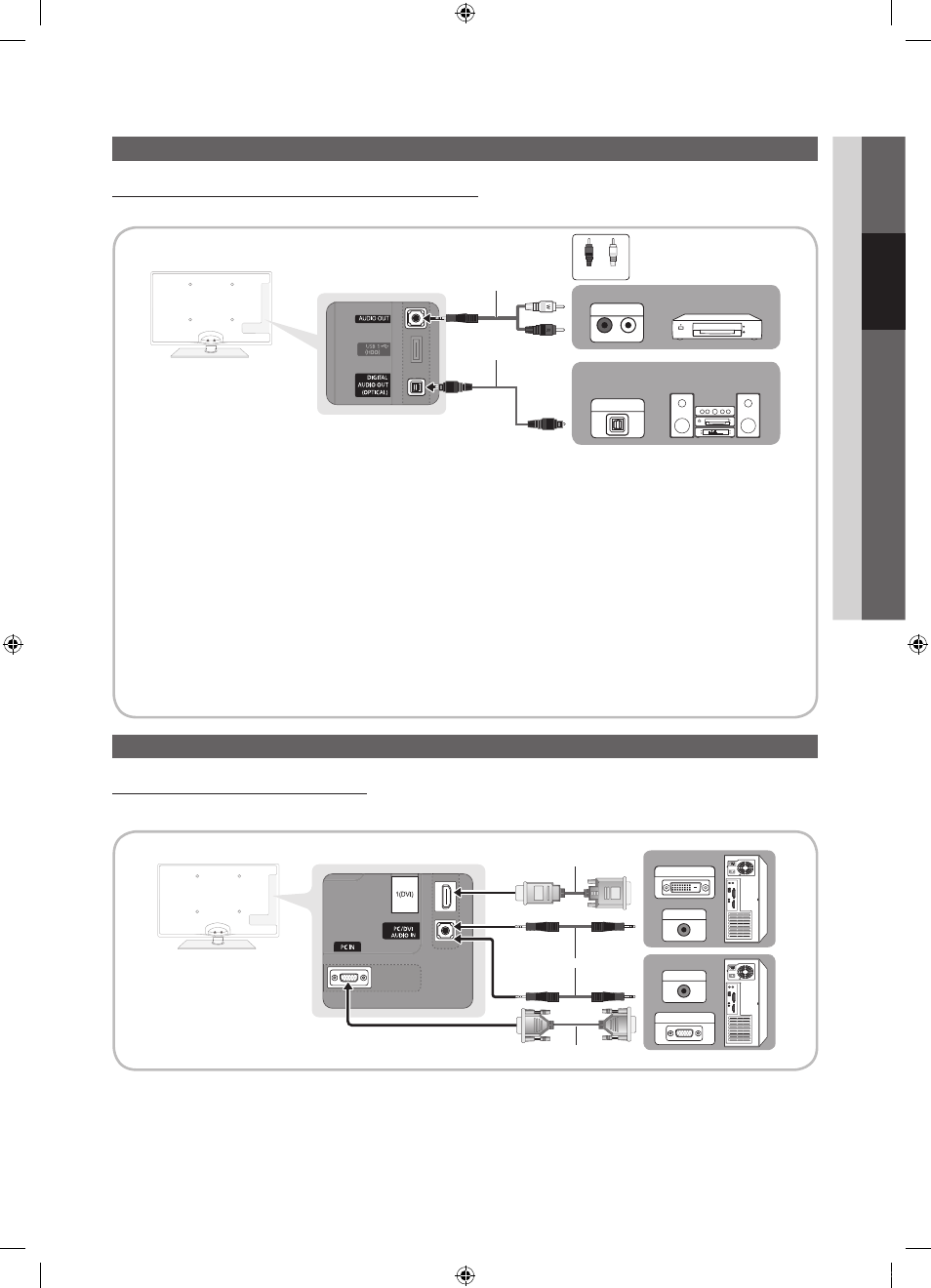

Using an Optical (Digital) or Audio (Analog) Cable Connection
Available devices: Digital Audio System, Amplifier, DVD home theater
✎
DIGITAL AUDIO OUT (OPTICAL)
x
When a Digital Audio System is connected to the
DIGITAL AUDIO OUT (OPTICAL)
jack, decrease the volume
of both the TV and the system.
x
5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.
x
When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the
TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is
a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is
connected to the TV via HDMI, only 2 CH audio will be heard from the home theater receiver. If you want to
hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite
receiver directly to an amplifier or home theater.
✎
AUDIO OUT
:
Connects to the audio input jacks on your amplifier/home theatre.
x
When connecting, use the appropriate connector.
x
When an audio amplifier is connected to the
AUDIO OUT
jacks: Decrease the volume of the TV and adjust the
volume level with the amplifier's volume control.
Connecting to a PC
Using an HDMI/DVI cable or a D-sub cable
AUDIO OUT
PC OUT
AUDIO OUT
DVI OUT
HDMI to DVI Cable
(Not Supplied)
Audio Cable (Not Supplied)
D-Sub Cable (Not Supplied)
R-AUDIO-L
AUDIO IN
OPTICAL
W
R
Amplifier,
DVD home theater
Digital Audio System
Red White
Audio Cable (Not Supplied)
Optical Cable (Not Supplied)
