Viewing the Connection Panel

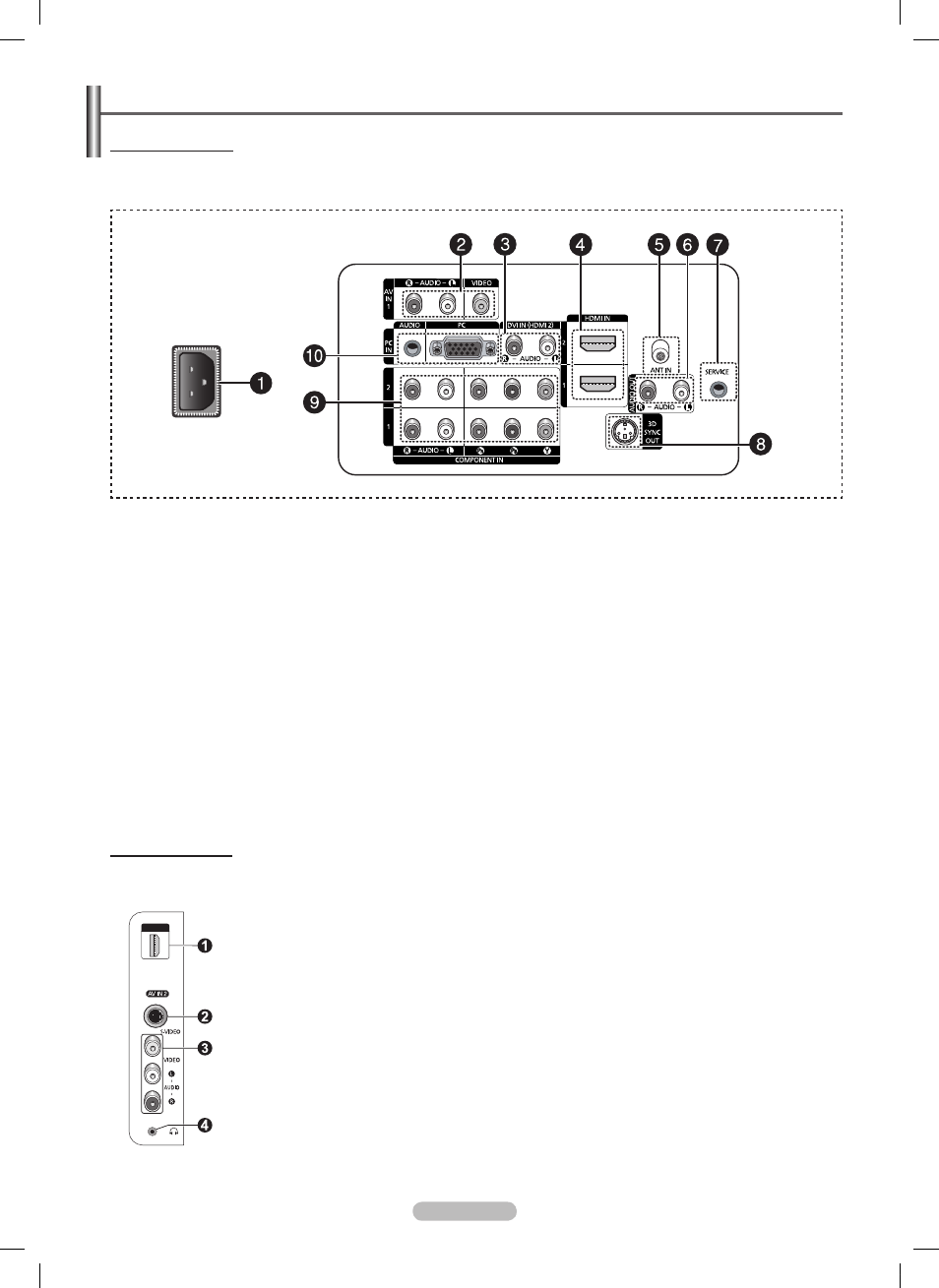

Rear Panel Jacks
Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players. For
more information on connecting equipment, see pages 9-15. The product color and shape may vary depending on the model.
1 POWER IN
Connect the supplied power cord.
2 AV IN 1(VIDEO / AUDIO R/L)
Connect RCA cable to an appropriate external A/V
device such as VCR, DVD or Camcorder.
3 DVI IN (HDMI 2) (AUDIO-R/L)
Connect to the DVI audio output jack of an external device.
4 HDMI IN 1, 2
Connect to the HDMI jack of a device with an HDMI
output. (HDMI IN 2 supports HDMI-DVI IN and
connection from a PC.)
- This input can also be used as a DVI connection with
separate analog audio inputs. An optional HDMI/DVI
cable will be necessary to make this connection.
- When using an optional HDMI/DVI adapter, the DVI
analog audio inputs on your TV allow you to receive left
and right audio from your DVI device.
5 ANT IN
Connects to an antenna or cable TV system.
6 AUDIO OUT (R/L)
Audio outputs to external devices.
7 SERVICE
For service only.
8 D SYNC OUT
Connect to 3D IR Emitter.
9 COMPONENT IN 1, 2
Connects Component video/audio.
0 PC IN[PC]/[AUDIO]
Connect to the video and audio output jack on your PC.
Side Panel Jacks
Use the right side panel jacks to connect a component that is used only occasionally, such as a camcorder or video game.
The product color and shape may vary depending on the model.
1 HDMI IN
Connect to the HDMI jack of a device with HDMI output.
2
S-VIDEO (AV IN 2)
S-Video input for external devices with an S-Video output.
3
AV IN 2(VIDEO / AUDIO R/L)
Video and Audio inputs for external devices.
4
HEADPHONE
You can connect a set of headphones if you wish to watch a television program without
disturbing other people in the room.
HDMI IN 3
