Components (Sold separately)
1 Mark the location on the wall where the hole will be drilled.
Make over 35 mm-depth-hole on the marked location using drill.
Fix anchors on each hole on the wall.
Connect wall-bracket to the wall with wood screws after fitting anchors into the wall-bracket .
Note: If the bracket is not firmly fixed to the wall, LCD TV can fall off.
2 Turn the power off and unplug the power cord from the outlet.
Place the TV faced down on a soft cloth or cushion on a table.
Attach the set-bracket onto the rear side of the TV set and secure the screws .
3 Insert three Hangers of the set-bracket into the grooves of the wall-bracket .
Fix set-bracket and wall-bracket with screws .
Note: Before installing the TV on the wall, first connect the cables.
Wall-Bracket Set-Bracket Screw: 8 EA Wood Screw: 7 EA Anchor: 7 EA Screw: 3 EA Installation Guide
M4 X L20 M6 X L14

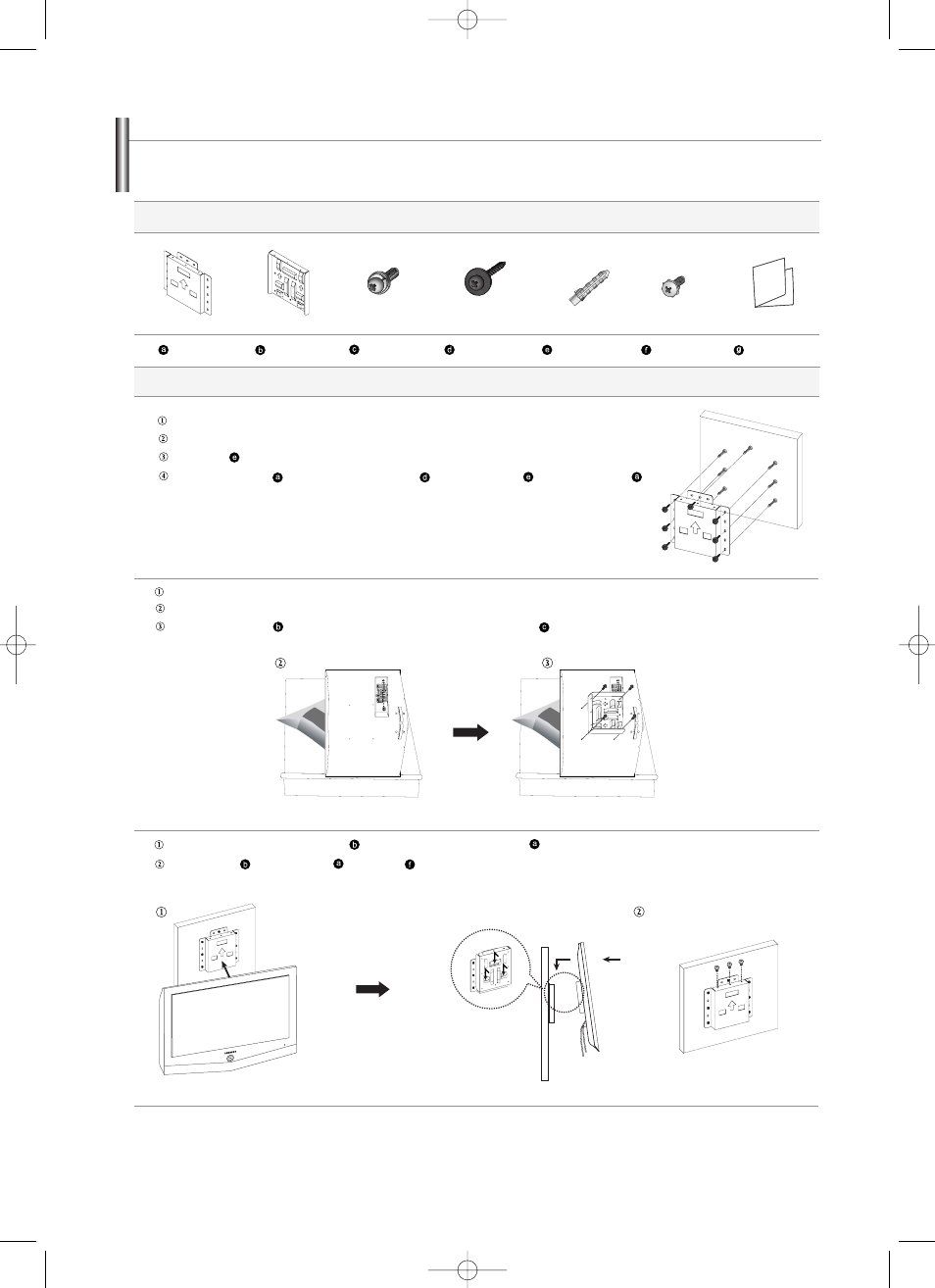

Installing the Wall Mount Kit (LN-S3238D, LN-S3738D)
This installation is to be used when attaching the wall mount to a wall.
When attaching to other building materials, please contact your nearest dealer.
This LCD TV accepts a 200 mm x 200 mm VESA-compliant mounting interface pad.
How to assemble the Wall Mount Bracket
