English-12

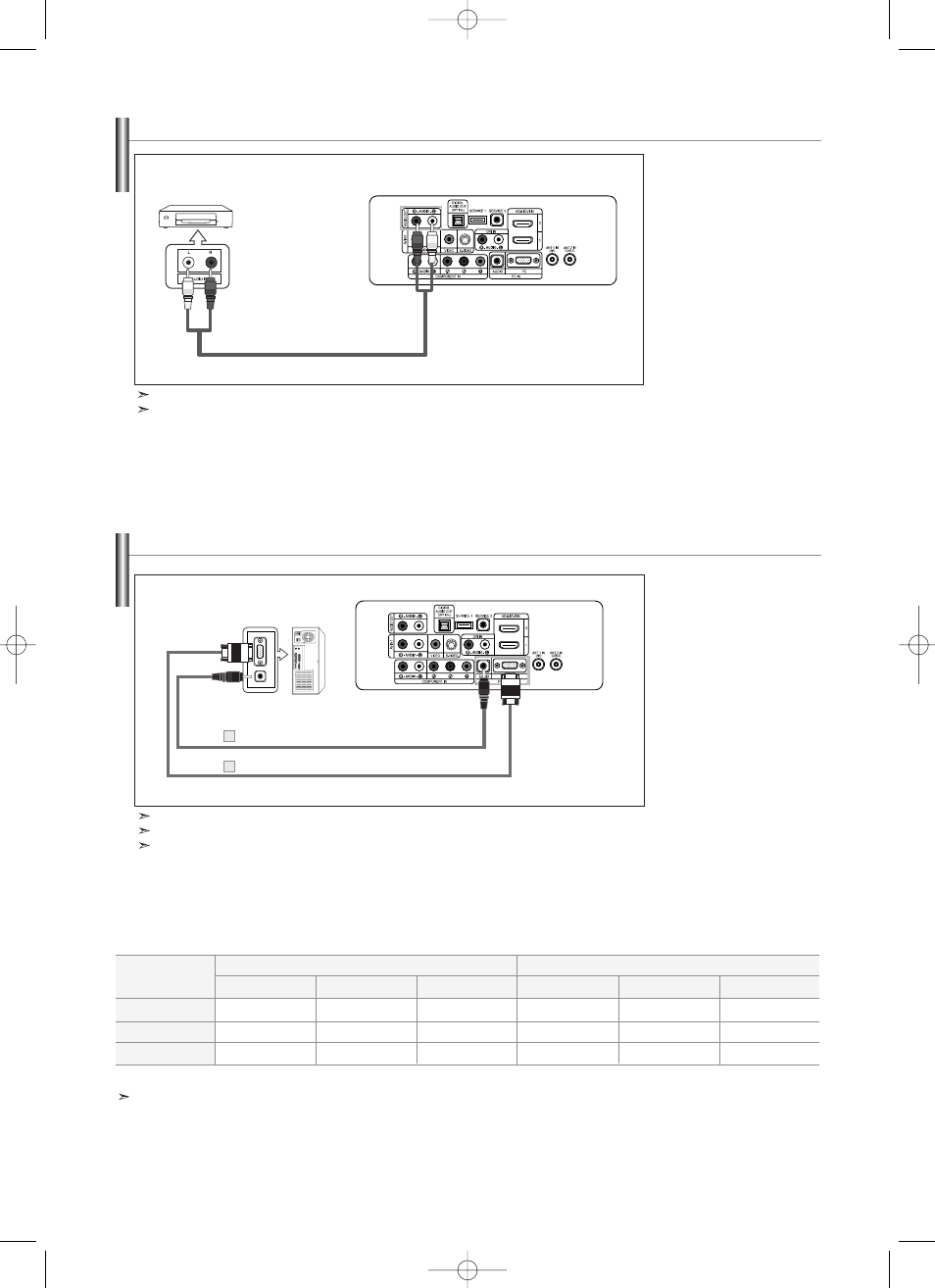

Connecting a PC
1. Connect a D-Sub Cable
between PC IN [PC]
connector on the TV and
the PC output connector
on your computer.
2. Connect a PC Audio
Cable between PC IN
[AUDIO] jack on the TV
and the Audio Out jack
of the sound card on
your computer.
PC
TV Rear Panel
D-Sub Cable (Not supplied)
PC Audio Cable (Not supplied)
Each PC has a different back panel configuration.
When connecting a PC, match the color of the connection terminal to the cable.
The HDMI/DVI jacks do not support PC connection.
Connecting an Amplifier/DVD Home Theater
1. Connect Audio Cables
between the AUDIO
OUT [R-AUDIO-L] on the
TV and AUDIO IN
[R-AUDIO-L] on the
Amplifier/DVD Home
Theater.
When an audio amplifier
is connected to the
“AUDIO OUT
[L-AUDIO-R]” terminals:
Decrease the gain
(volume) of the TV, and
adjust the volume level
with the Amplifier’s
volume control.
Amplifier/DVD Home Theater
TV Rear Panel
Audio Cable (Not supplied)
1
2
Each Amplifier/DVD Home Theater has a different back panel configuration.
When connecting an Amplifier/DVD Home Theater, match the color of the connection terminal to the
cable.
Internal Mute Off
Internal Mute On
Video No Signal
RF
Speaker Output
Mute
Mute
Internal Speakers
AV, S-Video
Speaker Output
Mute
Mute
Component, PC, HDMI
Speaker Output
Mute
Mute
RF
Sound Output
Sound Output
Mute
AV, S-Video
Sound Output
Sound Output
Mute
Component, PC, HDMI
Sound Output
Sound Output
Mute
When “Internal mute” is set to “On”, Sound menu except “Multi-Track Options” cannot be adjusted.
See Selecting the Internal Mute on page 30.
Audio Out (Optical, L/R Out)
