Viewing the Connection Panel
1 2 3 4 5
8
9 6 7

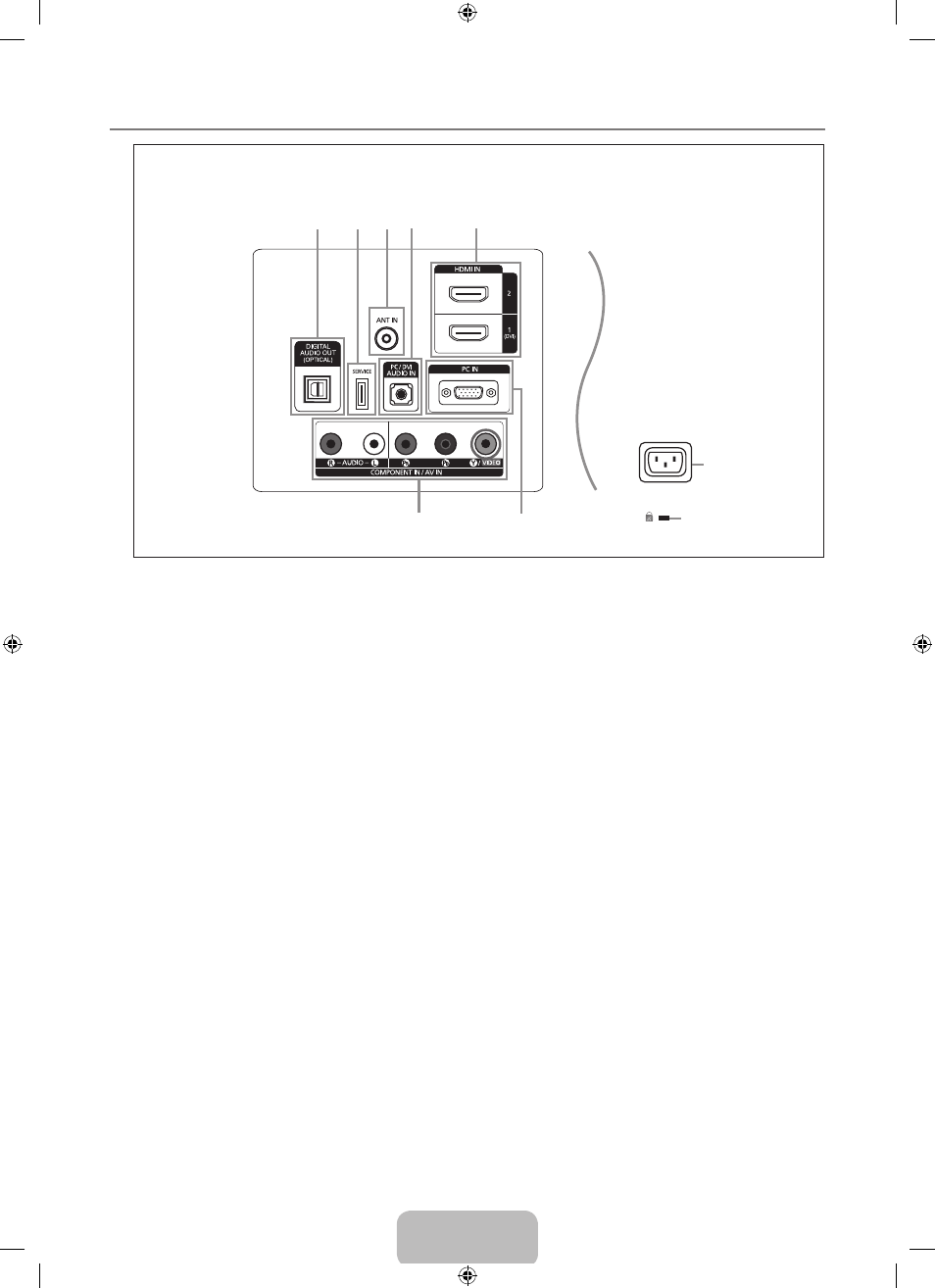

[TV Rear Panel]
The product color and shape may vary depending on the model.
1 DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component such as a Home theater receiver.
2 SERVICE
Connector for service only.
3 ANT IN
Connects to an antenna or cable TV system.
4 PC / DVI AUDIO IN
Connect to the audio output jack on your PC.
DVI audio outputs for external devices.
5 HDMI IN 1(DVI), 2
Connects to the HDMI jack of a device with an HDMI output.
No additional Audio connection is needed for an HDMI to HDMI connection.
What is HDMI?
HDMI(High-Definition Multimedia Interface), is an interface that enables the transmission of digital audio and video
signals using a single cable.
The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP
(High Bandwidth Digital Copy Protection) coding feature installed.
Use the HDMI IN 1(DVI) jack for DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI
adapter(DVI to HDMI) for video connection and the PC / DVI AUDIO IN jacks for audio. When using an HDMI/DVI cable
connection, you must use the HDMI IN 1(DVI) jack.
¦
N
–
–
–
–
–
–
N
N
●
●
N
