PF-115HE / PF-210HE Speaker Cabinet
3
HIGH
FREQUENCY
ATTENUATOR FULL RANGE
INPUTS OFF –6
0
IMPEDANCE: 8 OHMS
POWER: 400W RMS
PF-xxxHE
1 2

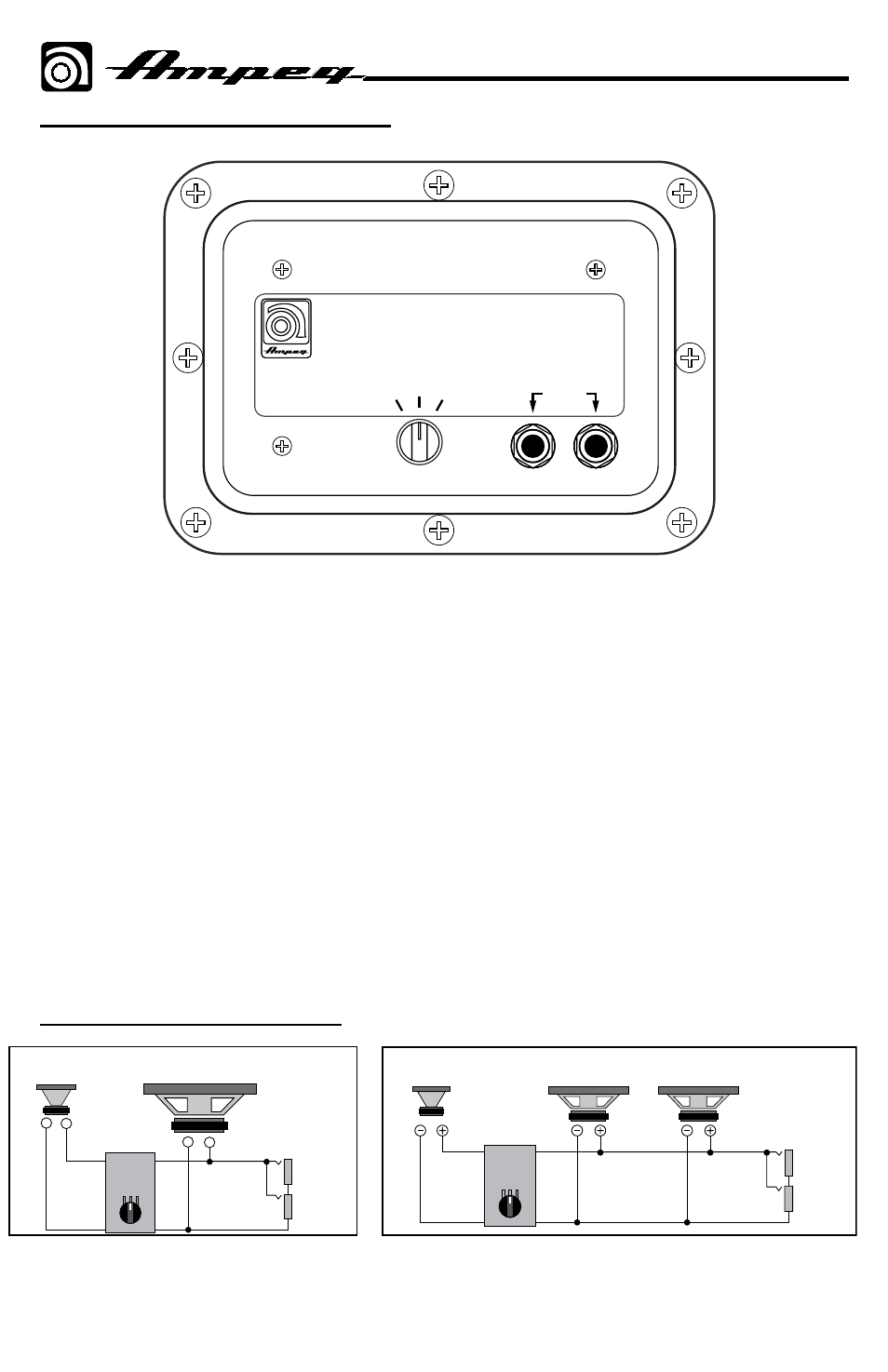

Rear Panel Connector Plate
System Block Diagrams
1. 1/4" TS Full Range Input / Output Jacks: The jackplate features two 1/4" jacks wired
in parallel, allowing easy daisy-chaining from one speaker to another. Each of the jacks
may be used as an input or a through connection.
Connect the speaker-level output of your amplifier to the cabinet’s input jack using a good
quality (non-shielded) speaker cable (included). Never use (shielded) instrument cable to
connect speakers to an amplifier.
You can utilize the unused jack as an output/through jack to connect a second 8 ohm
speaker cabinet in parallel. This will present a total load of 4 ohms to the amplifier.
2. High Frequency Horn Level Switch: The three-position HF Horn switch allows for:
• Full high frequency output (0 setting)
• High frequencies reduced by 6 dB (–6 setting)
• Horn shutoff (off setting)
PF-115HE PF-210HE
–
15" EMINENCE
8 OHM SPEAKER
TWO
PARALLEL
JACKS
+
–
COMPRESSION
DRIVER
+
CROSS
OVER
10" EMINENCE
16 OHM SPEAKERS
TWO
PARALLEL
JACKS
COMPRESSION
DRIVER
CROSS
OVER
