English - 1

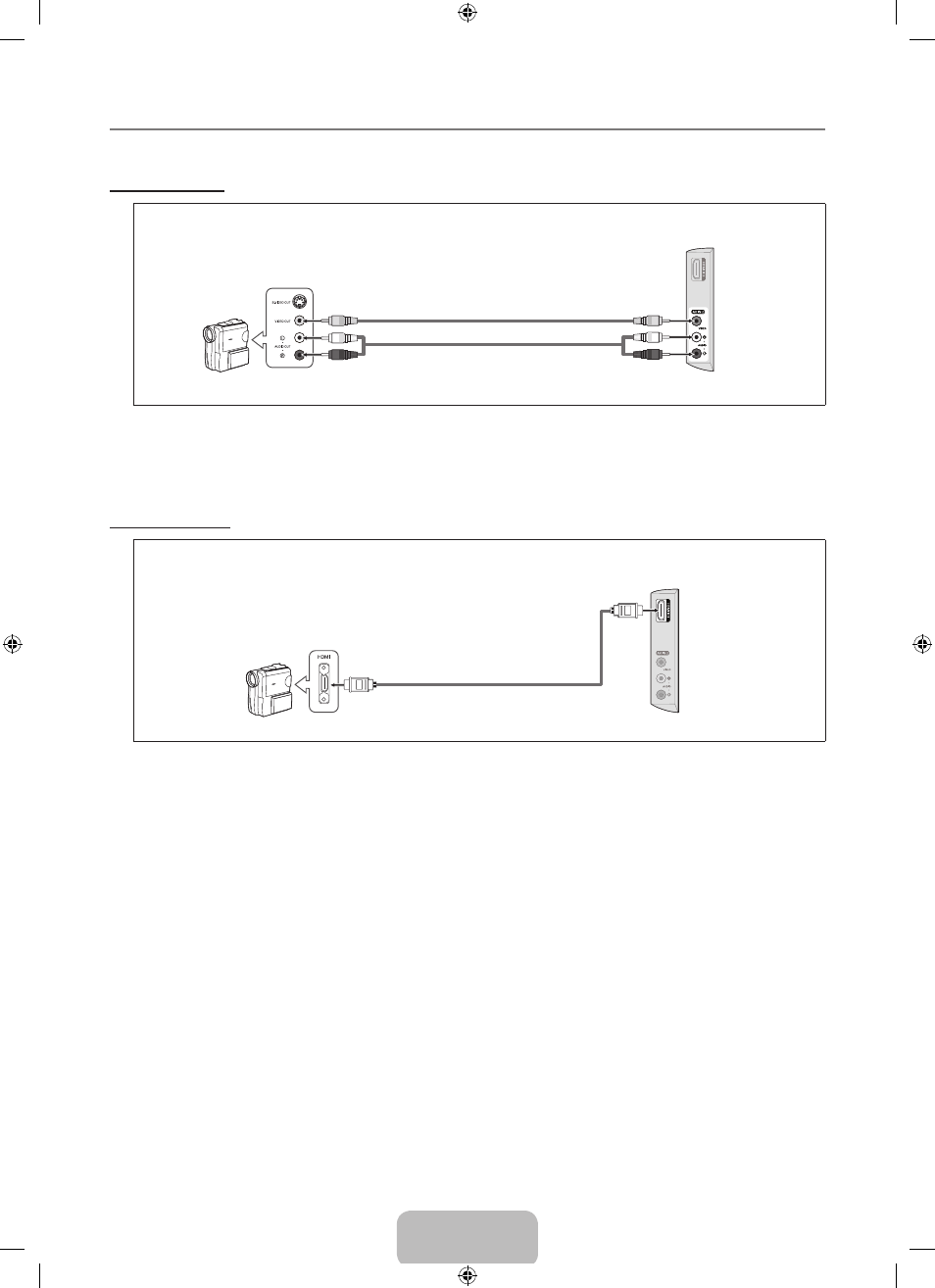

Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a camcorder to your TV.
Using a Video Cable
1. Connect a Video Cable between the AV IN 2 [VIDEO] jack on the TV and the VIDEO OUT jack on the camcorder.
2. Connect Audio Cables between the AV IN 2 [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the camcorder.
Each Camcorder has a different back panel configuration.
When connecting a Camcorder, match the color of the connection terminal to the cable.
Using an HDMI Cable
1. Connect a HDMI Cable between the HDMI 3 jack on the TV and the HDMI OUT jack on the camcorder.
¦
N
N
N
1 Video Cable (Not supplied)
2 Audio Cable (Not supplied)
Camcorder
HD Camcorder
1 HDMI Cable (Not supplied)
TV Side Panel
TV Side Panel
