Connecting a DTV Receiver
(480p, 720p, 1080i)
This PDP displays the optimum picture in 720p mode.
20
Watching DTV
Connect the cable or antenna to the antenna input jack on the DTV.
Connect a video cable between the Y, P
b
, P
r
(COMPONENT 1, 2) or DVI jack on the PDP
and the Y, P
B
, P
R
(COMPONENT) or DVI output jacks on the DTV receiver.
Connect an audio cable between the COMPONENT 1, 2 (L/R AUDIO) or DVI (L/R AUDIO)
jacks on the PDP and the AUDIO OUTPUT jacks on the DTV receiver.
Notes
• Please be sure to match the color-coded input terminals and cable jacks.
• Connecting a PC using the DVI connection is not supported.
To Watch DTV:
1. Turn on your PDP.
2. Press the SOURCE button to select “COMPONENT1”, “COMPONENT2” or “DVI”.
3. Turn on your DTV receiver.
• For an explanation of Component video, see your DTV receiver owner’s instructions.

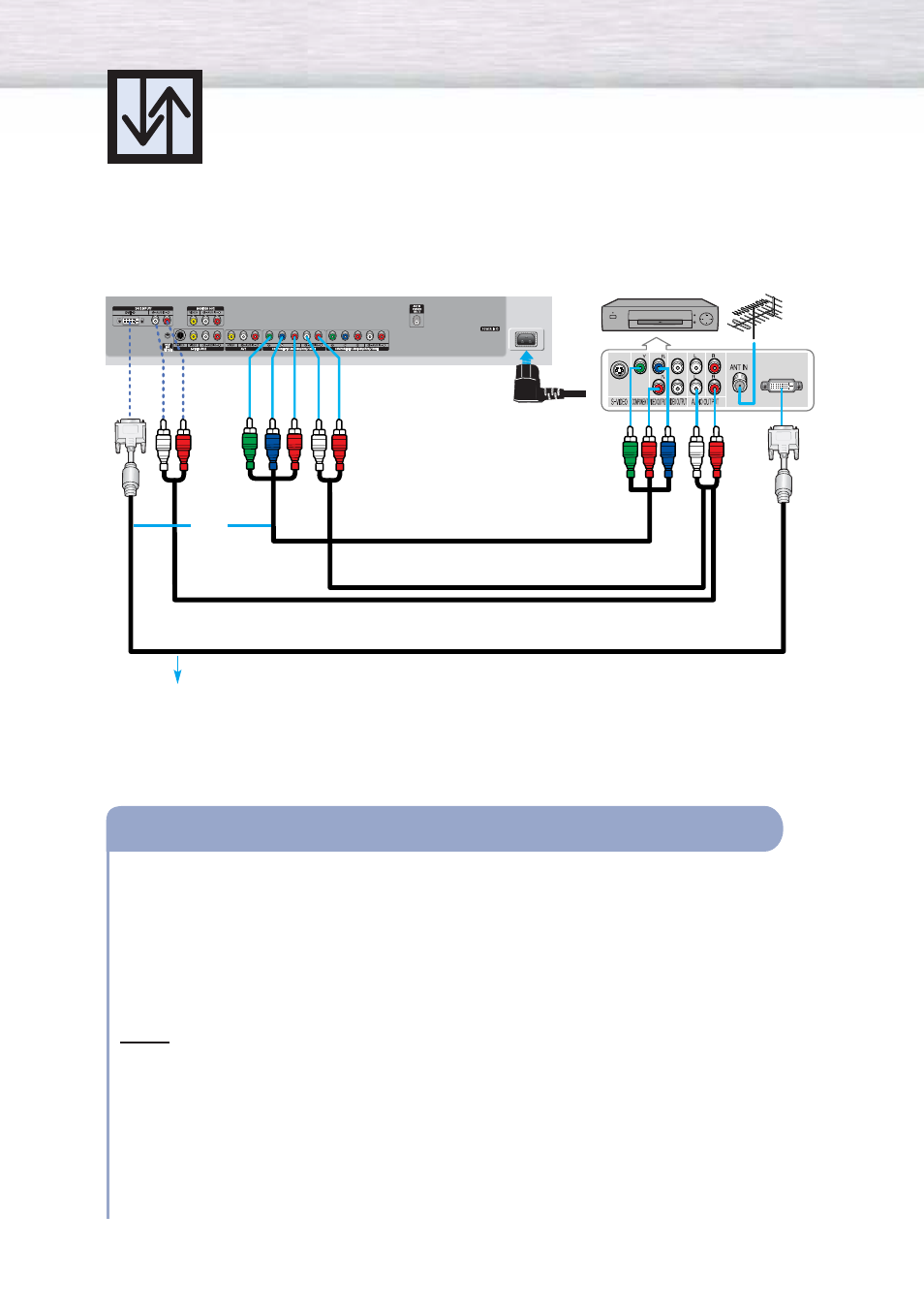

How to Connect
1
2
3
Use a DVI-D video cable. (sold separately)
Audio cable
Component cable
DVI cable
Power cord
PDP DTV Receiver
or
