7
Y
O U R
N
E W
T V

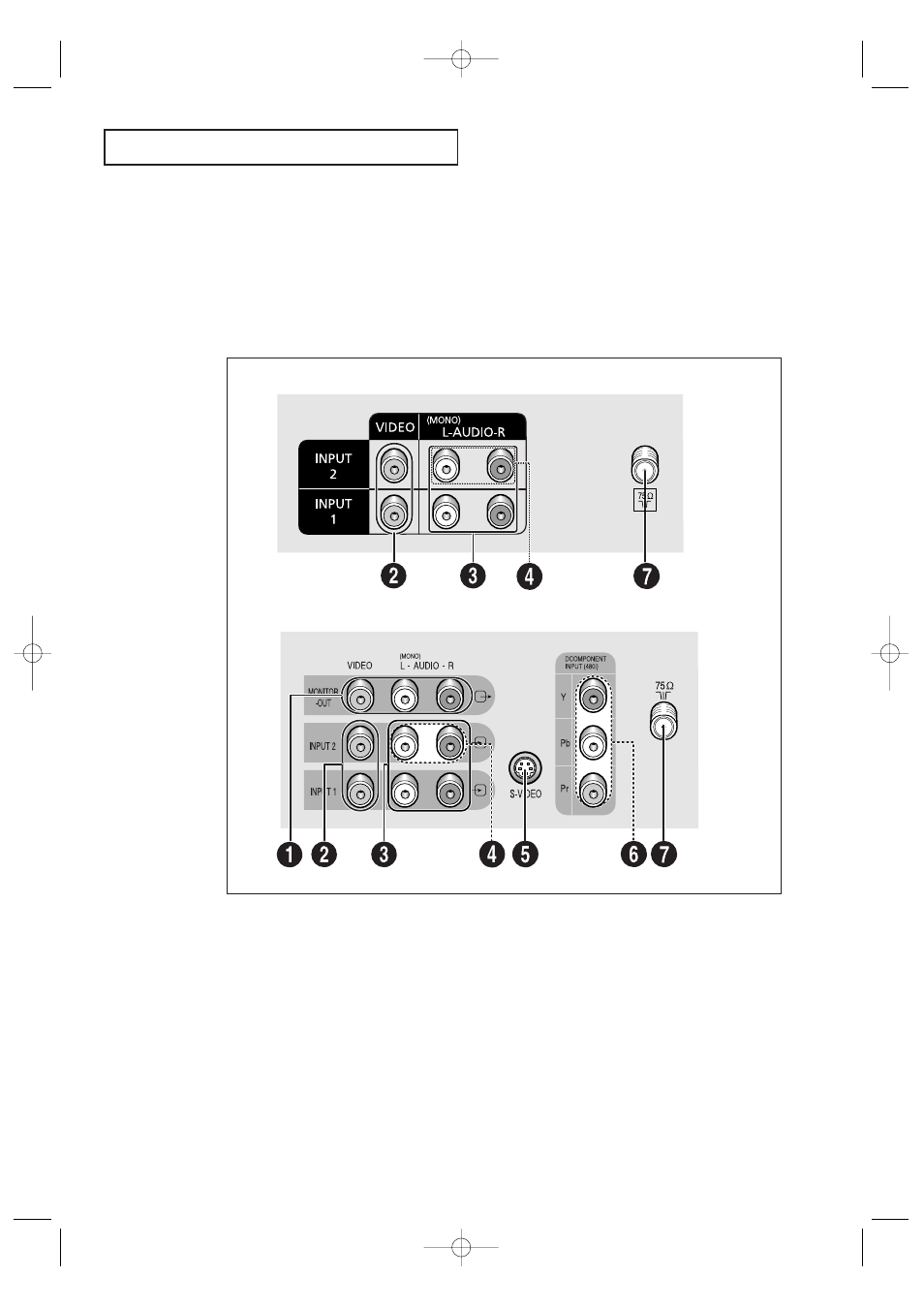

Rear Panel Jacks
Use the rear panel jacks to connect an A/V component that will be connected
continuously, such as a VCR or a DVD player.
Because there are two sets of input jacks, you can connect two different A/V
components (i.e., a VCR and a DVD, 2 VCRs, etc.)
For more information on connecting equipment, see pages 11-17.
ΠAUDIO-VIDEO MONITOR
OUTPUTS
These audio-video signals are identical to A/V sig-
nals being displayed on the big screen. (Typically
used as the input signals for a recording VCR.)
´ VIDEO INPUT
Video signals from VCRs, DVD players and similar
devices.
ˇ AUDIO INPUTS
Audio signals from VCRs, DVD players and similar
devices.
¨ DVD AUDIO INPUTS
(INPUT 2)
Use these jacks to connect the audio signals from a
DVD player when using the DVD video input jacks.
When not using the DVD jacks, these audio jacks
function as audio for Video 2 or S-VIDEO.
ˆ S-VIDEO INPUT
Connect to an S-VHS VCR or DVD player.
Ø DVD VIDEO INPUT
Connect video from a DVD player.
Note: Monitor Output doesn’t operate in the DVD
mode.
∏ VHF/UHF
Connect to an antenna or to a cable TV system.
TX-P2028
TX-P2030/TX-P2034/TX-P2036
