7

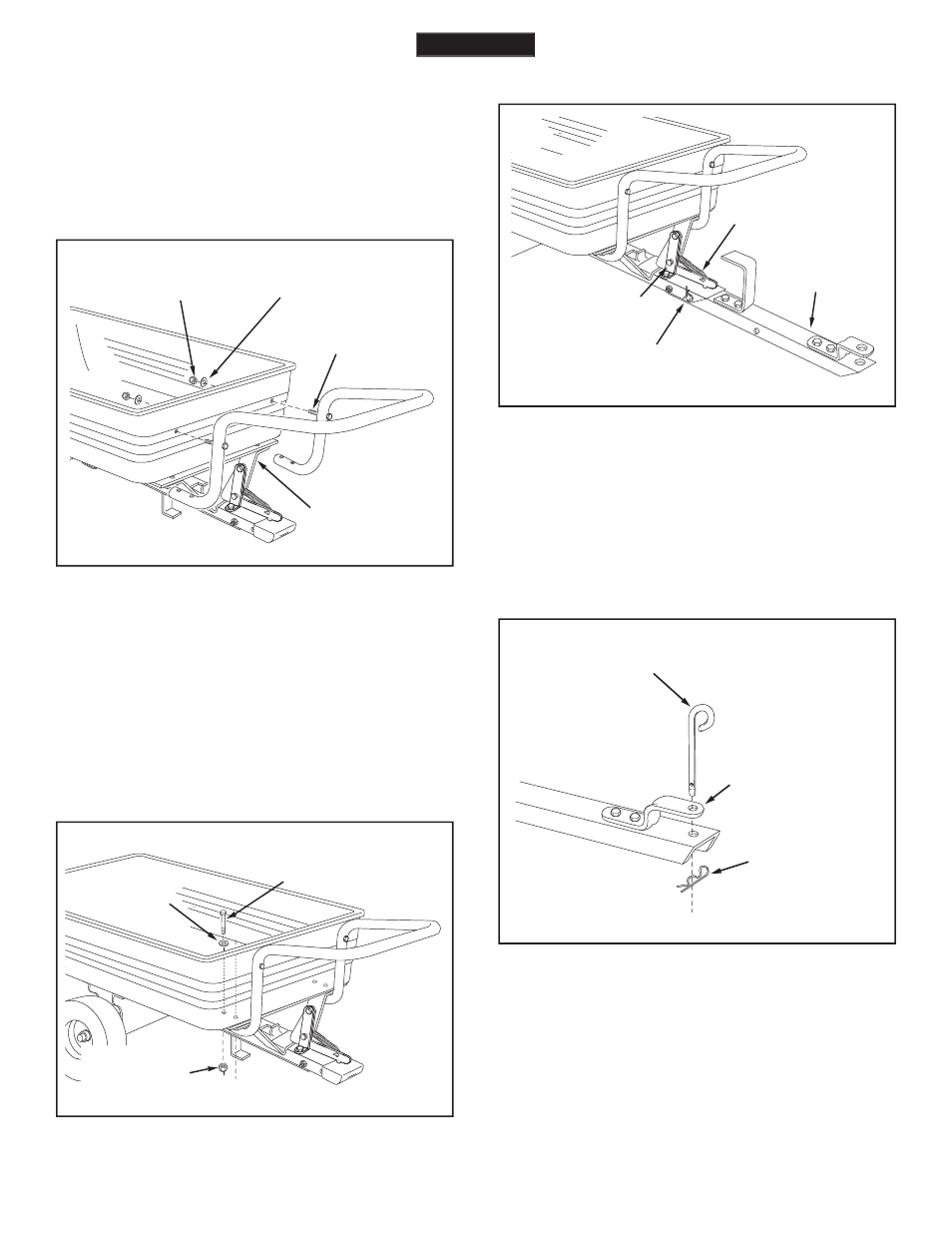

FIGURE 8
15. Insert two 1/4" x 1-3/4" hex bolts (D) through the handle
tube as shown in fi gure 8. Holding the bolts in place in
the handle, insert the bolts through the holes in the poly
tray, allowing the legs of the handle to slip beneath the
latch stand bracket. Secure the two bolts with two 1/4"
fl at washers (J) and 1/4" nylock nuts (K).
Do not tighten
yet. See fi gure 8.
FIGURE 9
16. Align the holes in the handle with the holes in the bottom
of the poly tray, the latch stand plate and the latch stand
bracket. Fasten together using four 1/4" x 1-3/4" hex
bolts (D), 1/4" fl at washers (J) and 1/4" nylock nuts (K)
as shown in fi gure 9.
Tighten.
17. At this time tighten all bolts which were left loose.
FIGURE 10
CART WITH TONGUE ARRANGED FOR TOWING
(D) 1/4" x 1-3/4"
HEX BOLT
(J) 1/4" FLAT
WASHER (K) 1/4"
NYLOCK NUT
LATCH STAND
BRACKET
(D) 1/4" x 1-3/4"
HEX BOLT
(J) 1/4" FLAT
WASHER
(K) 1/4"
NYLOCK NUT
FRONT
TONGUE
(G) 3/8" x 4"
CLEVIS PIN
(H) 3/8" x 1"
CLEVIS PIN
LATCH LOCK
FIGURE 11
18. Assemble the hitch pin (R) through the tongue and hitch
bracket and secure it with the 1/8" hairpin cotter (N).
See fi gure 11.
ENGLISH
HITCH
BRACKET
(N) 1/8" HAIRPIN
COTTER
(R) HITCH PIN
