Page 5
5
01
Getting Started
English

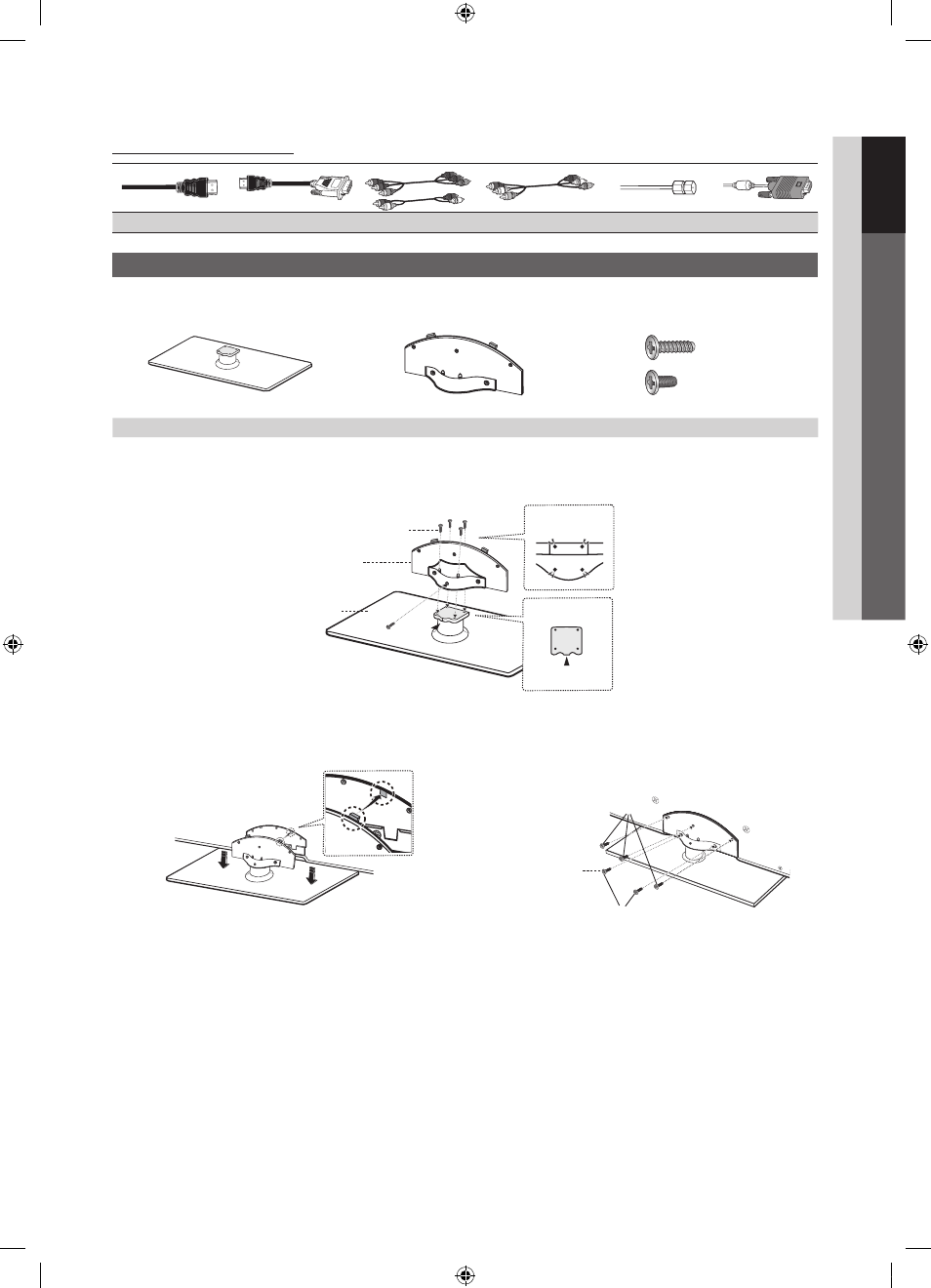

Install the Stand
See separate guide for installing the stand.
s
s
s
s
s
Stand (1EA)
Guide Stand (1EA)
Screws (10EA)
Follow the steps below to connect the TV to the stand.
1. Connect the Guide Stand to the Stand using five screws (M4 X L12) as shown.
s
s
s
s
s
s
2. With your TV upright, connect the TV to the Stand.
3. Fasten two screws (M4 X L8) at position 1, and then
fasten three screws (M4 X L8) at position 2.
✎
NOTE
x
Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
x
Make sure that at least two persons lift and move the LED TV.
x
Stand the product up and fasten the screws. If you fasten the screws with the LED TV placed down, it may lean to
one side.
s
s
s
s
s
Top view
Rear
Front
Rear
Guide Stand
Screws (M4 X L12)
Stand
5EA (M4 X L12)
5EA (M4 X L8)
Screws (M4 X L8)
1
s
s
s
s
s
2
Input Cables (Sold Separately)
HDMI
HDMI-DVI
Component
Composite (AV)
Coaxial (RF)
VGA
