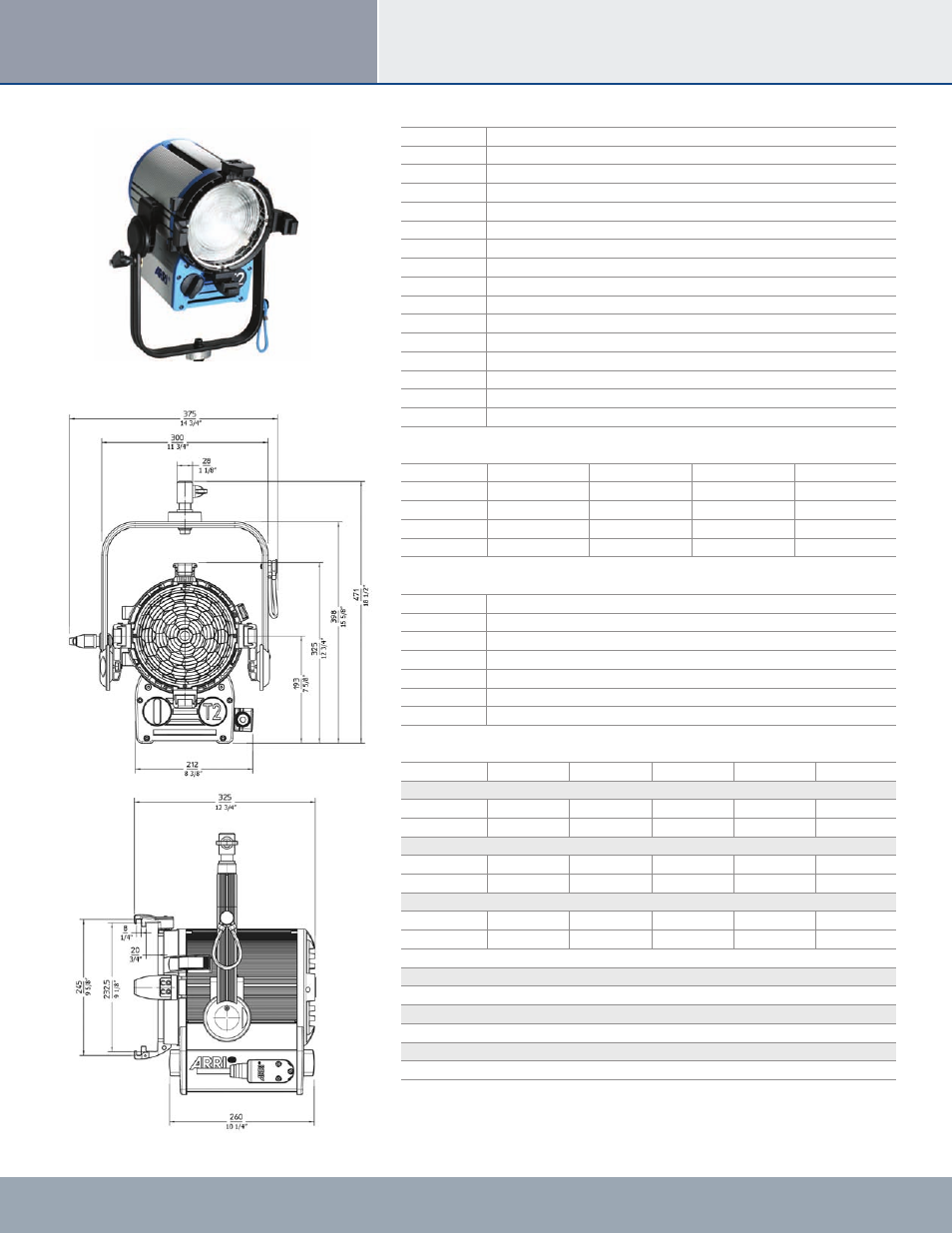

ARRI Lamphead ARRI TRUE BLUE - Manual (Page 8)

2000W Fresnel
T2
8
Cat. No. Description
551200 T2 2000W Fresnel, Stand Model
551201 T2 2000W Fresnel, Hanging Model
551202 T2 2000W Fresnel, Stand Model, Black
551203 T2 2000W Fresnel, Hanging Model, Black
551205 T2 2000W Fresnel, Pole Operated
551210 Four Leaf Barndoor
551215 Eight Leaf Barndoor
531220 Filter Frame
531230 Snoot
531250 9” Full Single Scrim
531251 9” Half Single Scrim
531252 9” Full Double Scrim
531253 9” Half Double Scrim
571714 Scrim Bag
853276 Safety Cable
531510 Operating Pole for pole-op fixtures
Lamps
Code CYX CXZ CYV CP41
Watts 2000 1500 1000 2000
Volts 120 120 120 230
Color Temp (K) 3200 3200 3200 3200
Approx. Life (hrs) 300 300 200 400
Specifications
Weight* 18 lbs. (8.2 kg)
Cable 23.0 ft. (7.0 m) cable with inline switch; Hanging model with 3.0 ft. (1.0 m) cable w/o switch
Lens Diameter 6.9” (175 mm) low expansion borosilicate Fresnel lens
Reflector Spherical specular high purity aluminum
Lampholder G22/38
Mounting 1 1/8” (28 mm) stand; Hanging model with pipe clamp
Certification NRTL-US-C; CE; IP23
Photometric Data with CYX 2000W Lamp
Distance 15 ft. (4.6 m) 20 ft. (6.1 m) 25 ft. (7.6 m) 30 ft. (9.1 m) 40 ft. (12.2 m)
Spot Focus Beam Angle 13°
Footcandles 930 523 335 232 131
Beam Diameter 3.4 ft. (1.0 m) 4.6 ft. (1.4 m) 5.7 ft. (1.7 m) 6.8 ft. (2.1 m) 9.1 ft. (2.8 m)
Medium Focus Beam Angle 30°
Footcandles 321 181 116 80 45
Beam Diameter 8.0 ft. (2.4 m) 10.7 ft. (3.3 m) 13.4 ft. (4.1 m) 16.1 ft. (4.9 m) 21.4 ft. (6.5 m)
Flood Focus Beam Angle 58°
Footcandles 135 76 49 34 19
Beam Diameter 16.6 ft. (5.1 m) 22.2 ft. (6.8 m) 27.7 ft. (8.4 m) 33.3 ft. (10.1 m) 44.3 ft. (13.5 m)
Spot Performance at any distance:
Footcandles (or lux) = 209,175 ÷ Distance 2 Beam Diameter = Distance x 0.23
Medium Performance at any distance:
Footcandles (or lux) = 72,200 ÷ Distance 2 Beam Diameter = Distance x 0.54
Flood Performance at any distance:
Footcandles (or lux) = 30,425 ÷ Distance 2 Beam Diameter = Distance x 1.11
*Stand Model
