20
Actiontec Internet Phone Wizard User Manual
5. Insert the other end of the supplied phone cable in the “Phone” port of the
DSL filter.
6. Get the phone cable from the telephone and insert one end in the “Phone”
port on the rear panel of the Internet Phone Wizard.

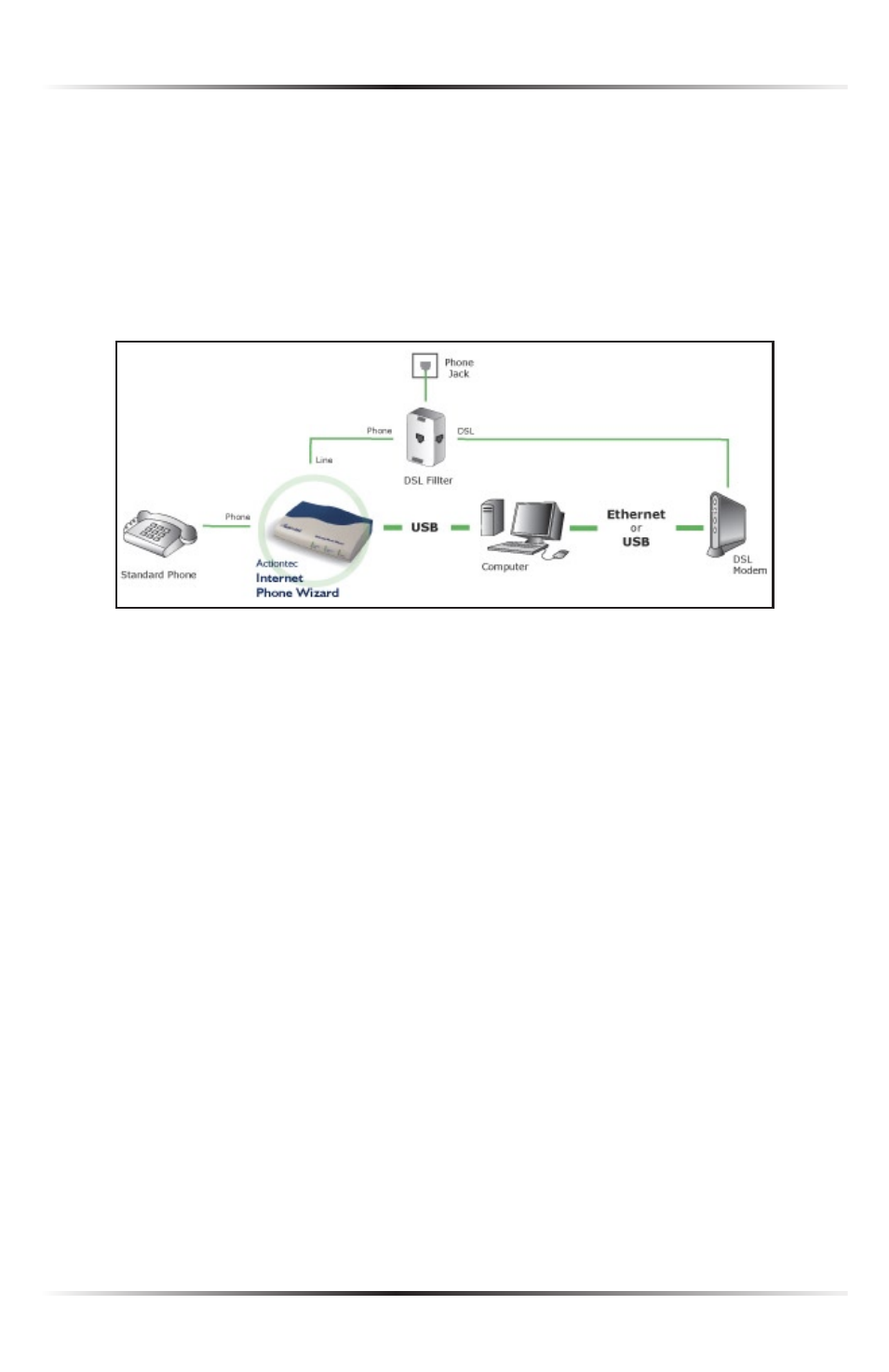

7. Connect the other end of the phone cable to the telephone. The components
should be connected similarly to the figure below:
☞
Note: If the Internet Phone Wizard needs to be disconnected from
the computer for any reason, it must be reconnected to the same
USB port. Connecting the Internet Phone Wizard to a different
USB port may cause problems.
The Internet Phone Wizard is connected in Dual Line mode. Next, go to chapter 4,
“Installing the Internet Phone Wizard Software.”
