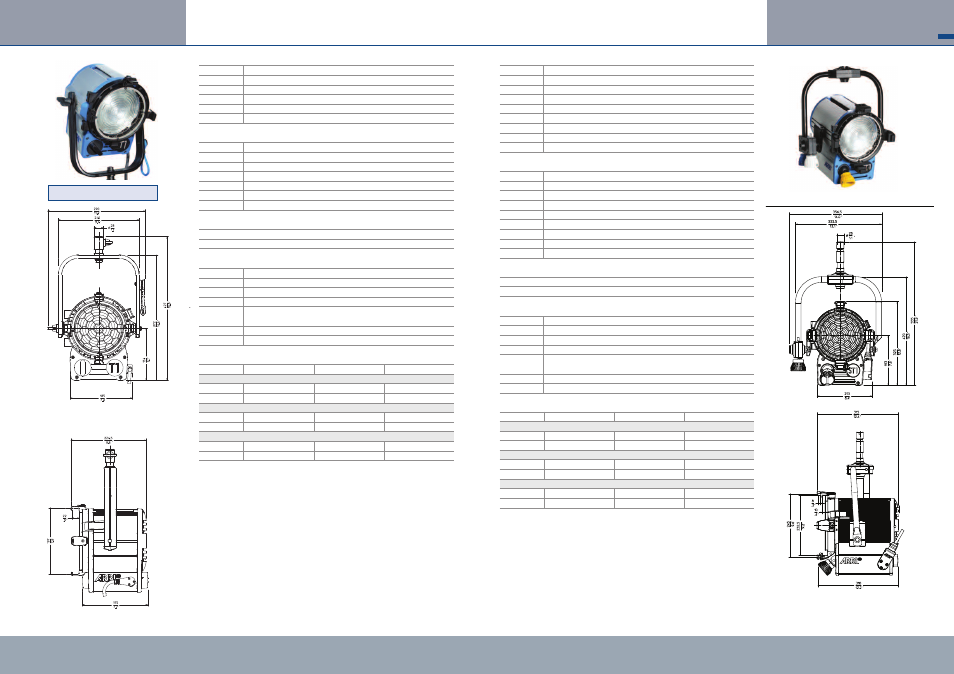

7
ARRI
| TRUE BLUE
6
Part No.
Description
L3.39610.B
T1 1000W Location Fresnel Lamphead, manual, blue/silver
L3.39615.B
T1 1000W Location Fresnel Lamphead, manual, black
L3.39610.I
T1 1000W Location Fresnel Lamphead, pole operated, blue/silver
L3.39610.D
T1 1000W Location Fresnel Lamphead, manual, blue/silver with Schuko plug
L3.79615.D
T1 1000W Location Fresnel Lamphead, manual, black with Schuko plug
All the above are supplied with four leaf barndoor and filter frame.
Accessories
L2.39670.0
Four Leaf Barndoor
L2.39700.0
Eight Leaf Barndoor
L2.79690.0
Filter Frame
L2.79680.0
Variable Snoot
L2.79660.0
Set of 4 Scrims (without bag)
L2.88913.1
Scrim bag
L2.76977.0
Large Kit Stand
Lamps
CP40
1000W
230V
G22 Monoplane
CP71
1000W
230V
G22 Biplane
Specifications
Weight
4.6kg manual, 6.5kg pole op
Cable
3m manual, 1.5m pole op
Lens Diameter
150 mm (5.9”) low expansion borosilicate Fresnel lens
Reflector
Spherical specular high purity aluminium
Mounting
Combination mount for 16mm (5/8”) or 28mm (1 1/8”) on manual versions,
28mm (1 1/8”) spigot on pole op versions
Protection Class
IP23
Certification
NRTL-US-C, CE, TÜV GS, CB
Photometric Data with CP71 Lamp
Throw (m):
4
6
8
Spot: 10°
133450cd
Output (lux)
8341
3707
2085
Diameter (m)
0.7
1.0
1.4
Medium: 30°
38700cd
Output (lux)
2419
1075
605
Diameter (m)
2.1
3.2
4.3
Flood: 54°
20275cd
Output (lux)
1267
563
317
Diameter (m)
4.1
6.1
8.2
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
For light output at any distance visit arri.com and click on photometric calculator.
Part No.
Description
L3.40500.B
ST1 1000W Studio Fresnel Lamphead, manual, blue/silver
L3.40505.B
ST1 1000W Studio Fresnel Lamphead, manual, black
L3.40500.I
ST1 1000W Studio Fresnel Lamphead, pole operated, blue/silver
L3.40505.I
ST1 1000W Studio Fresnel Lamphead, pole operated, black
L3.40500.D
ST1 1000W Studio Fresnel Lamphead, manual, blue/silver with Schuko plug
L3.40505.D
ST1 1000W Studio Fresnel Lamphead, manual, black with Schuko plug
L3.40500.K
ST1 1000W Studio Fresnel Lamphead, pole operated, blue/silver with Schuko plug
L3.40505.K
ST1 1000W Studio Fresnel Lamphead, pole operated, black with Schuko plug
All the above are supplied with four leaf barndoor and filter frame.
Accessories
L2.39870.0
Four Leaf Barndoor
L2.39900.0
Eight Leaf Barndoor
L2.79890.0
Filter Frame
L2.79880.0
Variable Snoot
L2.79860.0
Set of 4 Scrims (without bag)
L2.88914.1
Scrim Bag
L2.76990.0
Safety Cable
L2.89079.0
4m Operating Pole for pole-op fixtures
L2.88118.0
Barrel Clamp
Lamps
CP40
1000W
230V
G22 Monoplane
CP71
1000W
230V
G22 Biplane
Specifications
Weight
7kg manual, 8.5kg pole op
Cable
1.5m
Lens Diameter
175 mm (6.9”) low expansion borosilicate Fresnel lens
Reflector
Spherical specular high purity aluminium
Mounting
Combination mount for 16mm (5/8”) or 28mm (1 1/8”) on manual versions,
28mm (1 1/8”) spigot on pole op versions
Protection Class
IP23
Certification
NRTL-US-C, CE, TÜV GS, CB
Photometric Data with CP71 Lamp
Throw (m):
4
6
8
Spot 10°
155225cd
Output (lux)
9702
4312
2425
Diameter (m)
0.7
1.0
1.4
Medium 30°
36325cd
Output (lux)
2270
1009
568
Diameter (m)
2.1
3.2
4.3
Flood 58°
16550cd
Output (lux)
1034
460
259
Diameter (m)
4.4
6.7
8.9
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
For light output at any distance visit arri.com and click on photometric calculator.
1000W Location Fresnel
ST1
1000W Studio Fresnel
T1
AVAILABLE SEPTEMBER 2008
